4OM-1603 1-49 3. Maintenance Spots : Chap.1 1007-003 3.2.12 Control Box Section Screws Filter (1 location) Every 3 Months Cleaning Required T ime: 4 minutes (1) Remove the screws (3 locations) fixing the dust filter and …
4OM-1603
1-48
3. Maintenance Spots : Chap.1
1012-001

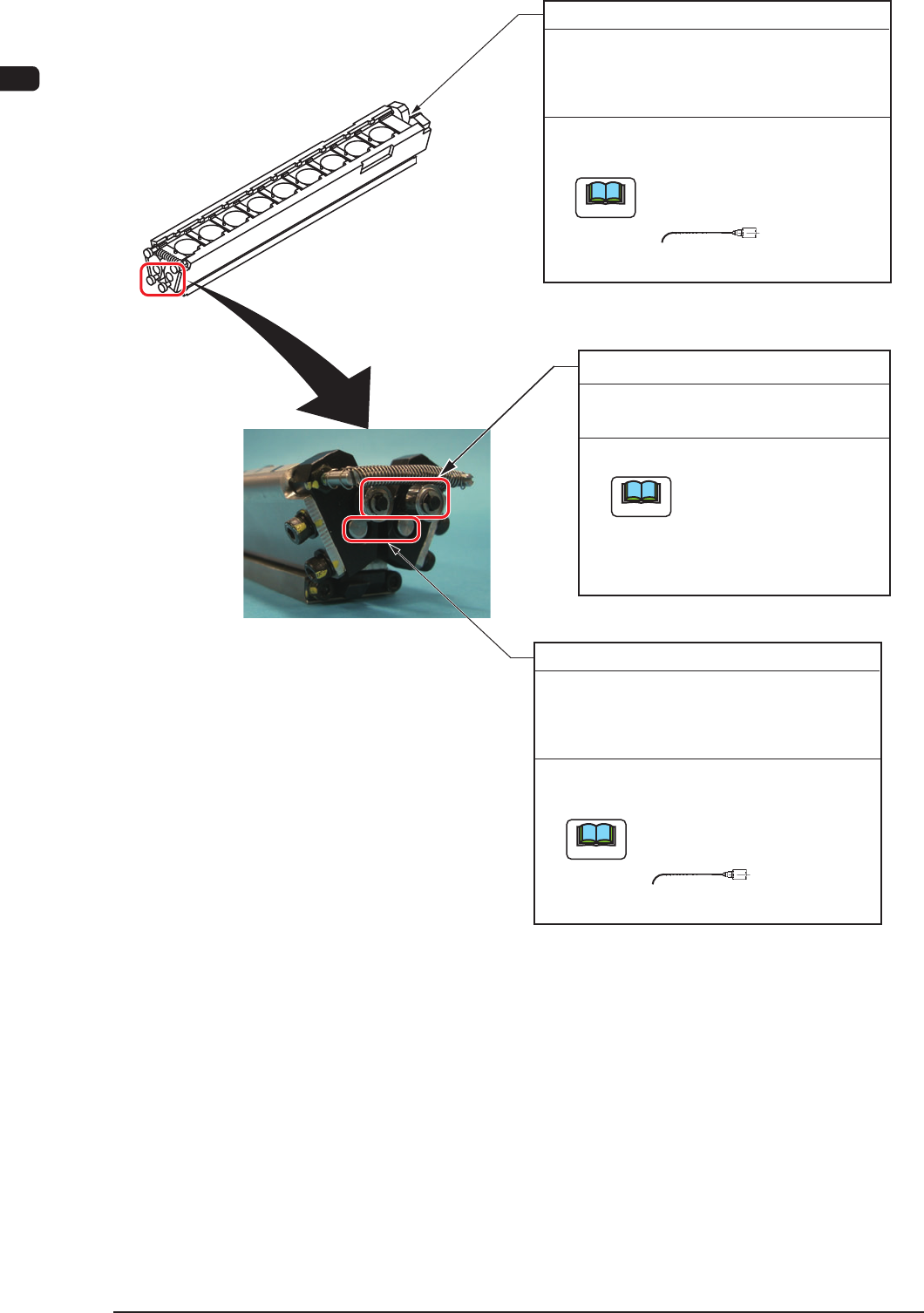

Cam Follower
Every Month Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Use No. 19 (brown) nozzle.
No.19
Note
Take ample care not to leave
the waste threads after the
old grease is wiped off.
Note
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
F4A36-2
4OM-1603
1-49
3. Maintenance Spots : Chap.1
1007-003

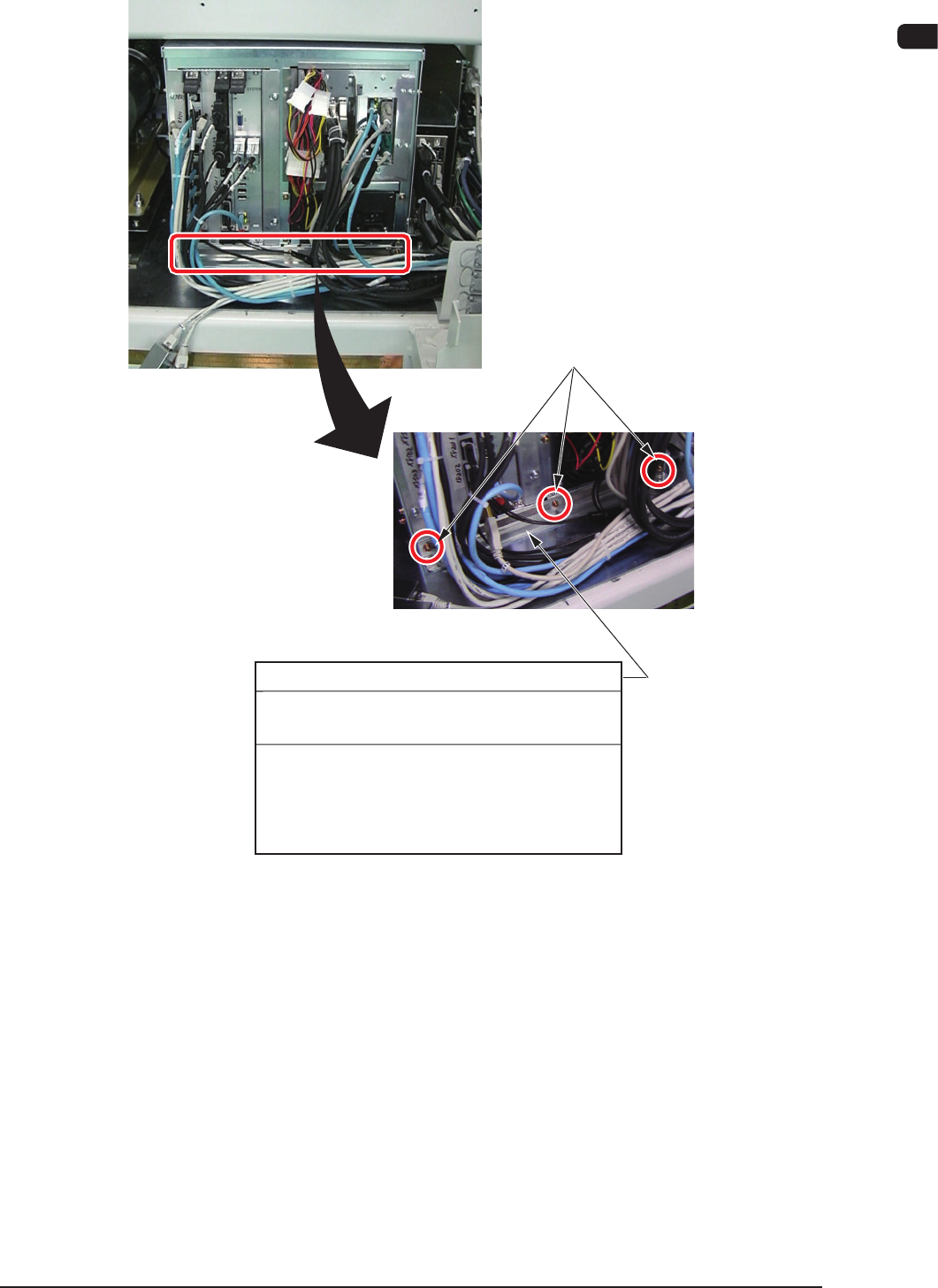

3.2.12 Control Box Section
Screws
Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the screws (3 locations) fixing the
dust filter and remove the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A37
4OM-1603
1-50
3. Maintenance Spots : Chap.1
3.2.13 Fans Section
Every 3 Months Cleaning
Required Time: 10 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.
Ventilating Fan (3 locations)
F4A38
Fan
Every 3 Months Cleaning
Required Time: 10 minutes
Air-Intake Fan (Filter)
Remove the screws (3 locations) fixing the fan
guard and remove the fan guard. Then, clean any
debris or dust in the filter using the vacuum
cleaner.
F4A39
1007-004
