1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
SpeciedGreases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
•
MOLYNOC GREASE AP1 (NIPPON OIL CORPORATION)
•
BARRIERTA IEL/V (NOK Klueber CO.,Ltd.)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil
will decrease.
Same Types of Lubricants
•
Grease Types equivalent to DAPHNE EPONEX GREASE No. 1 (IDEMITSU
KOSAN)
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease 1 NIPPON OIL CORPORATION
Jomo Lisonix Grease No. 1 JAPAN ENERGY CORPORATION
Dynamax No. 1 COSMO OIL LUBRICANTS
Lithtan 1 ESSO OIL
MP Grease No. 1 KYGNUS
Gemico MP-1 Tonen General Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
T4A1
•
Grease Types equivalent to MOLYNOC GREASE AP1 (NIPPON OIL
CORPORATION)
Grease Names Makers
DAPHINE Grease M No. 1 Idemitsu Kosan Co., Ltd.
Jomo Lisonix Grease M No. 1 JAPAN ENERGY CORPORATION
COSMO MOLYBDEN GREASE
No. 1
COSMO OIL LUBRICANTS
BEACON Q2 ESSO OIL
Gemico MD2 Tonen General Sekiyu K.K
M5 GREASE 1 KYGNUS
T4A2
0908-002
4OM-1603
1-6
1. Outline of Maintenance : Chap.1
Speciedlubricationtools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.

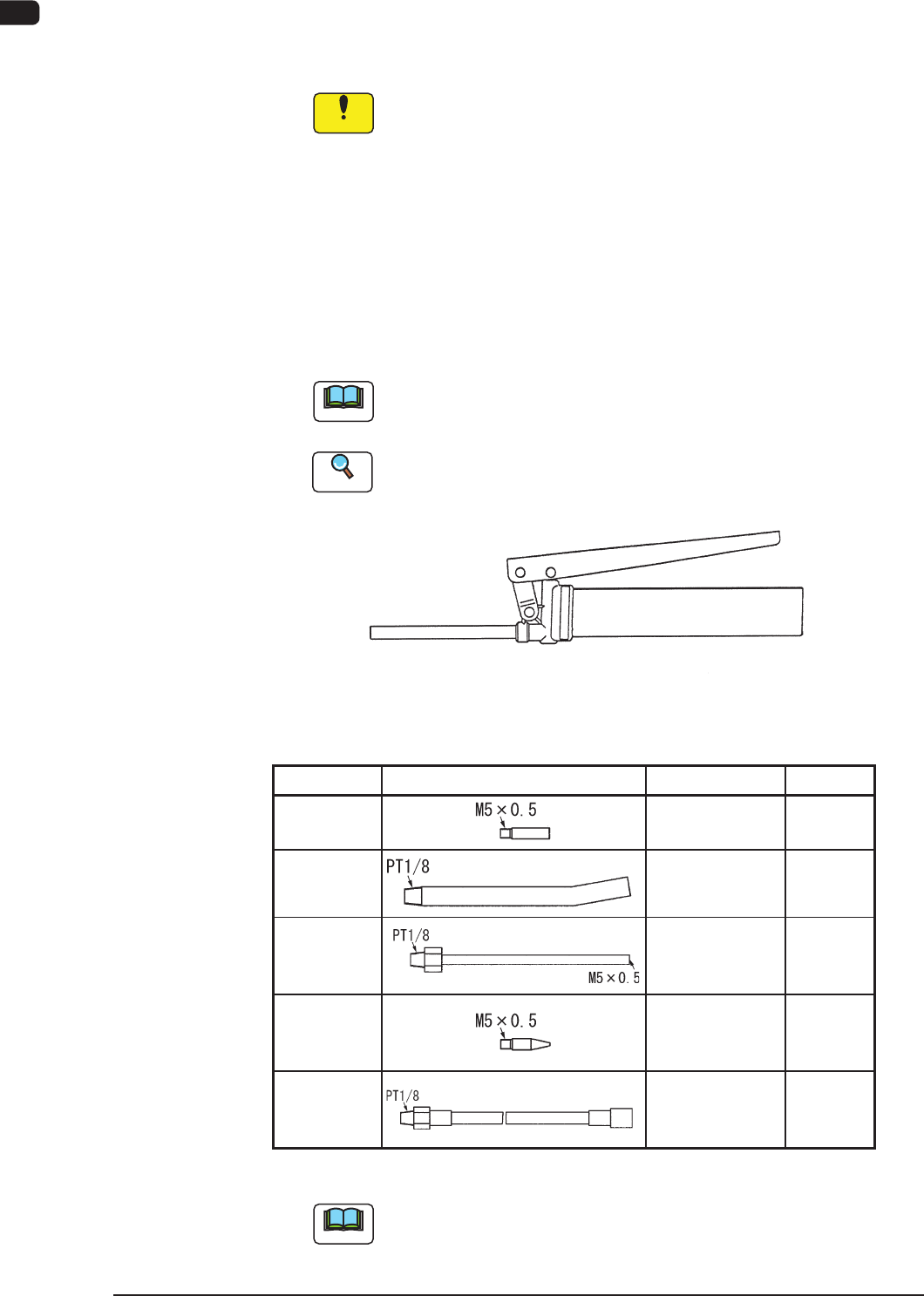

(3) Hand Grease Gun
Standard
：
KH-120
Part No.
：
228A022
Maker
：
Yamada Corporation
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
F4A4
•
Attachment for Hand Grease Gun KH-120
Standard Shape Part No. Remarks
Type N
216M0440 THK
Type H
216M0439 THK
Type U
216M0438 THK
Type P
0920H11Q THK
SPK-3C
228A0021
Yamada
Corporation
T4A4
Note
It is not attached to the machine. Purchase it separately if necessary.
1007-004
4OM-1603
1-7
1. Outline of Maintenance : Chap.1

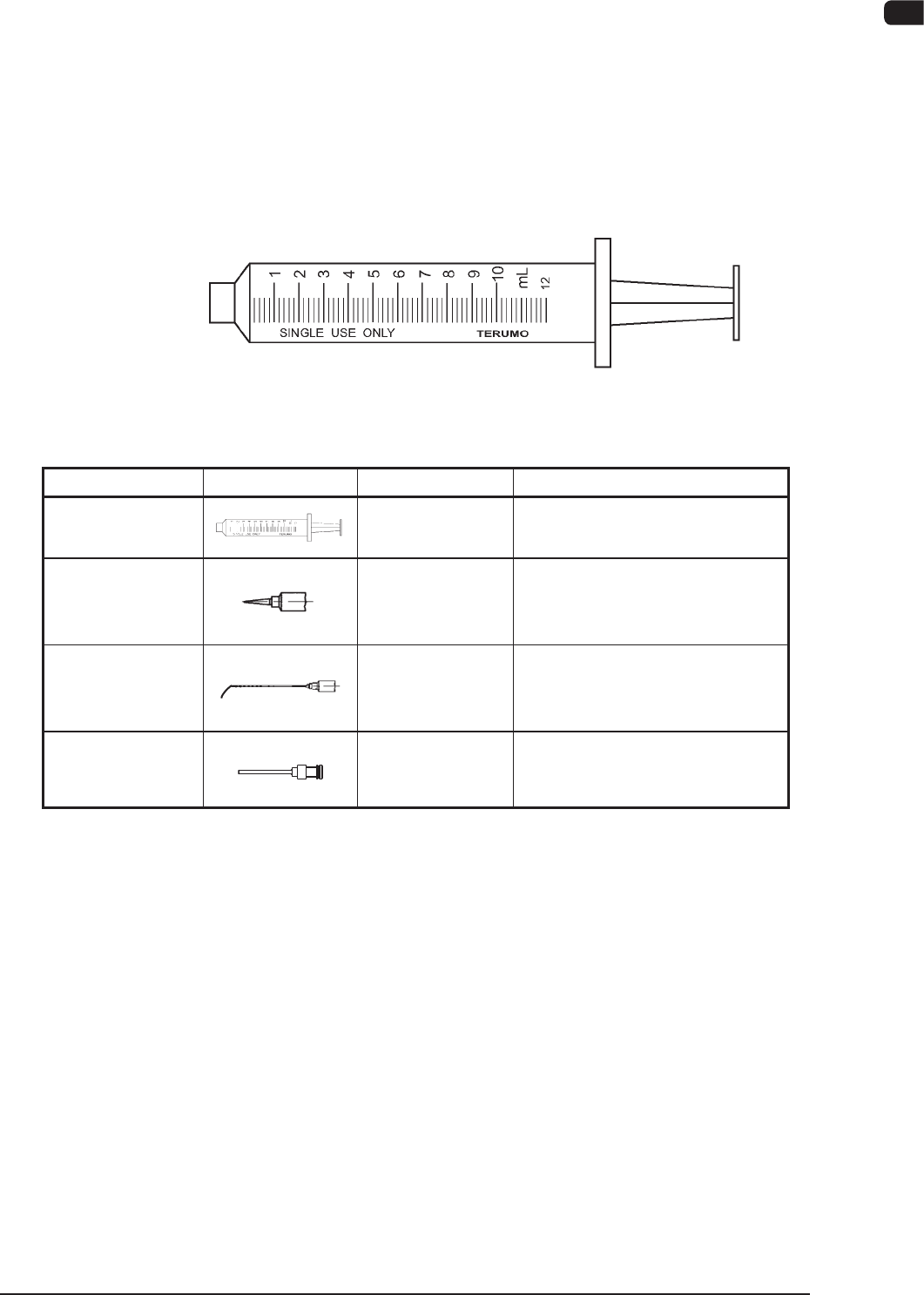

(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
F4A5
Standard Shape Part No. Remarks
Syringe
228A0171
Maker : TERUMO
10ml SS-10-LZ
Nozzle No.18
(Color : Green)
216A0451
Maker : SAN-EI TECH
Inside Diameter :
f
0.84
Tapered Nozzle #5118TT-B
Nozzle No.19
(Color : Brown)
0916D108
Maker : NIPRO
Inside Diameter :
f
0.79
Length : 65 mm Flat End
Nozzle No.49
0916D712 Length : 145 mm
T4A5
