4OM-1603 1-38 3. Maintenance Spots : Chap.1 1007-003 3.2.8 X/Y Beam Section X-Axis Linear Guides (2 locations) Every Day Inspection Required T ime: 1 minute Check visually for any dropped foreign substance, etc. X-Axis L…
4OM-1603
1-37
3. Maintenance Spots : Chap.1
1012-004
NOTICE
When the air-blowing is to be performed to the nozzle,
make sure to start it from the nozzle end section.
If the air-blowing is started from the clamp claw section, the
clamp claw might be damaged.

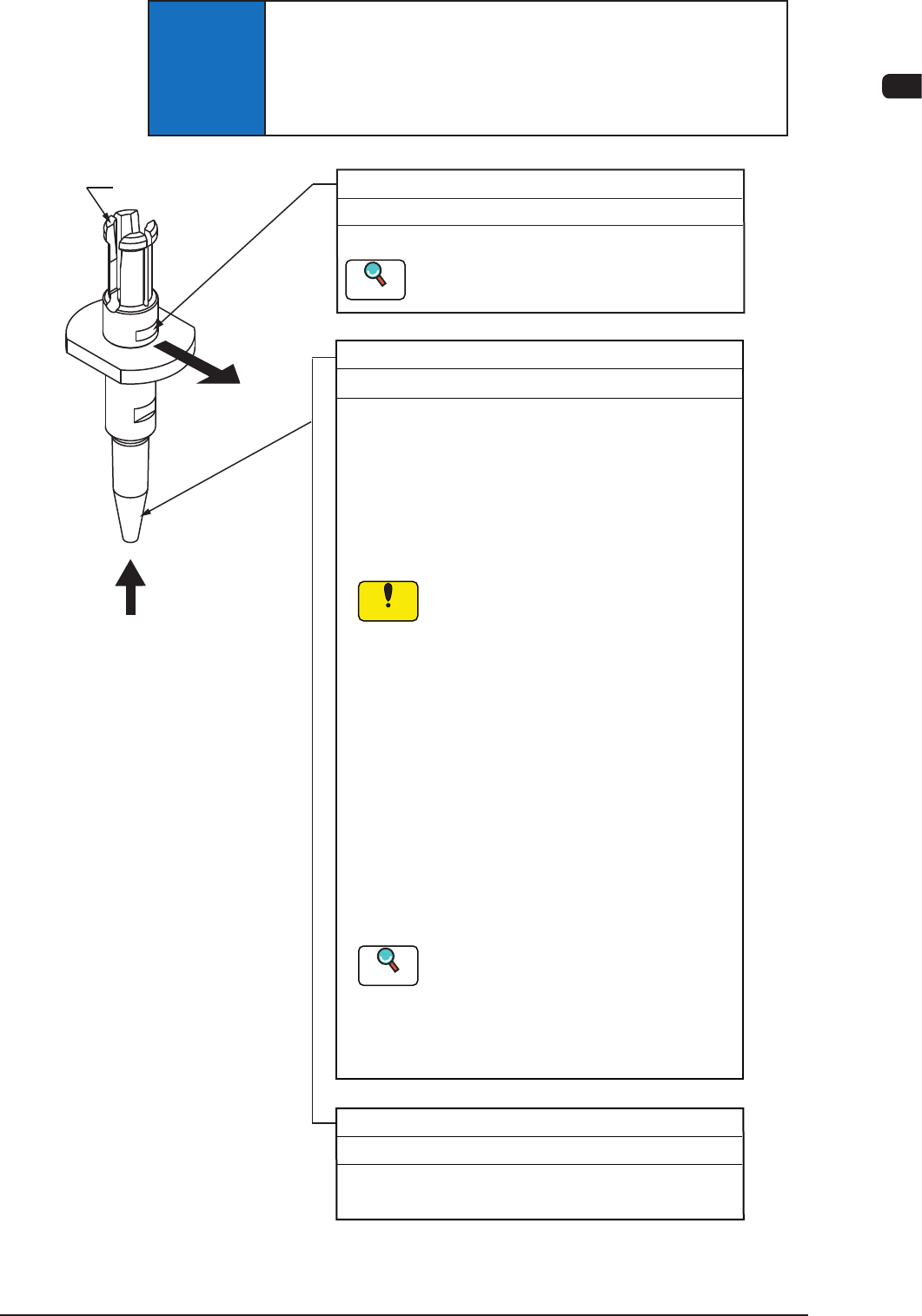

Vacuum Nozzle
Every 3 Months Inspection
Check the condition of the vacuum nozzle. When the
nozzle end is worn out, replace it with a new one.
Vacuum Nozzle
Every Week Cleaning
t Clean the tapered area of the nozzle with a lens
cleaning cloth.
t Store the nozzle in the nozzle stocker (housing)
through window navigations and take out the nozzle
stocker (housing). After that, blow air to the stocker
(housing) to remove dirt and dust.
(a) Do not take out a nozzle from the
head by hand. Otherwise, the
nozzle does not conform to the
nozzle data.
(b) When the nozzle is extremely dirty
or the vacuum suction force
weakens, causing the nozzle to
improperly pick or place components,
it is required to clean the nozzle in the
water with an ultrasonic cleaner.
When the ultrasonic cleaning
operation is to be performed
underwater, remove the nozzle filter.
Do not use anything other than water
for the cleaning.
(a) Refer to "4.1 Cleaning of Vacuum
Nozzles" in "Chapter 1" for details.
(b) Refer to "5. "Nozzle Change" Window"
in "Chapter 6 (Vol. 2)" for the procedure
of nozzle storage.
Notice
Reference
Air Blowing from the Tip
Clamp Claw
Nozzle Filter
Every Week Change
Change the nozzle filter using the filter removing jig.
Refer to "4.2 Nozzle Filter Change" in
"Chapter 1" for details
Reference
F4A27
4OM-1603
1-38
3. Maintenance Spots : Chap.1
1007-003
3.2.8 X/Y Beam Section
X-Axis Linear Guides (2 locations)
Every Day Inspection
Required Time: 1 minute
Check visually for any dropped foreign
substance, etc.
X-Axis Linear Guides (4 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a rag and supply new
grease to the grease nipples with a hand grease
gun.
Take ample care not to leave
any waste threads after cleaning.
Grease should be applied every 3 months after
the initial month.
Notice
F4A28
4OM-1603
1-39
3. Maintenance Spots : Chap.1
1007-003
Y-Axis Linear Guides (2 locations)
Every Day Inspection
Required Time: 1 minute
Check visually for any dropped foreign
substance, etc.
Y-Axis Linear Guides (8 locations)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with a rag and supply new
grease to the grease nipples with a hand grease
gun.
Take ample care not to leave
any waste threads after cleaning.
Grease should be applied every 3 months after
the initial month.
Notice
F4A29
