4.2 Nozzle Filter Change

4.2.1 Nozzle Filter Removal Procedure

Push out the nozzle lter using the lter removal jig as shown in the following

gure.

Filter Removing Jig

Vacuum Nozzle

Push

Pushing out the nozzle filter.

F4A39-3

4OM-1603

1-57

4. Maintenance Method : Chap.1

1003-001

4.2.2 Nozzle Filter Insertion Procedure

•

For High-Speed Nozzle

Procedure

(1) Set the nozzle lter in the hole section.

Hole Section

Nozzle Filter

F4A39-4

(2) Insert the lter holding block into the opening section of the lter set.

Filter Holding Block

F4A39-5

4OM-1603

1-58

4. Maintenance Method : Chap.1

1012-003

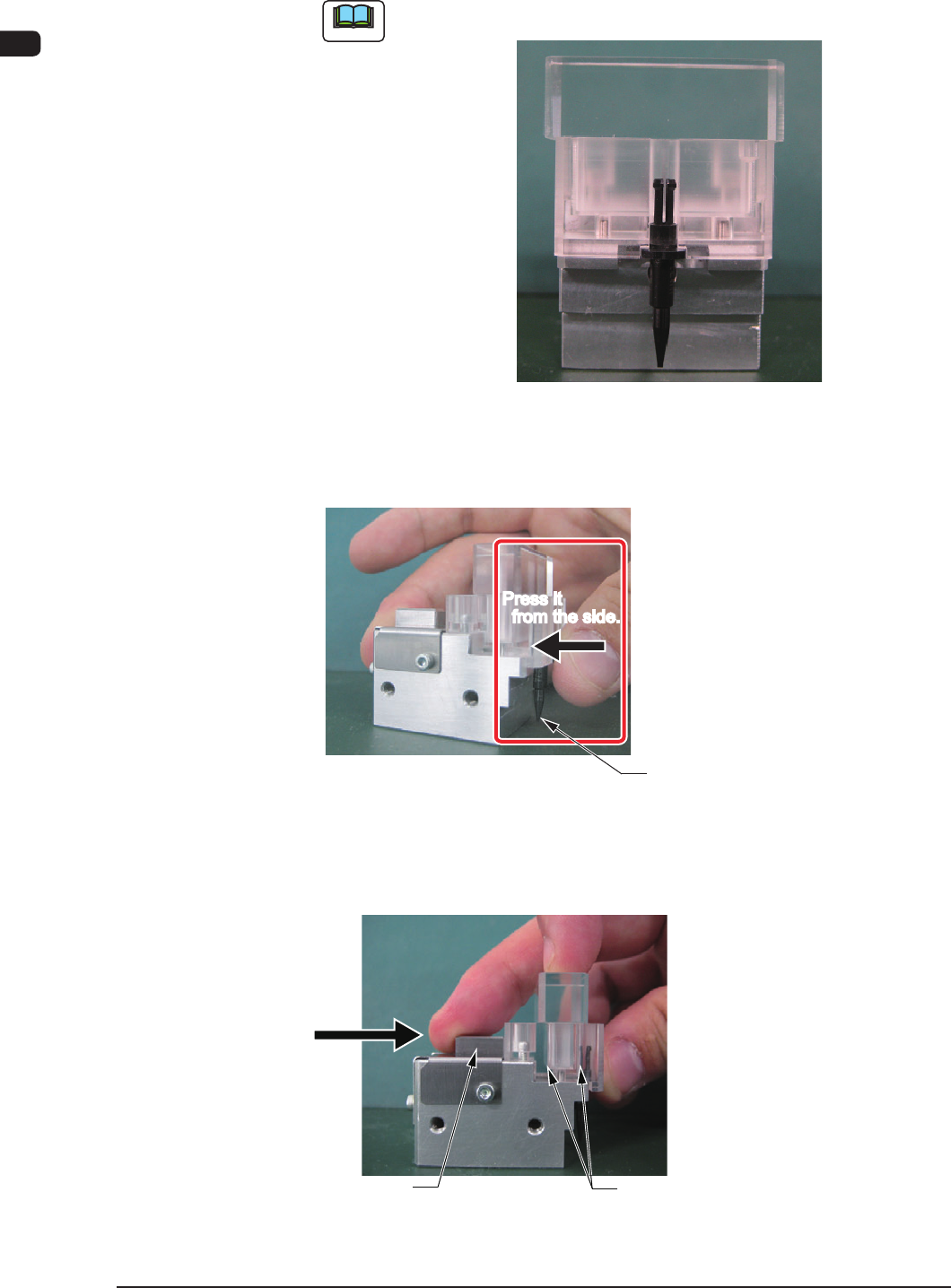

(3) Orient the nozzle lter opening section to the lter insertion jig and insert the

nozzle into the guide section.

Note

Pay attention to the direction of the nozzle lter opening section.

F4A39-6

(4) Fix the nozzle by holding it from the side with your nger so that the nozzle

is not inclined.

Nozzle

Press it

from the side.

F4A39-7

(5) Push the sliding section to the main machine acrylic block end face and

insert the nozzle lter.

Acrylic Block End Face

Sliding Section

Push

F4A39-8
