4OM-1603
2-20
2. Management Information : Chap.2
1012-005
Management
Information Code
Display Area A (The outline of the Management Information)
Display Area B (The details of the Management Information)
0d0f06 Height Teaching
There is no place for Glass Jig in the Head, so that could not teach the height of
Glass Jig.
0d1001 Stop Command
Interlock is detected. Please retry to execute after removing the factor.
0d1101 Flux dispensing unit squeegee error detect
Pleaseputdownsqueegeenotto
separatefromuxdispensingunit.
0d1201 Flux dispensing unit motor warning detect
Pleasetakeout/inuxdispensingand
thenrestarttorun.
0d1301 Uninstalled Flux dispensing unit
Pleasesetuxdispensingunitto
useinpatternprogramdata.
T4B1
4OM-1603
2-21
3. Machine Information : Chap.2
3. Machine Information

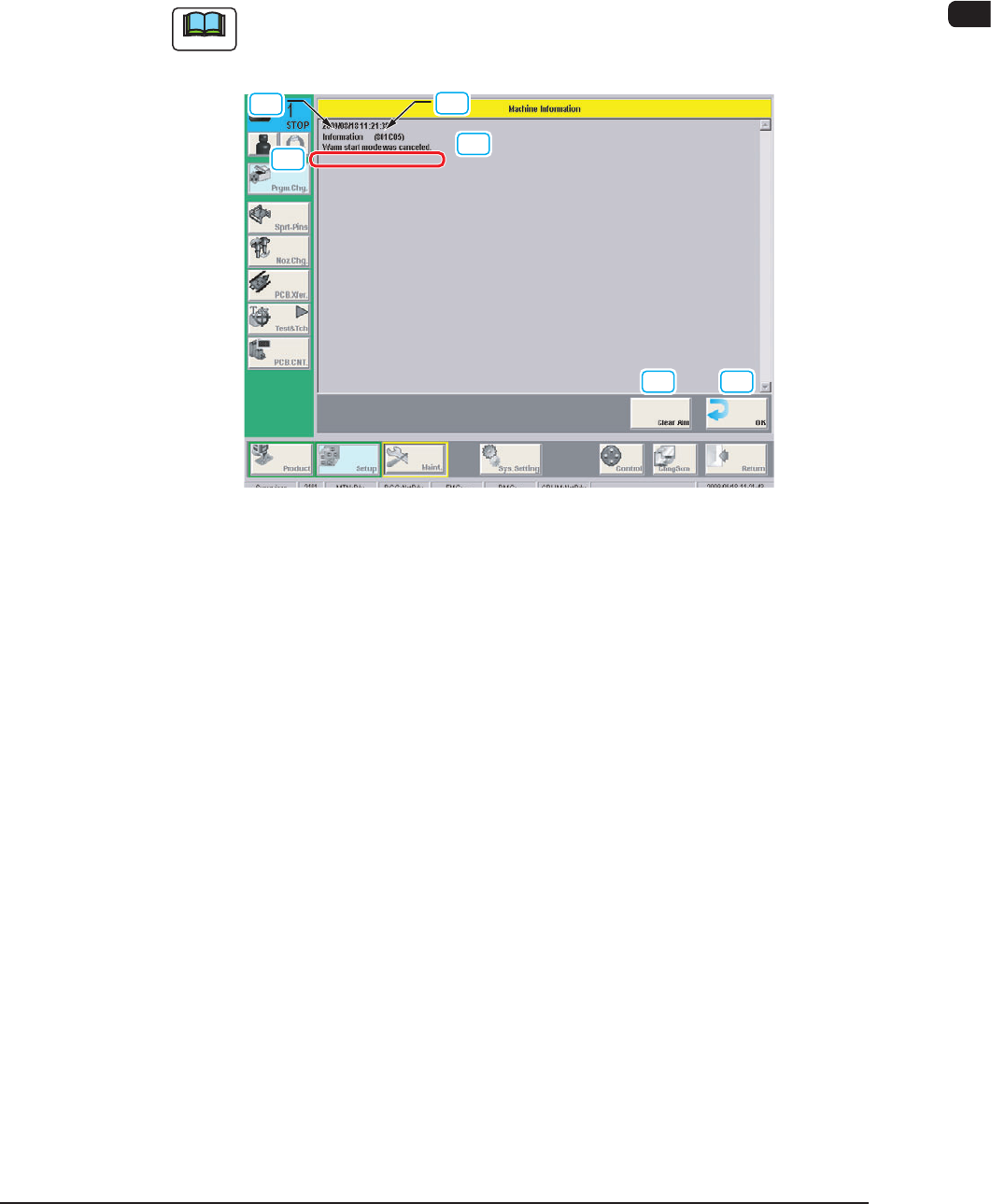

3.1 Machine Information Window
In this window, various machine information items are displayed during the
machine operation.
Note
The machine is not stopped with this indication.
[1]
[4]
[3]
[2]
[5] [6]
F4B3
[1] Machine Information Code
The machine information code is described in this text box.
[2] Display Area A
The outline of the machine information is displayed in this area.
[3] Display Area B
The details of the machine information are displayed in this area.
[4] Display Area C
The check procedure for the machine information item is displayed in this
area.
[5] [Clear Alm] Button
When this button is pressed, only the alarm buzzer is cancelled.
[6] [OK] Button
When this button is pressed, the "Machine Information" window is closed.
1012-005
4OM-1603
2-22
3. Machine Information : Chap.2
3.2 Machine Information List
Machine
Information Code
Display Area A (The outline of the Machine Information)
Display Area B (The details of the Machine Information)
800301 Warning: Decreasing of Comp. Hdlg. Rate(For Nozzle.)
Nozzle message rate :
-----
800302 Warning: Decreasing of Comp. Hdlg. Rate(For Nozzle.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
-----
800401 Warning: Decreasing of Comp. Hdlg. Rate(For Fdr.)
Feeder message rate :
-----
800402 Warning: Decreasing of Comp. Hdlg. Rate(For Fdr.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
-----
800505 Alternated Tray Magazine Axis
Shortage of component
-----
800601 Alternated Feeder
Shortage of component
-----
800602 Alternated Feeder
Splice waiting
-----
800603 Alternated Feeder
Comp. Vertical(sensor)
-----
800604 Alternated Feeder
Comp. Thickness(sensor)
-----
800605 Alternated Feeder
Comp. Missing(sensor)
-----
800606 Alternated Feeder
Comp. Recog. Error(recog.)
-----
800607 Alternated Feeder
Comp. Missing(recog.)
-----
800608 Alternated Feeder
Coplanarity Check Error
-----
800609 Alternated Feeder
The feeder at the alternation destination is invalid. Please set it effectively.
-----
