4OM-1603
2-31
3. Machine Information : Chap.2
Machine
Information Code
Display Area A (The outline of the Machine Information)
Display Area B (The details of the Machine Information)
80e002 Noz Selection axis position offset teaching
The 2nd Re-trial for Noz Selection axis position offset teaching started.
-----
80f001 Auto Opn.Mode
Start Auto Opn.Mode.
-----
80f002 Auto Opn.Mode
Stop Auto Opn.Mode.
-----
80f101 ACV Registration
Comp.Reld. execution.
-----
80f102 ACV Registration
Splicing execution.
-----
80f201 Simplied
Coverlocked
OperatedbySimpliedCover
locked.PleaseconrmthepositionofbothHeads
and Nozzle. There is a possibility of interference when they are close to Transfer
machine. Continue to operation.
-----
80f202 SimpliedCoverlocked
Connector(Rear) of Feeder Base is taken off.
Do not take it off when Feeder Base is rising up. Please go on if it's on operating.
-----
80f203 SimpliedCoverlocked
Connector(Front) of Feeder Base is taken of
f.
Do not take it off when Feeder Base is rising up. Please go on if it's on operating.
-----
80f204 SimpliedCoverlocked
Manual Movement and Load.
This operation will be done while [START] button is
pushed.
Please push the button continuously before PCB moves to the proposal position.
-----
80f301 Barcode Detection
The bar code data is not read. Bar code ID is generated automatically.
-----
80f302 Barcode Detection
Illegal bar code ID. Bar code ID is generated automatically
.
-----
80f401 FF func. for Print Pos Correction
Standard PCB Mounting will be executed without Print Pos. Correction because
the standard of Device's Coordinates for PP data in Printer differs from it in
Mounter.
-----
1012-005
4OM-1603
2-32
3. Machine Information : Chap.2
1012-005
Machine
Information Code
Display Area A (The outline of the Machine Information)
Display Area B (The details of the Machine Information)
80f402 FF func. for Print Pos Correction
Standard PCB Mounting will be executed without Print Pos. Correction because
Global Recognition of PP Data does not have 2 points.
-----
80f403 FF func. for Print Pos Correction
Standard PCB Mounting will be executed without Print Pos. Correction because
Unit PCB Recog or Local PCB Recog of PP Data is being used.
-----
80f404 FF func. for Print Pos Correction
Standard PCB Mounting will be executed without Print Pos. Correction because
could not receive Print Pos. Correction values normally.
-----
80f405 FF func. for Print Pos Correction
Standard PCB Mounting will be executed without Print Pos. Correction because
of time-out of receiving Print Pos. Correction values.
-----
80f501 Auto Cover Locked Start
After Auto Cover locked, it is stopped because NG Items are found by Free Check
before
productopreation.Pleaseconrmthe
guideforstart-up.
-----
80f601 Feeder Base
Connector for Feeder Cart is not connected.
-----
80f602 Feeder Base
Not turned Feeder Cart on yet.
-----
80f603 Feeder Base
Communicating with Feeder.
-----
T4B2
4OM-1603
2-33
4. "Error" Window : Chap.2
4. "Error" Window

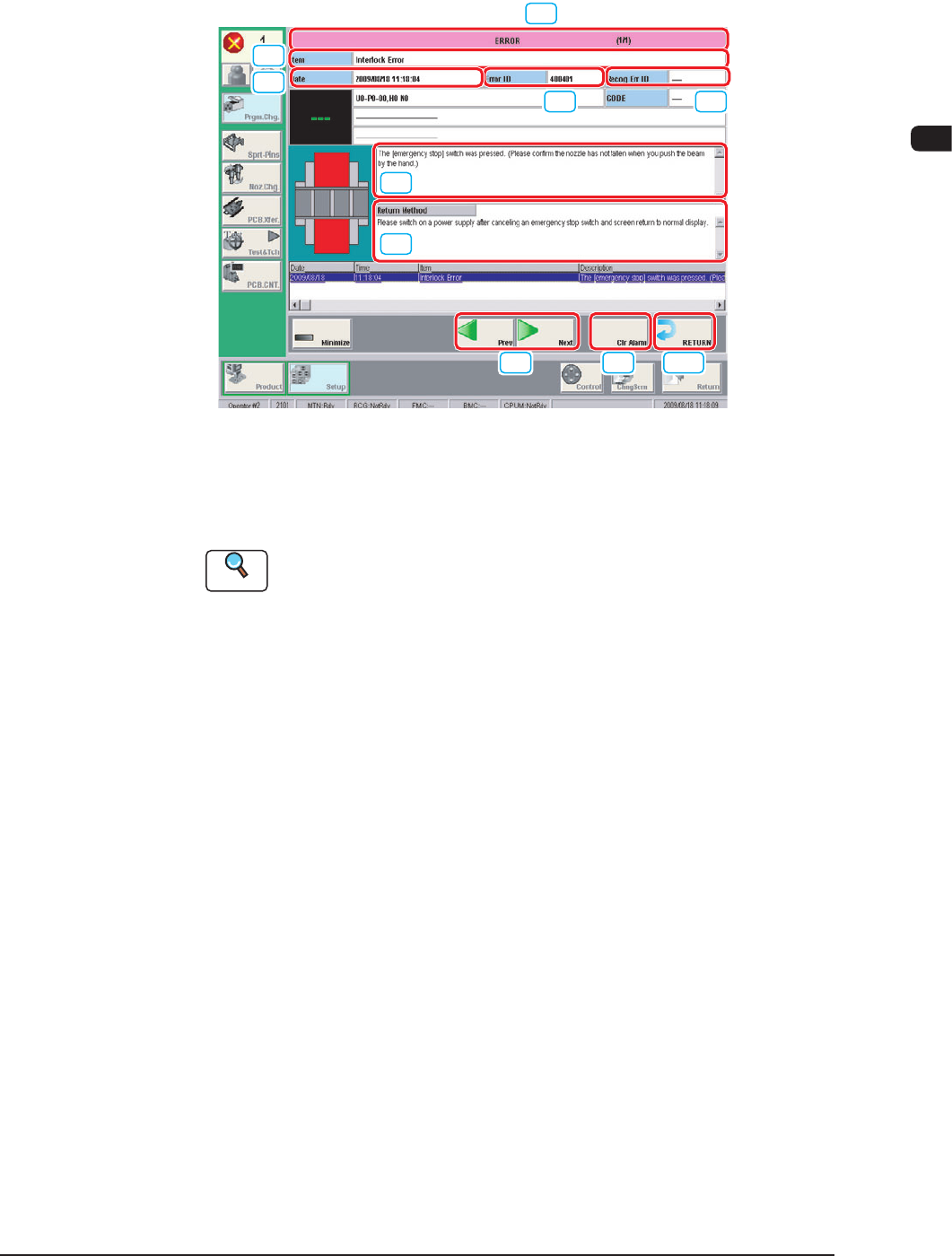

When the machine detects an error, the following error window appears.
[7]
[8] [9] [10]
[1] [2]
[3]
[6]
[4]
[5]
Example of Error Window F4B4
[1] Error ID
The error type is displayed using a 6-digit gure.
Reference
When an error has occurred, use this ID as an index and refer to "Chapter
3 Troubleshooting based Error ID" for details.
[2] Recognition Error ID
In this text box, the error type is displayed using an 8-digit gure.
[3] Error Name
In this text box, the error category is displayed.
[4] Description
In this text box, the error description is displayed.
[5] Remedy
In this text box, the error name, description, cause and remedial procedure
are described.
