4OM-1603 1-34 3. Maintenance Spots : Chap.1 1012-005 Cam Followers Every 3 Months Cleaning and Lubrication (DAPHNE EPONEX GREASE No. 1) Required T ime: 5 minutes If foreign substances adhere to the cam followers, remove …
4OM-1603
1-33
3. Maintenance Spots : Chap.1
Notice

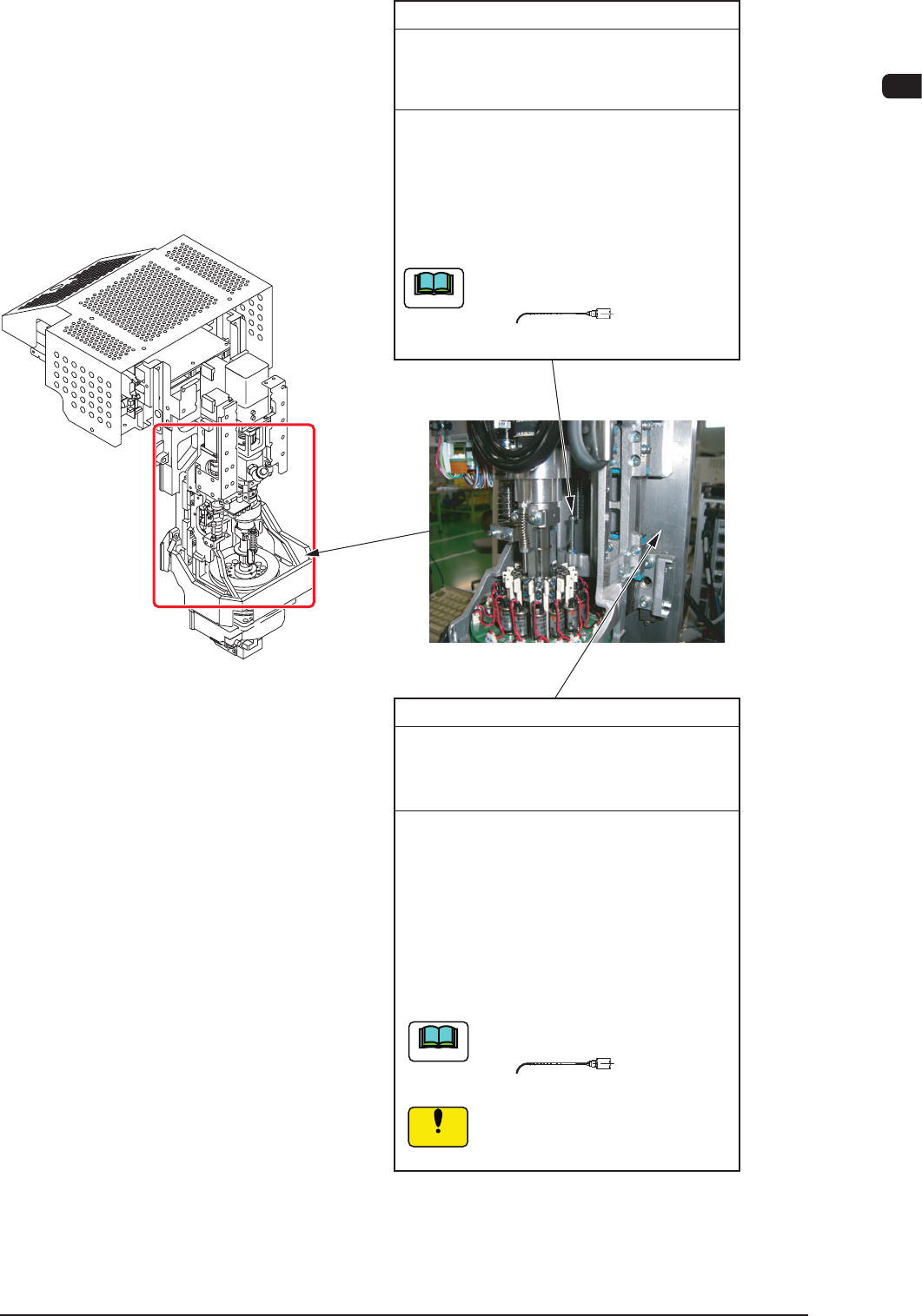

Head U/D Ball Screw (HL Axis)
(1) Wipe off the old grease with a rag and
apply a small amount of new grease to the
groove of the ball screw with a syringe
(2) After lubrication, move the HL-axis up
and down 25 mm five times using the
manual axis operation to smooth the grease.
No.19
(3) Grease should be applied every 3 months
after the initial month.
Apply grease, taking care that
the grease does not stick to the
sensor.
No.19
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Use No. 19 (brown) nozzle.
Note
Head U/D Linear Guide (HL Axis)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off the old grease with a rag and
apply a small amount of new grease to the
groove of the ball screw with a syringe
(2) After lubrication, move the HL-axis up
and down 25 mm five times using the
manual axis operation to smooth the grease.
Use No. 19 (brown) nozzle.
Note
F4A25-1
1012-004
4OM-1603
1-34
3. Maintenance Spots : Chap.1
1012-005

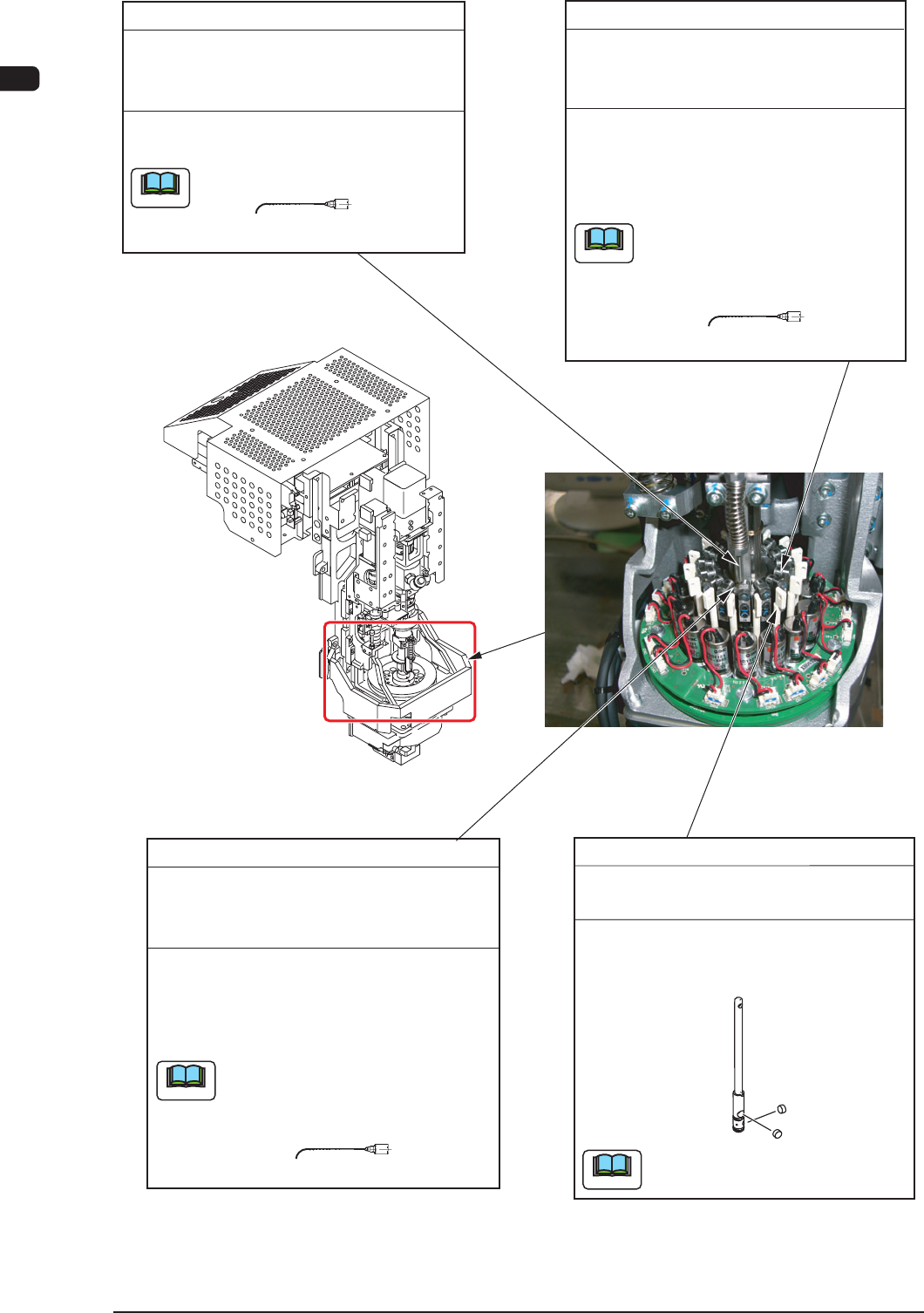

Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
If foreign substances adhere to the cam
followers, remove them with a pair of tweezers.
Apply grease (0.01 cc) to the upper sides
of the cam followers with a syringe.
(a) "0.01 cc" is almost equivalent
to the size of "1005 Chip".
(b)
Use No. 19 (brown) nozzle.
Note
No. 19
Center Spline
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 4 minutes
Apply grease to the groove of the center spline
with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
If a foreign substance adheres to the cam face,
remove it with a pair of tweezers.
Apply grease (0.01 cc) to the upper side of
the cam face with a syringe.
(a) "0.01 cc" is almost equivalent
to the size of "1005 Chip".
(b)
Use No. 19 (brown) nozzle.
Note
Note
No. 19
Vacuum Filters (15 locations)
Every 3 Months Replacement
Required Time: 30 minutes
Pull up the 2 vacuum filters with the filter
attachment/detachment jig and replace it with
a new one.
Use commercially available tweezers
for filter changes.
F4A26
4OM-1603
1-35
3. Maintenance Spots : Chap.1
1012-005

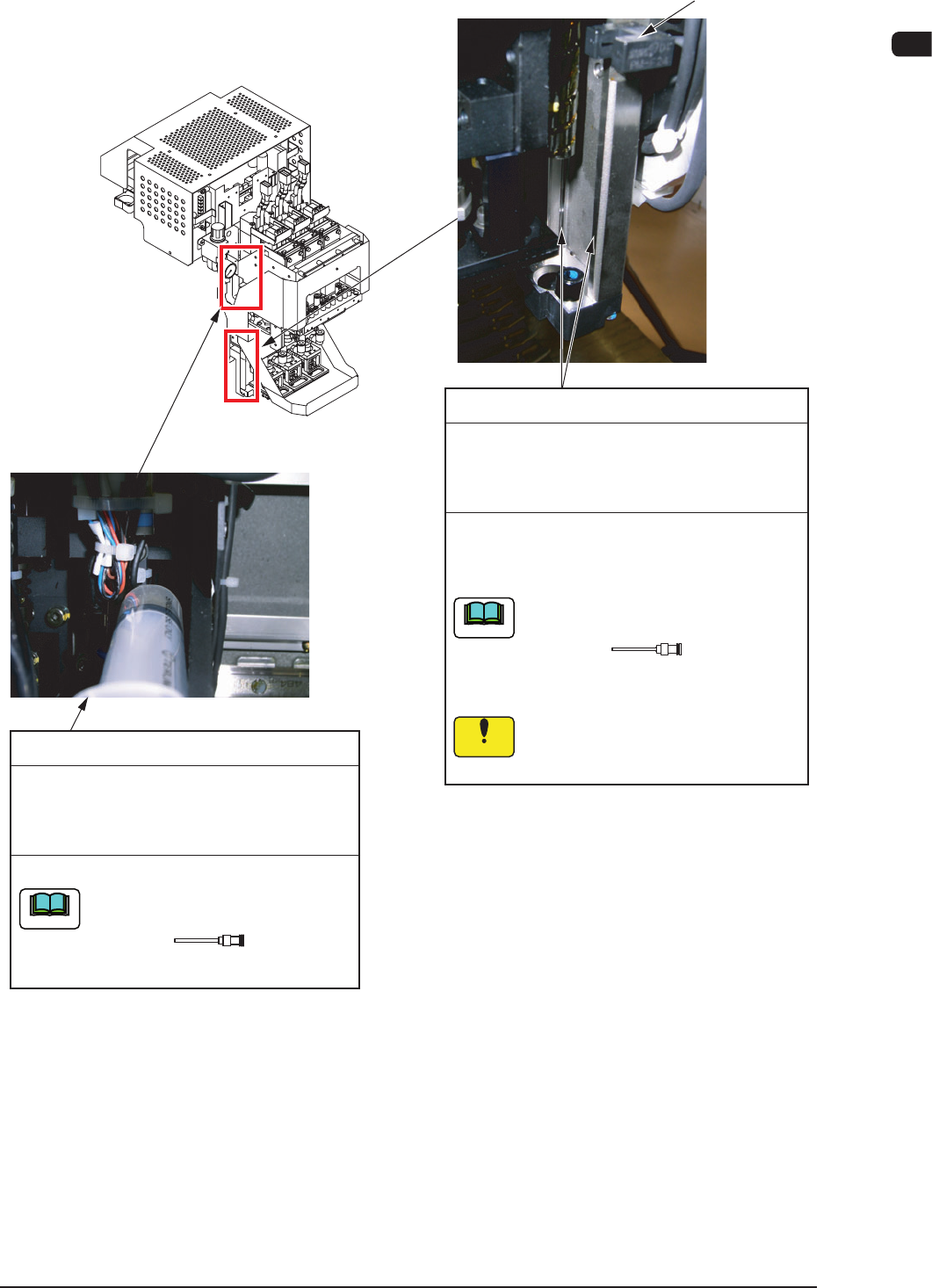

Multi-Functional Head
Ball Screw (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Linea Guide (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Grease should be applied every 3 months after
the initial month.
Notice
Apply grease, taking care that the
grease does not stick to the sensor.
Sensor
Multi-Functional Head F4A26-1
