4OM-1603 1-29 3. Maintenance Spots : Chap.1 CAUTION Whentheatringiscut,takecarenottogetinjured by the commercially available cutter. 1012-002
4OM-1603
1-28
3. Maintenance Spots : Chap.1
1012-004
WARNING
Pay close attention to the cutter blade during the
maintenance work.
•
Lack of attention will result in a hand injury, etc.
Wear gloves and take the greatest care in
performing the work.
•
Be sure to attach the cutter blade cover to the
cut unit during the maintenance work for safety
purposes.

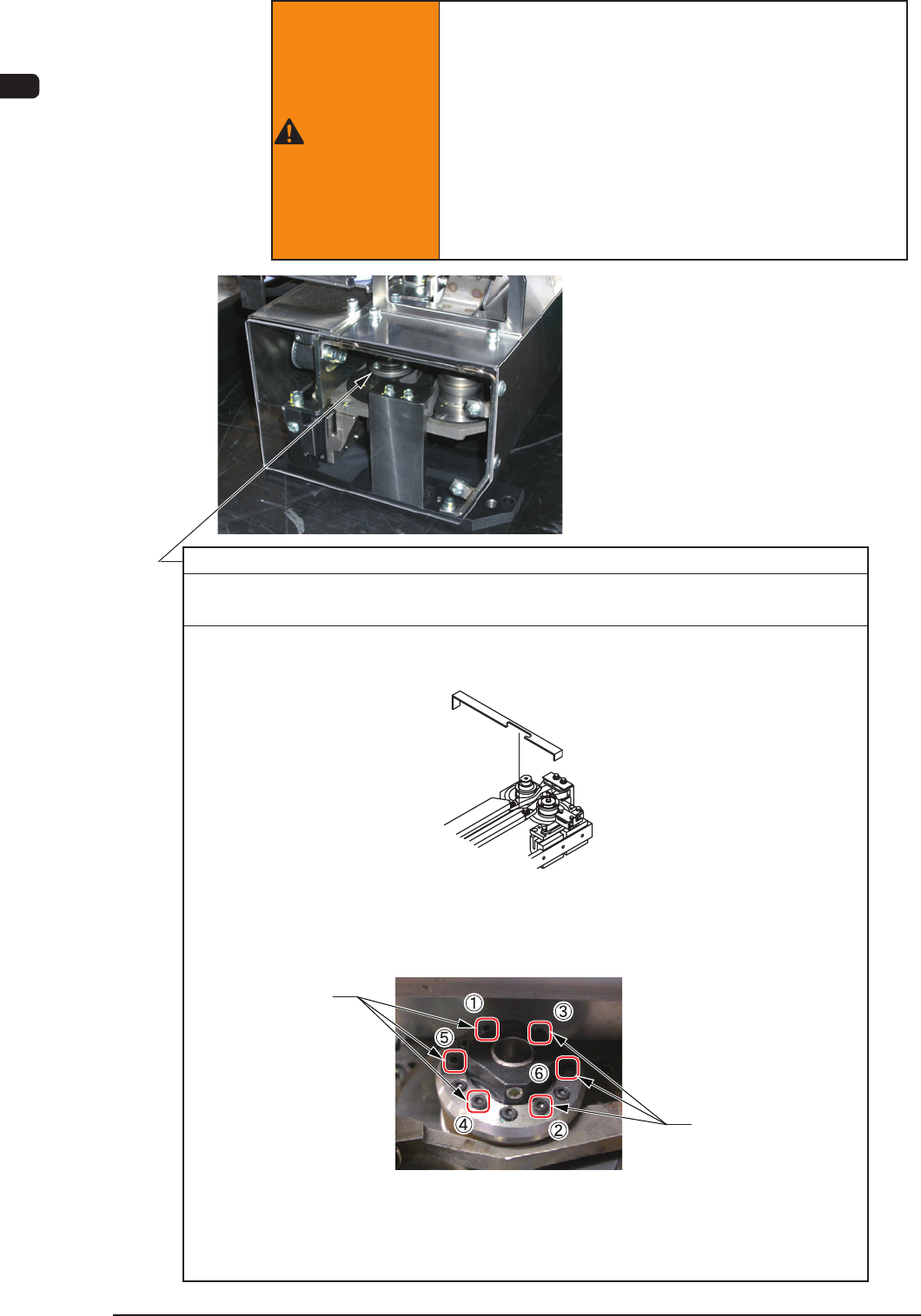

Attachment Position of
Cut Unit Fixing Jig
Flat Ring
Every Year Replacement
Required Time: 10 minutes
(1) Remove 11 screws and detach the cover.
(2) Use the cutter unit fixing jig with the tape clamp closed to fix the urethane clamp section.
(3) Loosen and remove the seal-cover bolt (6 locations) in the order of No. 1 to No. 6,
using a wrench.
(4) Change the flat ring.
(5) Put the shield cover and attach the bolts (6 locations) on it.
(Attach it using the torque driver attached to the line accessory.)
(Tightening Torque : 18.6 to 22.6 Ncm (1.9 to 2.3 kgfcm))
Bolts
Bolts
F4A22
4OM-1603
1-29
3. Maintenance Spots : Chap.1
CAUTION
Whentheatringiscut,takecarenottogetinjured
by the commercially available cutter.
1012-002
4OM-1603
1-30
3. Maintenance Spots : Chap.1
1012-005
(2) Remove the tape guide.
(1) Remove the front safety bar and take out the cutter
from the cart.
(3) Remove five screws.
(4) Replace the fluorine sheet.
Fluorine Sheet
Every Year Replacement Required Time: 15 minutes
Front Safety Bar
Catch Locks
Removed fluorine sheet
(a) When the cutter is setup on the cart, fix the two
connectors securely.
(b) When the cutter is setup on the cart, push the cutter
into the end and fix it securely using the catch locks
(two locations).
(c) Do not forget to attach the front safety bar.
Note
F4A23
