4OM-1603 1-45 3. Maintenance Spots : Chap.1 PCB Detection Sensor Mirror At the time of Single Transfer (Arrangement Image Diagram) PCB Detection Sensor Mirror PCB Detection Sensors PCB Detection Sensors PCB Detection Sen…
4OM-1603
1-44
3. Maintenance Spots : Chap.1
1007-003
Support Pin Detection Sensors
Support Pin Detection Sensors (2 locations)
Every Week Cleaning
Required Time: 1 minute
Clean the support pin detection sensors with
a rag.
F4A34
4OM-1603
1-45
3. Maintenance Spots : Chap.1
PCB Detection Sensor Mirror
At the time of Single Transfer (Arrangement Image Diagram)
PCB Detection Sensor Mirror
PCB Detection Sensors
PCB Detection Sensors
PCB Detection Sensor Fiber
PCB Detection Sensor Fiber
PCB Detection Sensor (3 locations)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
PCB Detection
Sensor
Fiber (2 locations)
PCB Detection Sensor Mirror
F4A35
1007-003
4OM-1603
1-46
3. Maintenance Spots : Chap.1
1012-004

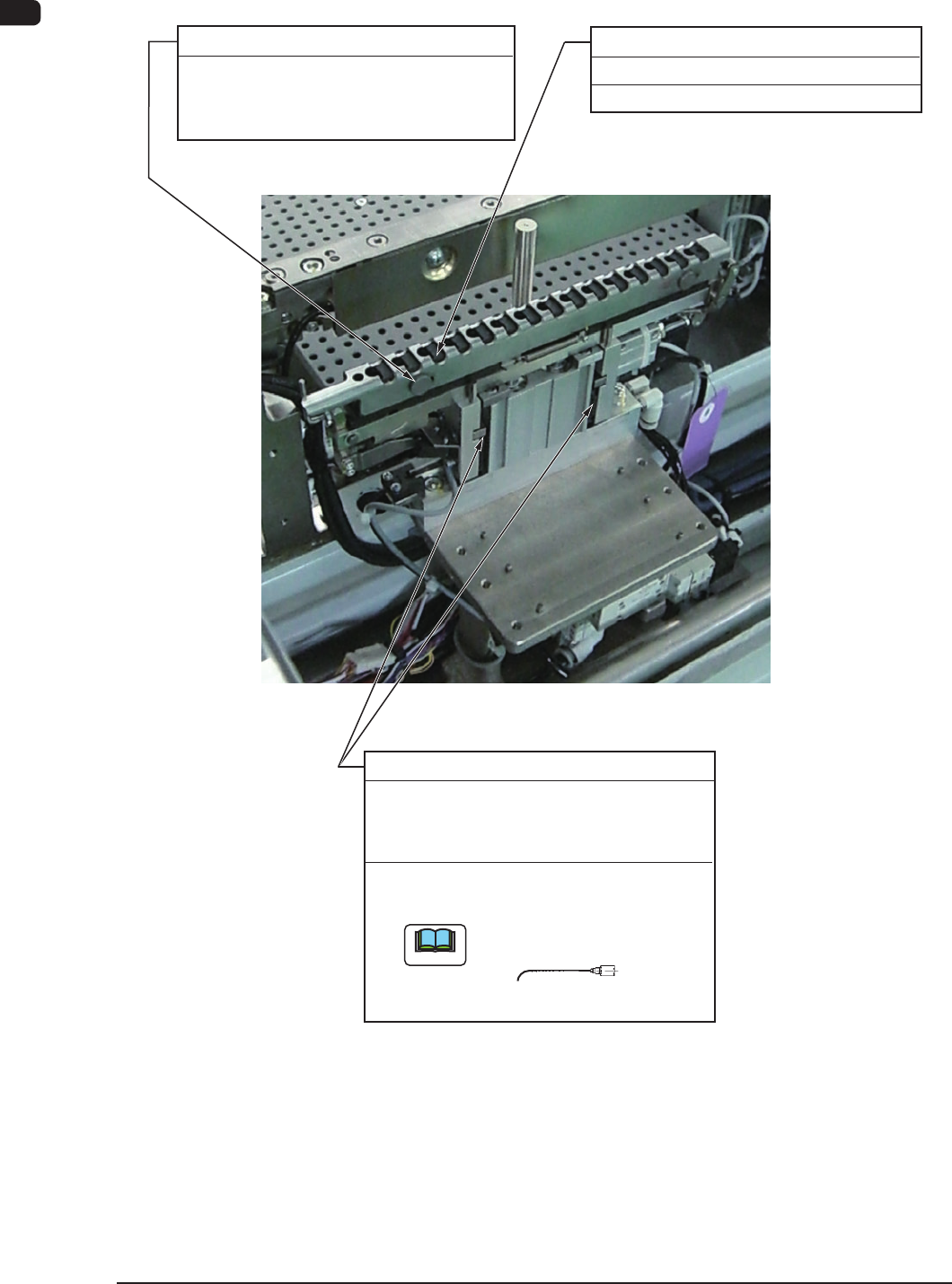

3.2.11 Nozzle Stocker Section
Nozzle Stocker for High Speed Nozzle
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Nozzle Stocker Sliding Section
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Shutter Flange Pin Sliding Section
F4A36
