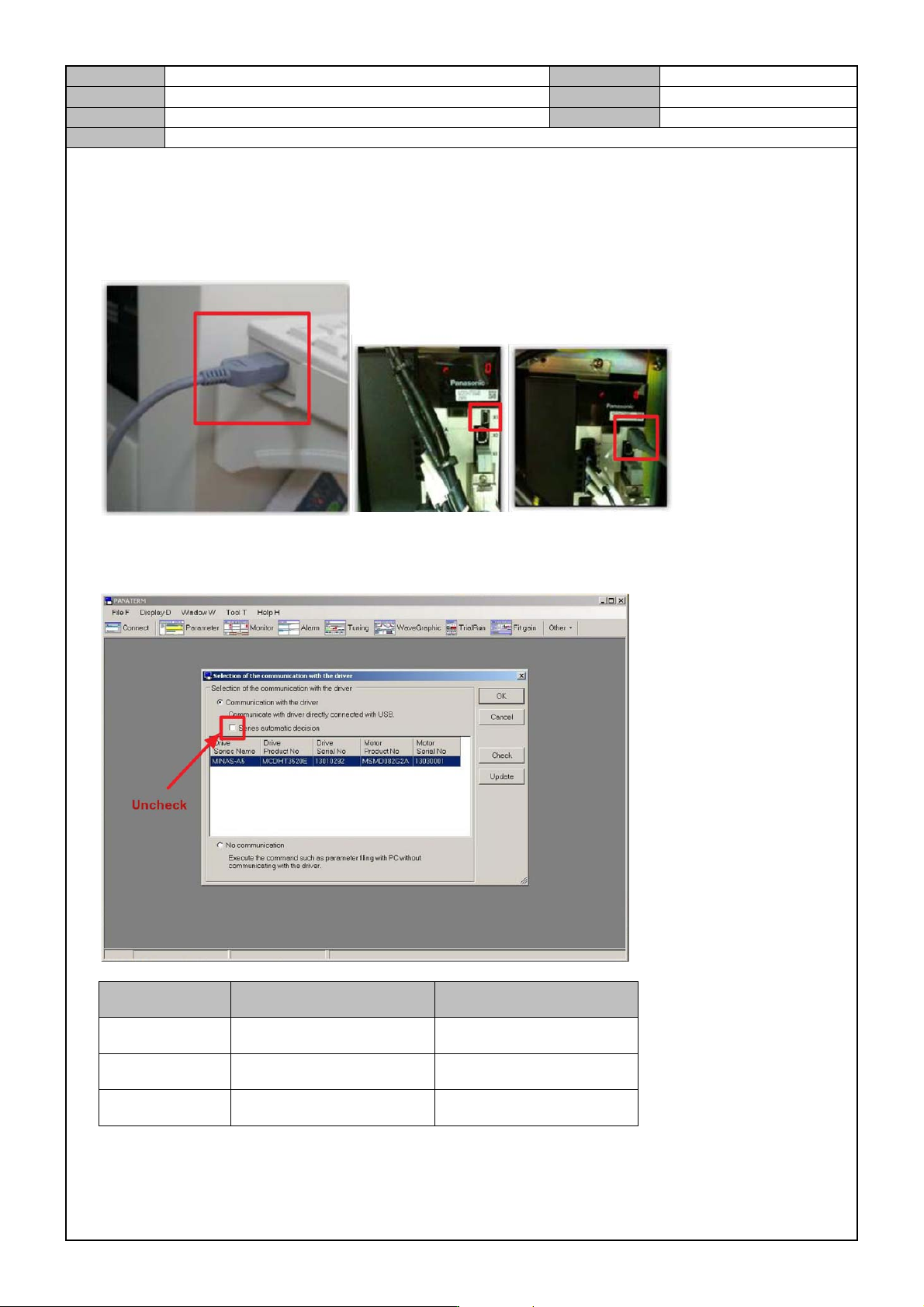

[MOTOR DRIVER PARAMETER DOWNLOAD(X, Y, S)]
1. Copy the parameter file to the equipment PC.
2. Using the Parameter Cable, connect the Keyboard USB Port to the Y1 Motor Amplifier's X1 terminal.
3. Run the PANATERM Ver.5.0 program.
4. After checking the Driver/Motor information, press [OK].
Classification Driver Product No. Motor Product No.
Y axis MDDHT554LA2 -
X axis MCDKT3520E MHMD082G1A
S axis MADKT1505E MSMD5AZG1A
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
Motor Driver Parameter download(X, Y, S)
Page
3-7-5
Note

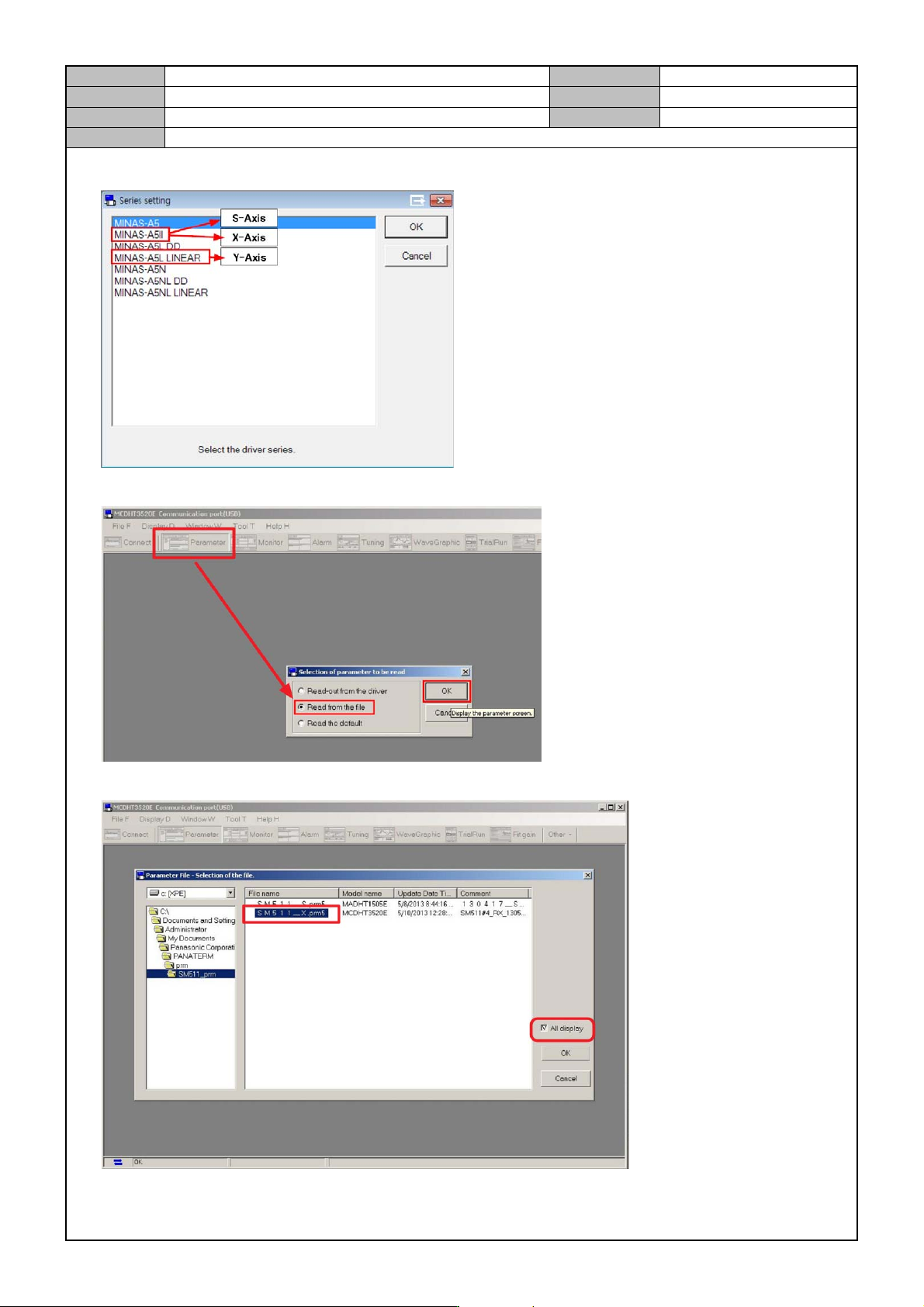

5. In the <Series setting> screen, select <MINAS-A5Ⅱ> and click on [OK].
6. After selecting <Read from the file>, click on [OK].
7. After selecting the driver file to enter the parameters, click on [OK].
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
Motor Driver Parameter download(X, Y, S)
Page
3-7-6
Note

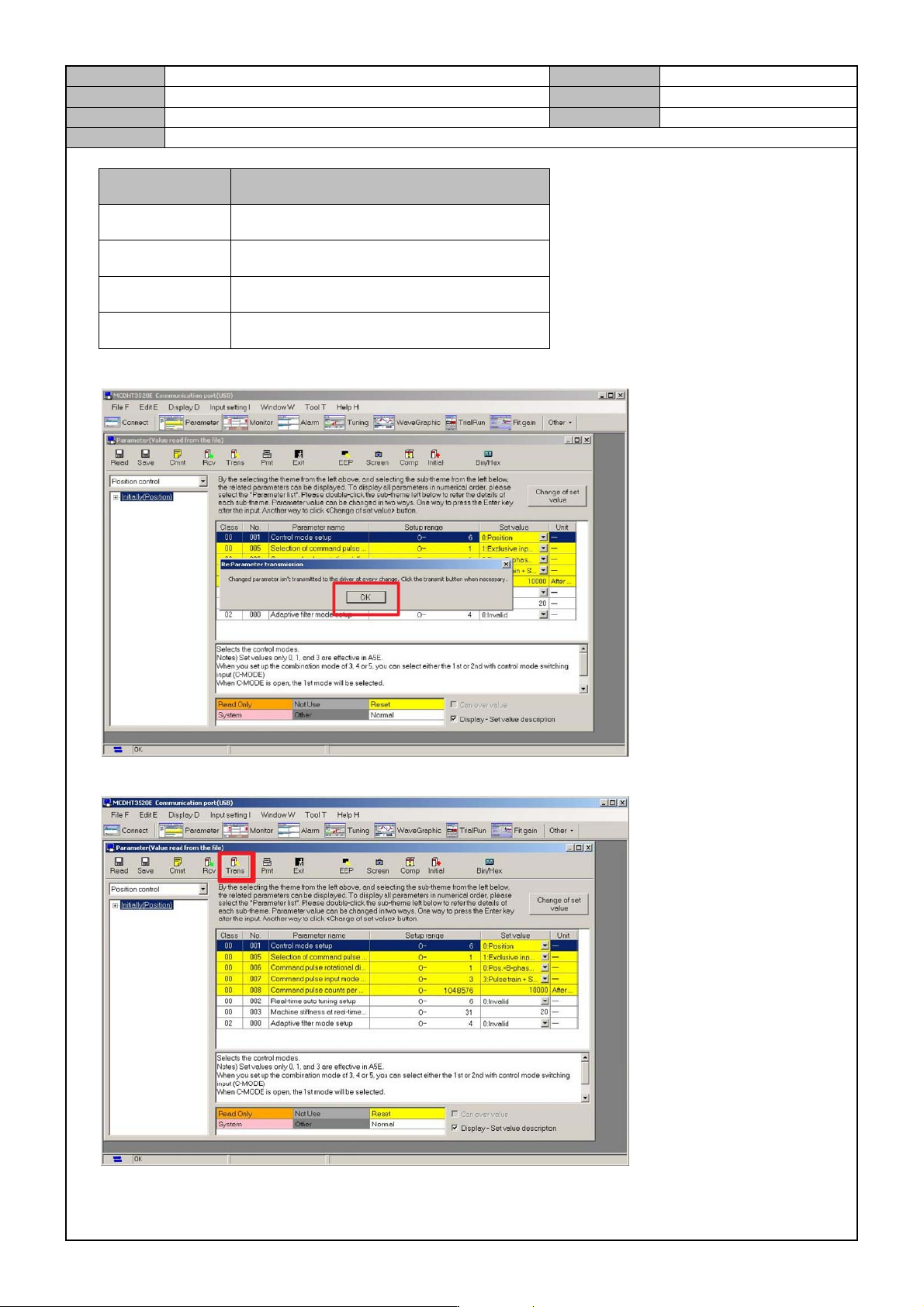

Classification DRIVER FILE
FY1, RY1 130515_Y1_SM511.prm5
FY2, RY2 130515_Y2_SM511.prm5
FX, RX 130515_X_SM511.prm5
FS, RS A5II SW parameter 140121.prm5
8. Press [OK].
9. Press [Trans ].
