Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
FIDUCIAL CAMERA LIGHTING LED CHANGE
Page
3-11-58
Note
[FIDUCIAL CAMERA LIGHTING LED CHANGE]
1. Turn off the PC and turn off the Main Switch in the front of the equipment.
2. Disconnect the video cable connector from the Fiducial Camera.
3. Disconnect the cable from the Fiducial Camera.
4. Remove the fixing bolts from the Fiducial Camera to separate it.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
FIDUCIAL CAMERA LIGHTING LED CHANGE
Page
3-11-59
Note
5. Separate the Fiducial Camera as follows.
① Coaxial lighting LED
② Outer lighting LED
6. Replace it with a new lighting LED.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
GREASE INJECTION (F2)
Page
3-11-60
Note

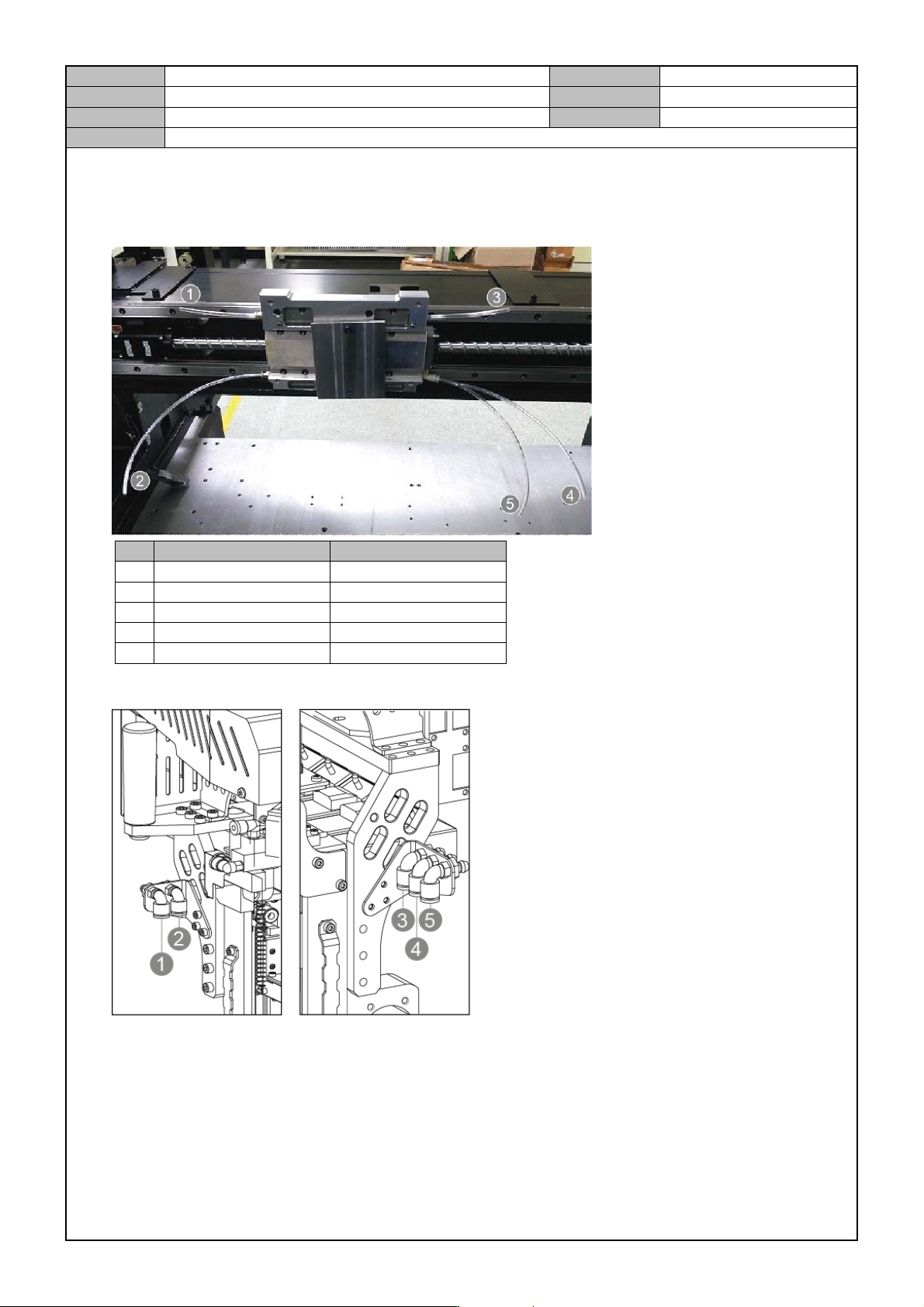

[GREASE INJECTION (F2)]
Head Grease tube wiring
Location Length
1 Upper left of LM 85mm
2 Left bottom of LM 190mm
3 Right top of LM 95mm
4 Ball Screw 210mm
5 Right bottom of LM 250mm
Head Grease tube wiring
① Left bottom of LM
② Upper left of LM
③ Right top of LM
④ Ball Screw
⑤ Right bottom of LM
