Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Total Pages
62
Table of Contents
[HEAD BLOW & VACUUM SETTING (F2)] ......................................................... 2
[HEAD BLOW & VACUUM SETTING (L2)] ......................................................... 7
[HEAD EXTERIOR CHECK] .............................................................................. 12
[HEAD ASSEMBLY (F2)] ................................................................................... 13
[HEAD ASSEMBLY (L2)] ................................................................................... 15
[HEAD AMP ASSEMBLY (F2)] .......................................................................... 17
[HEAD AMP ASSEMBLY (L2)] .......................................................................... 22
[HEAD CABLE WIRING] .................................................................................... 24
[Z AXIS NOISE DECISION CRITERIA] ............................................................. 27
[HEAD SOLENOID VALVE REPLACEMENT (F2)] ........................................... 28
[HEAD SOLENOID VALVE REPLACEMENT (L2)] ............................................ 30
[NOZZLE HOLDER REPLACEMENT] ............................................................... 32
[BALL SPLINE REPLACEMENT (F2)] ............................................................... 33
[BALL SPLINE REPLACEMENT (L2)] ............................................................... 36
[LM GUIDE ASSEMBLY] ................................................................................... 39
[Z, R AXIS BELT TENSION ADJUSTMENT (F2)] ............................................. 40
[Z, R AXIS BELT TENSION ADJUSTMENT (L2)] .............................................. 41
[MOTOR DRIVER ASSEMBLY]......................................................................... 42
[Z, R AXIS SENSOR REPLACEMENT (F2)] ..................................................... 44
[Z, R AXIS SENSOR REPLACEMENT (L2)] ..................................................... 45
[Z, R AXIS MOTOR PULLEY REASSEMBLY (F2)] ........................................... 46
[Z, R AXIS MOTOR PULLEY REASSEMBLY (L2)] ........................................... 51
[FLY MIRROR REPLACEMENT] ....................................................................... 55
[MIRROR SWING MOTOR REPLACEMENT] ................................................... 56
[SWING CAM SET SCREW REASSEMBLY] .................................................... 57
[FIDUCIAL CAMERA LIGHTING LED CHANGE] .............................................. 58
[GREASE INJECTION (F2)] .............................................................................. 60
[GREASE INJECTION (L2)] .............................................................................. 61
[ROTARY JOINT REPLACEMENT (L2)] ........................................................... 62
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD BLOW & VACUUM SETTING (F2)
Page
3-11-2
Note
[HEAD BLOW & VACUUM SETTING (F2)]
Check the Main Air Setting.
Check if the Digital Gauge is set to 0.5 Mpa (Spec 0.45~0.55Mpa) and if not reset it.
Check the air pressure level.
1. Select MMI <Diagnosis> → <Vacuum>.
2. While the Vacuum/Blow is Off, check the current level.
Check if the current level is 0±9 mmHg.
If not, adjust the VR of the Head IO Board.
3. Check the same thing for Gantry2's Head 11~20.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD BLOW & VACUUM SETTING (F2)
Page
3-11-3
Note

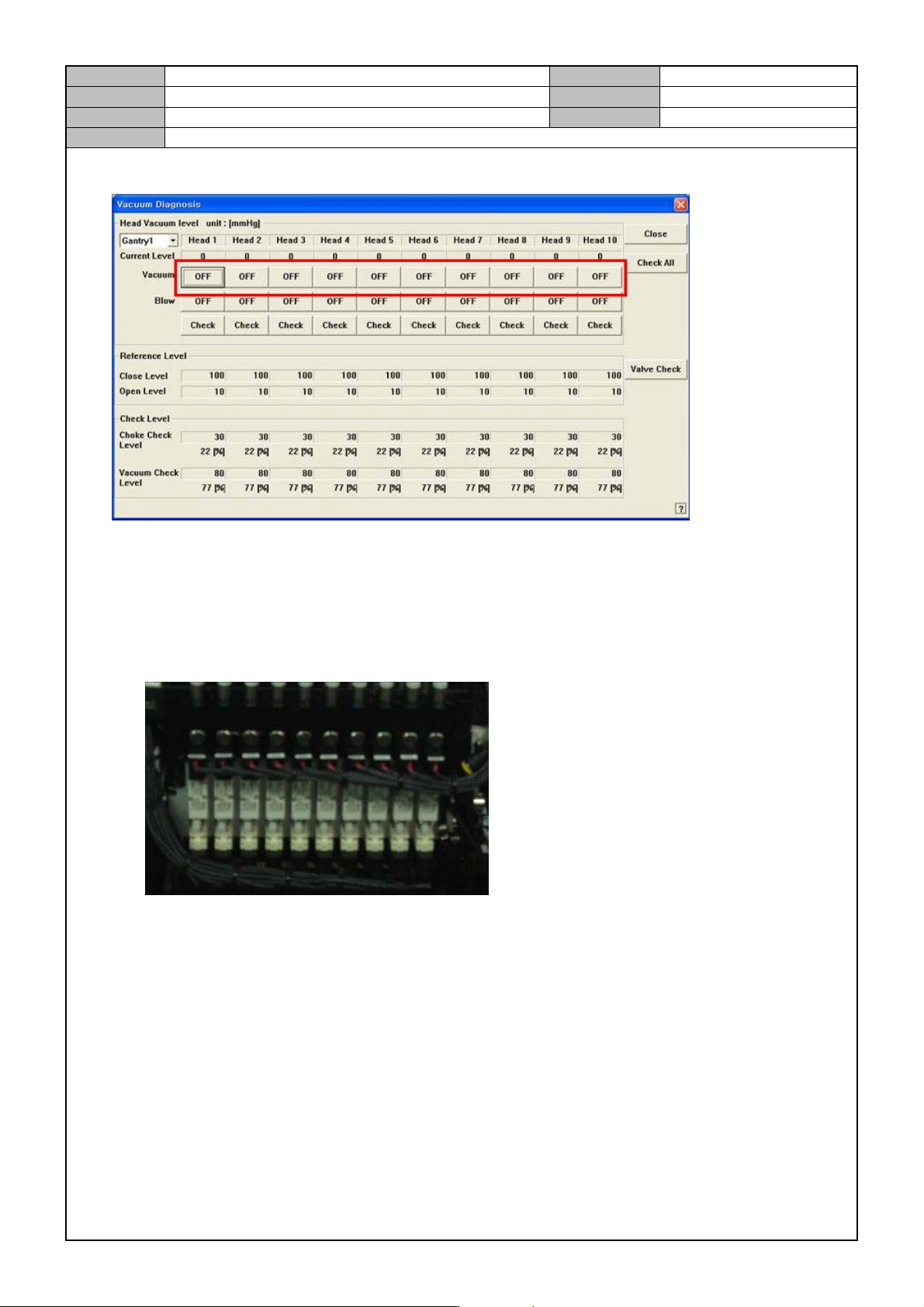

Head Vacuum operation check
1. Manually lower the Z axis of Head1~10 and then mount the CN040 Nozzle.
2. While the blow is off, turn on/off each head's vacuum condition and check if the vacuum is created
and check the current value.
When it is on, the vacuum is greater than480mmHg.
When the Vacuum is On/Off, check if the Sol Valve's Vacuum LED is lit.
3. When the Vacuum is On, block the nozzle and see if the degree of vacuum is greater than 600mmHg.
