Model DECAN Series Company SAMSUNG TECHWIN Module 3.9 DOCKING CART & FEEDER BASE V ersion 01 Tit le FEEDER BASE SLOT SETTING Page 3-9-4 Note [FEEDER BASE SLOT SETTING] For one Fix Camera Camera Setting → Camera Sel…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
DOCKING CART OPERATION CHECK
Page
3-9-3
Note
7. Insert Feeder Origin tools in the Feeder Slot one by one and then check if the feeder gap sensor operates
properly.
Docking Type Feeder : 1. 28, 55
General Feeder : 1, 30, 59
8. If the Docking Feeder is used then check if the cover in the bottom front of the equipment is for docking.
9. Check if the Docking Feeder Prove Pin is ok.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
FEEDER BASE SLOT SETTING
Page
3-9-4
Note

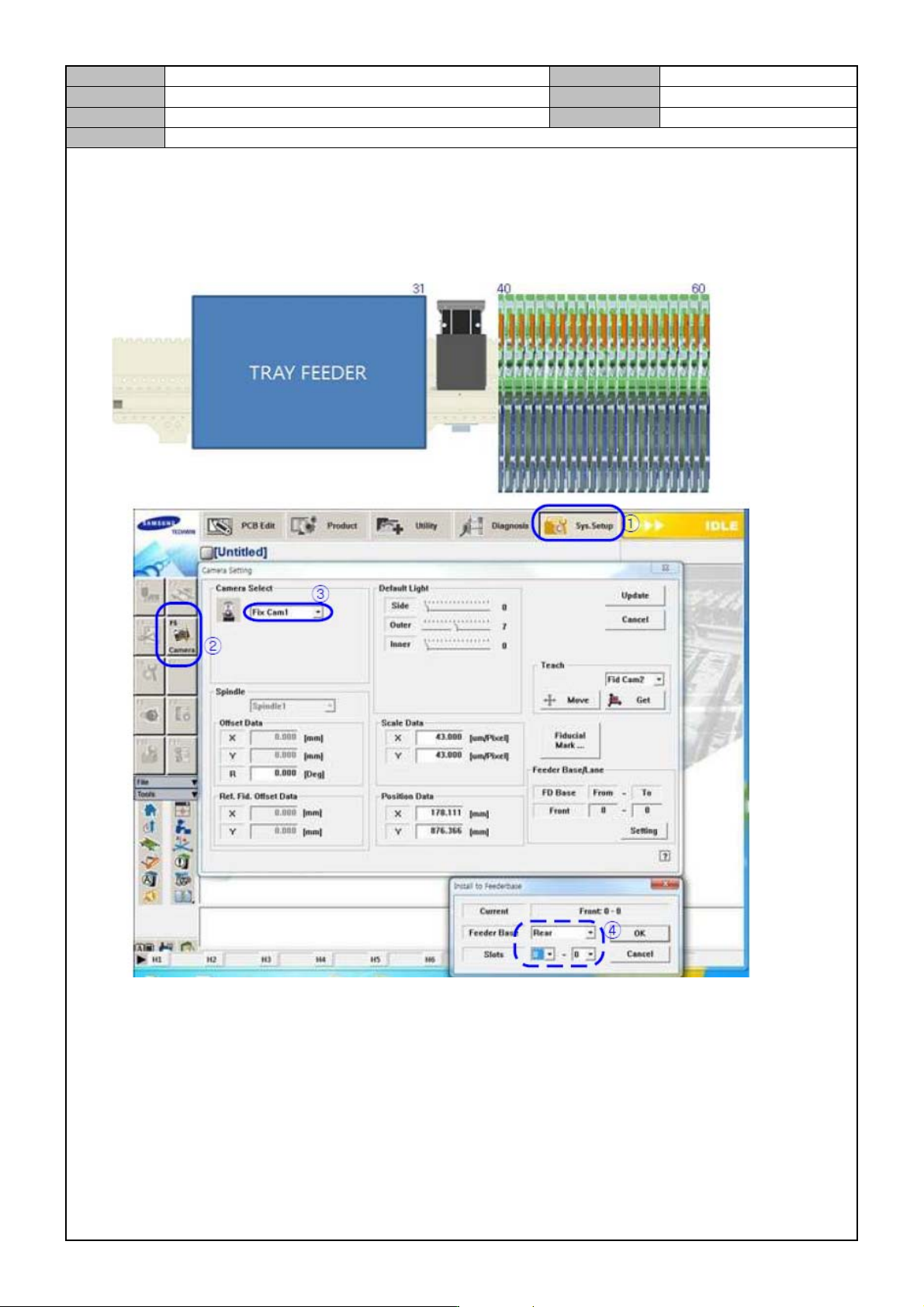

[FEEDER BASE SLOT SETTING]
For one Fix Camera
Camera Setting → Camera Select → Fix Cam1 → Setting (Slot 32~39)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
FEEDER BASE SLOT SETTING
Page
3-9-5
Note
For two Fix Cameras
Camera Setting → Camera Select → Fix Cam1 → Setting (Slot 32~39, 40~45)
