FEEDER CHAGE LOCATION CHANGE
Page
3-9-7
Note
[FEEDER CHAGE LOCATION CHANGE]
1. Select <Sys. Setup> → <F2. Head>.
2. In Gantry 1, change the Y value of "When Front Feeder Change Button Pressed" from 550 → 540.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title

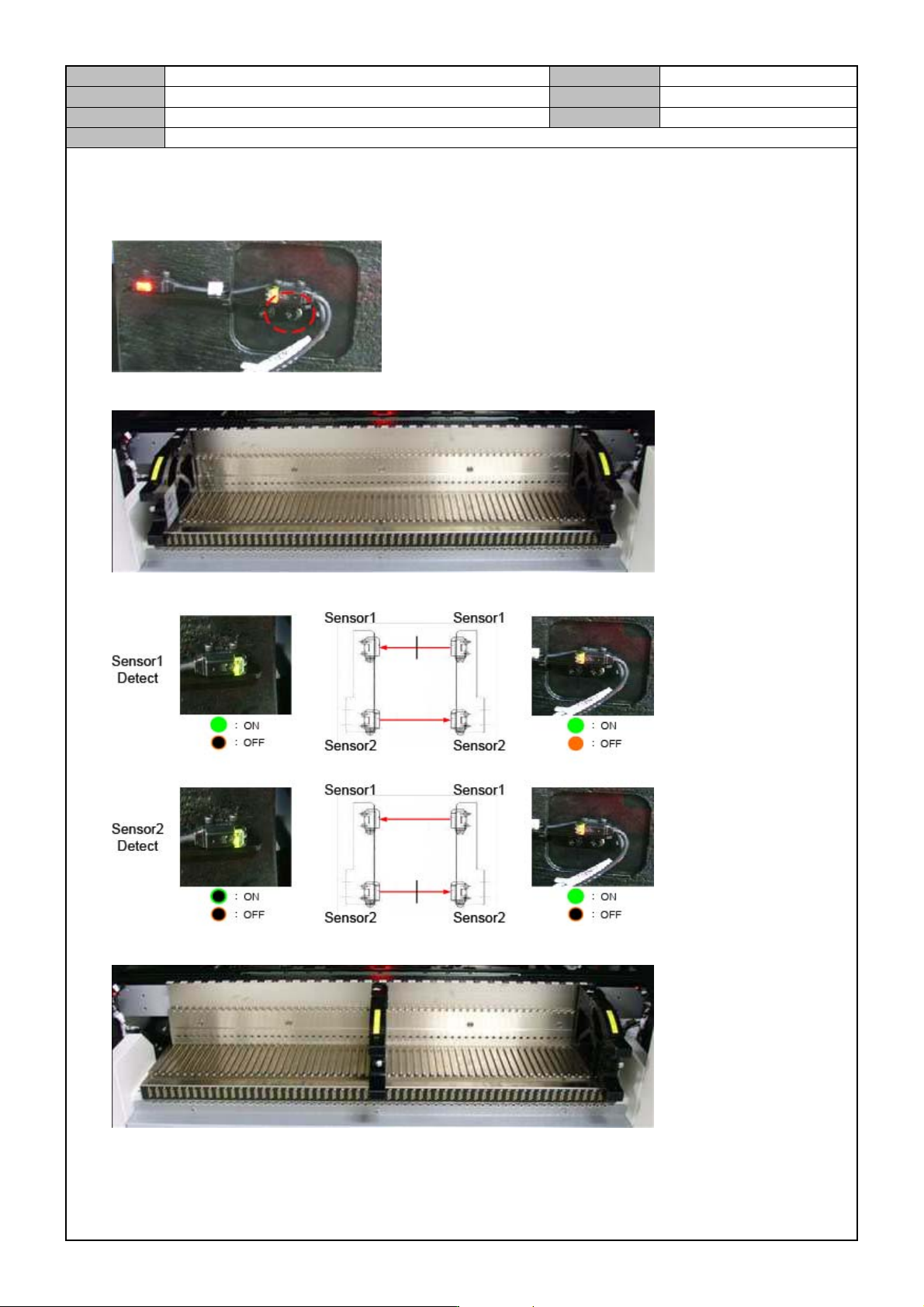

FEEDER UNLOCK SESNOR SETTING
Page
3-9-8
Note
[FEEDER UNLOCK SESNOR SETTING]
1. Temporarily fix the Feeder Gap Sensor.
2. Mount the Feeder Origin tool in Feeder Base Slot 1 and 59.
3. While moving the front plate of the Feeder Origin tool back and forth, check if the sensor detects it.
4. Mount the Feeder Origin tool in number 30 and 59 and then check if the sensor detects them.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
FEEDER UNLOCK SESNOR SETTING
Page
3-9-9
Note
5. Mount the Feeder Origin tool in number 1 and 26 and then check if the sensor detects them.
6. Check the MMI's <Diagnosis> → <I/O State> → <Sensor State> menu to see if the Feeder Gap Sensor
operates properly.
7. If the setting is finished, completely fix the Feeder Gap Sensor.
