Model DECAN Series Company SAMSUNG TECHWIN Module 3.19 ELECTRIC DEVICE V ersion 01 Tit le VOL T AGE CHECK TEST Page 3-19-13 Note 11. Motor Driver Control Power(FY1,FY2,R Y1, R Y2FX,RX,FSW ,RSW) measurement. Inspection un…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-12
Note
7. Turn the MCCB on.
8. Turn CP#1,2,3 off.
9. CP#1,2,3 input power measurement
No. Inspection units Inspection criteria
CP#1 CP#1 input power : CP1-1 , CP1-3
AC 220V±10
CP#2 CP#2 input power : CP2-1 , CP2-3
CP#3
CP#3 input power : CP3-1 , CP3-3
CP#3 input power : CP3-1 , CP3-5
CP#3 input power : CP3-3 , CP3-5
*Condition : CP#1 OFF, CP#2 OFF, CP#3 OFF
10. Safety Control Board CN1,CN2 DC power measurement
Inspection units Inspection criteria
SAFETY CONTROL B/D CN1 : CN1-1 , CN1-3
DC 24V±0.72
SAFETY CONTROL B/D CN1 : CN1-2 , CN1-4
SAFETY CONTROL B/D CN2 : CN2-1 , CN2-3
SAFETY CONTROL B/D CN2 : CN2-2 , CN2-4
*Condition : CP#1 ON, CP#2 ON, CP#3 ON
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-13
Note
11. Motor Driver Control Power(FY1,FY2,RY1, RY2FX,RX,FSW,RSW) measurement.
Inspection units Inspection criteria
MOTOR DRIVER CONTROL POWER FS axis X1 : 1(FS-t) , 2(FS-r)
AC 220V±10
MOTOR DRIVER CONTROL POWER FX axis X1 : 1(FX-t) , 2(FX-r)
MOTOR DRIVER CONTROL POWER RS axis X1 : 1(RS-t) , 2(RS-r)
MOTOR DRIVER CONTROL POWER RX axis X1 : 1(RX-t) , 2(RX-r)
MOTOR DRIVER CONTROL POWER FY1 axis X1 : 1(FY1-t) , 2(FY1-r)
MOTOR DRIVER CONTROL POWER FY2 axis X1 : 1(FY2X-t) , 2(FY2-r)
MOTOR DRIVER CONTROL POWER RY1 axis X1 : 1(RY1-t) , 2(RY1-r)
MOTOR DRIVER CONTROL POWER RY2 axis X1 : 1(RY2-t) , 2(RY2-r)
12. FAN #1~8, Front/Rear Monitor, PC Rack power are measured in the following order.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-14
Note
Inspection units Inspection criteria
Front MONITOR power measurement : 220L, 220N
AC 220V±10
Rear MONITOR power measurement : 220L, 220N
FAN #1 power measurement : FAN1 - 1,2
FAN #2 power measurement : FAN2 - 1,2
FAN PUMP power measurement : FAN PUMP - 1,2
FAN #3 power measurement : FAN3 - 1,2
FAN #4 power measurement : FAN4 - 1,2
FAN #7 power measurement : FAN3 - 1,2
FAN #8 power measurement : FAN4 - 1,2
SERVO FAN LEFT power measurement : FAN5 - 1,2
SERVO FAN RIGHT power measurement : FAN6 - 1,2
*Condition : CP#1 ON, CP#2 ON

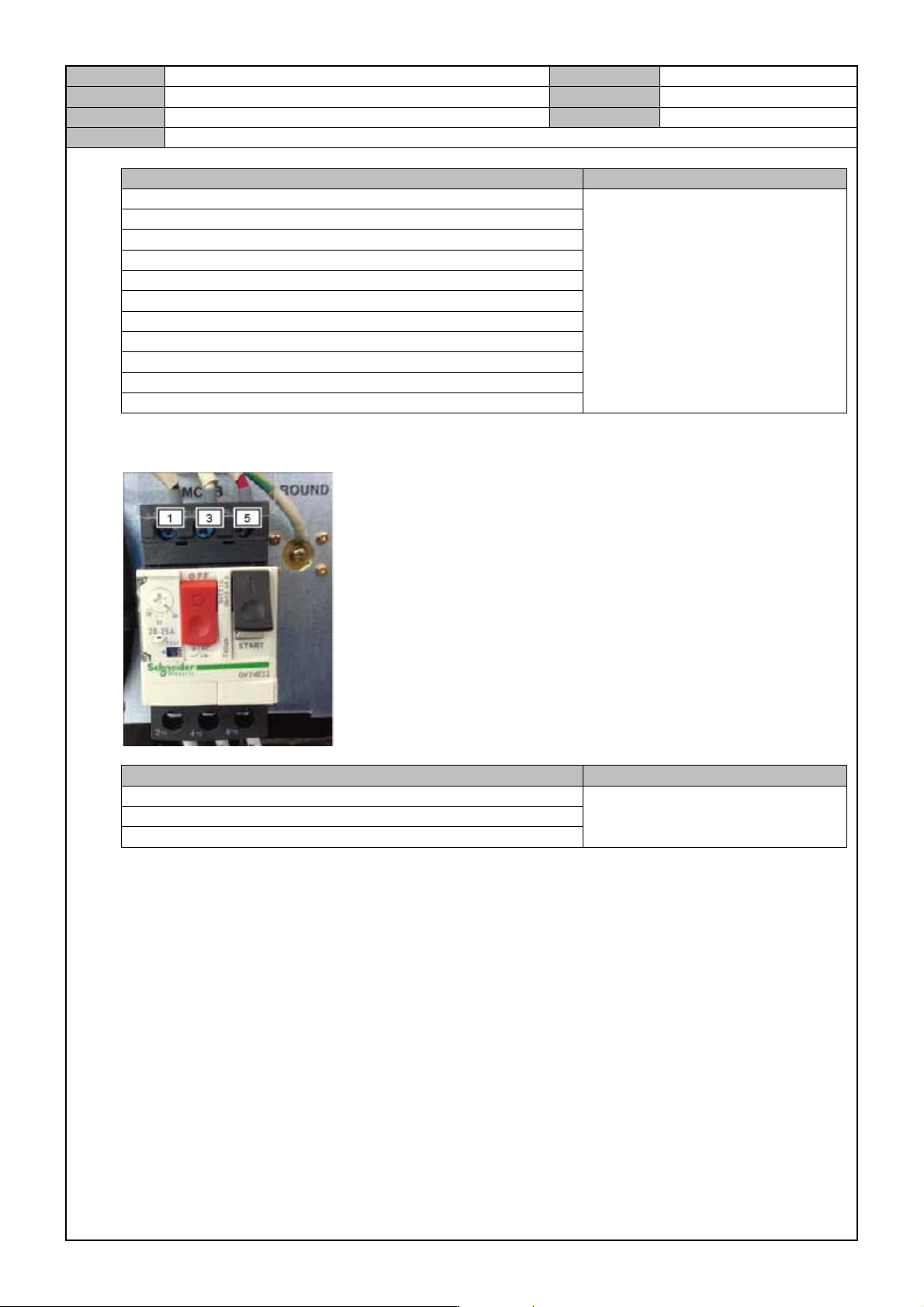

13. MCCB power measurement
Inspection units Inspection criteria
MCCB : 1,3
AC 220V±10
MCCB : 1,5
MCCB : 3,5
*Condition : CP#1 OFF, CP#2 OFF, CP#3 OFF, MCCB, Main Power Switch OFF
