Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
STEP MOTOR DRIVER DIP SWITCH SETTING
Page
3-7-12
Note
[STEP MOTOR DRIVER DIP SW ITCH SETTING]
Conveyor option MS1 WS1 WW1 MS2 WS2 WW2
Shuttle (1-2-1)
ON ON ON ON ON ON
ON OFF OFF ON OFF OFF
ON ON ON ON ON ON
OFF OFF OFF OFF OFF OFF
Conveyor option MS1 WS1 WW1 MS2 WS2 WW2
Full Dual
ON OFF ON ON OFF ON
ON OFF OFF ON OFF OFF
OFF OFF ON OFF OFF ON
OFF OFF OFF OFF OFF OFF
Conveyor option MS1 WS1 WW1 MS2 WS2 WW2
Shuttle (2-2-1)
ON OFF ON ON ON ON
ON OFF OFF ON OFF OFF
OFF OFF ON ON ON ON
OFF OFF OFF OFF OFF OFF
Conveyor option MS1 WS1 WW1 MS2 WS2 WW2
Shuttle (1-2-2)
ON ON ON ON OFF ON
ON OFF OFF ON OFF OFF
ON ON ON OFF OFF ON
OFF OFF OFF OFF OFF OFF
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
PARAMETER CHECK(Y1, Y2)
Page
3-7-13
Note
[PARAME TER CHECK(Y1, Y2)]

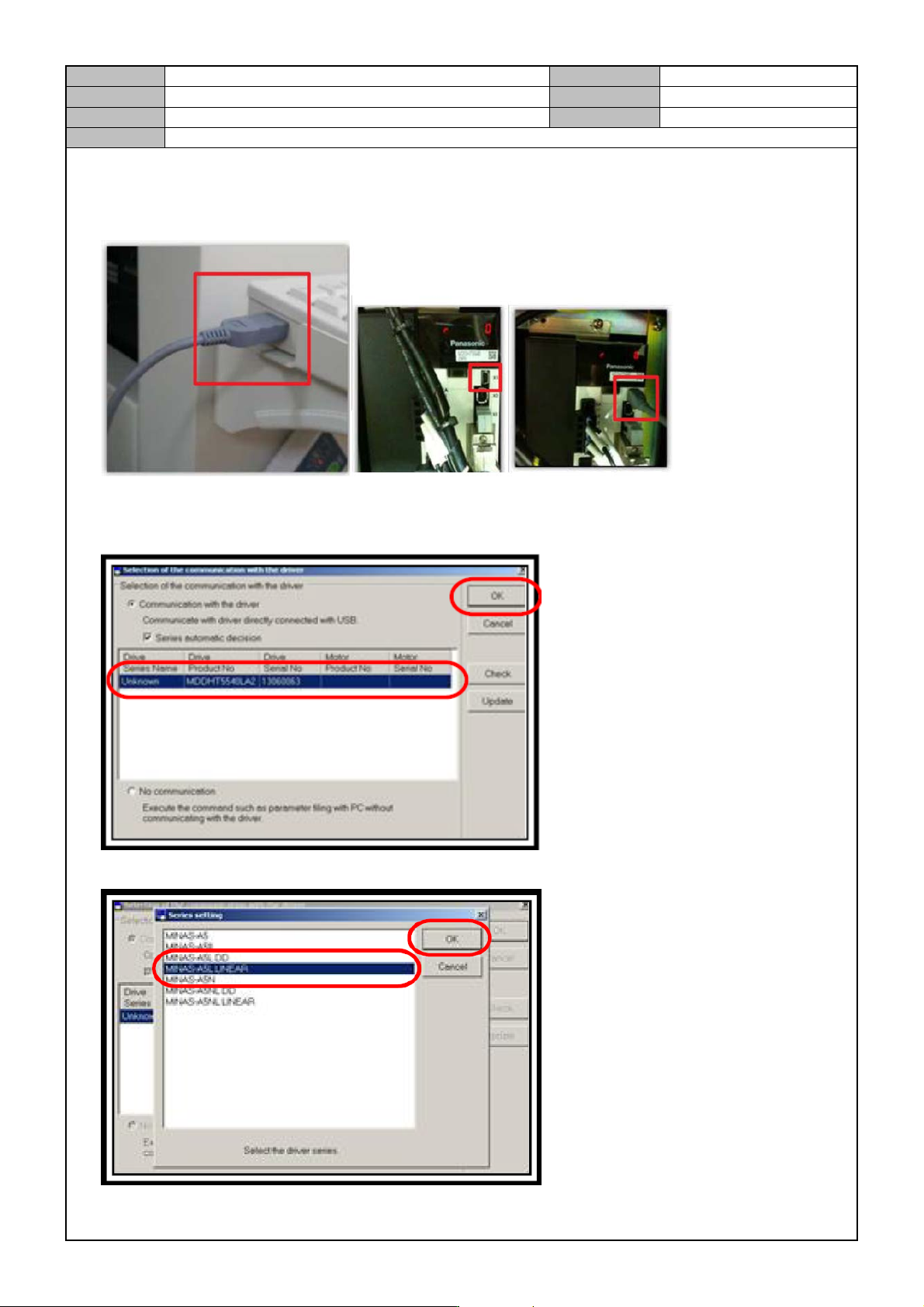

1. Using the Parameter Cable, connect the Keyboard USB Port to the Y1 Motor Amplifier's X1 terminal.
2. Run the PANATERM Ver.5.0 program.
3. After selecting <MDDHT5540LA2>, press [OK].
4. After selecting < LINEAR>, press [OK].
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.7 PARAMETER
Version
01
Title
PARAMETER CHECK(Y1, Y2)
Page
3-7-14
Note

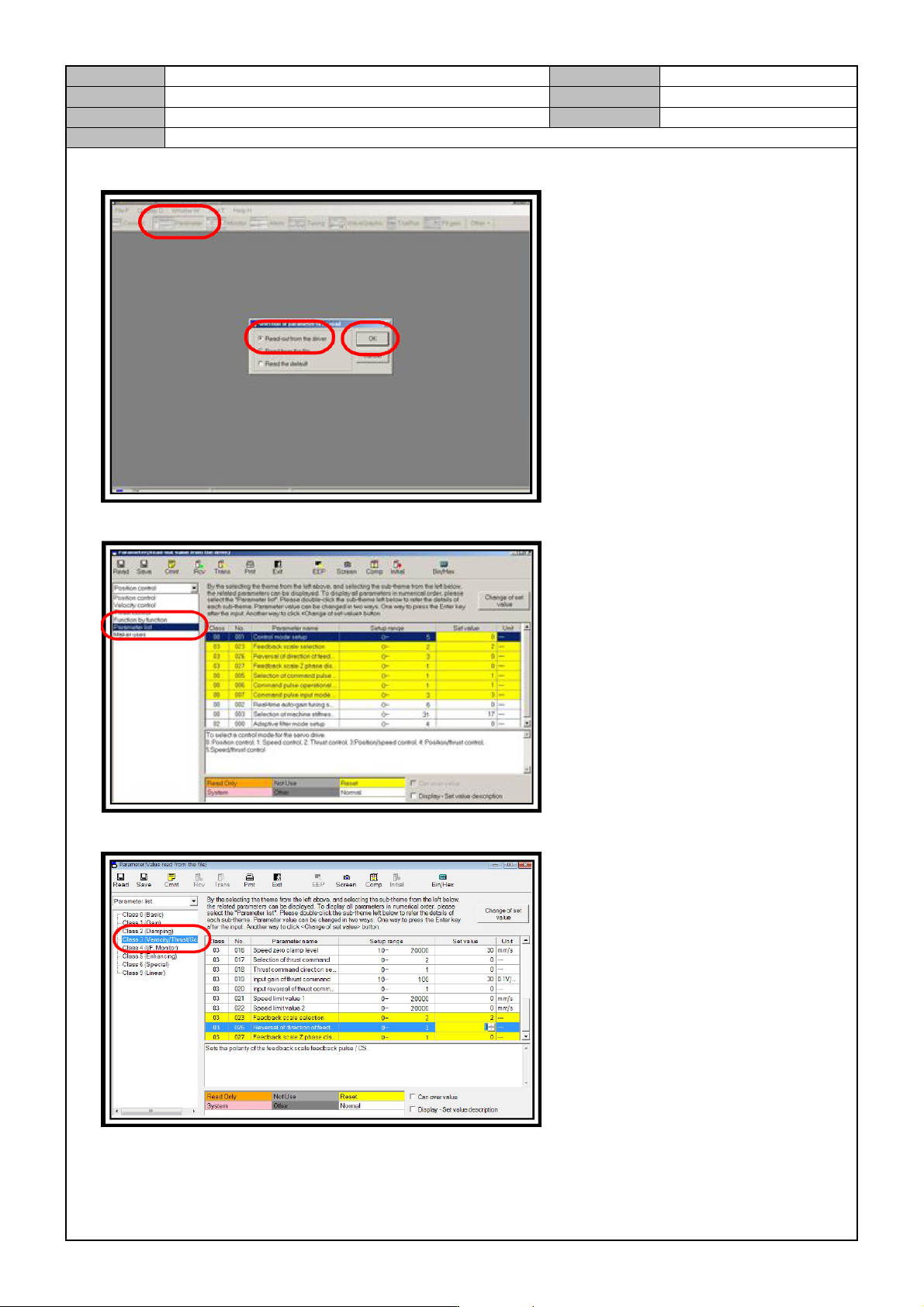

5. Select <PARAMETER> → <READ-OUT FROM THE DRIVER> → <OK>.
6. Select the <PARAMETER LIST> tab.
7. Check number 26 of CLASS 3.
