Model DECAN Series Company SAMSUNG TECHWIN Module 3.1 1 HEAD V ersion 01 Tit le Z, R AXIS MOTOR PULLEY R EASSEMBL Y (L2) Page 3-1 1-53 Note 7. Assemble the Pulle y into the Motor as follows.(fixing torque : 6kgf.cm) 8. A…

100%1 / 355
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (L2)
Page
3-11-52
Note
4. Separate the Spline and the Sensor Dog.
5. Separate the Cable from the Motor and separate the Z axis Motor.
6. Separate the Pulley by releasing the Fixing Set Screws.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (L2)
Page
3-11-53
Note

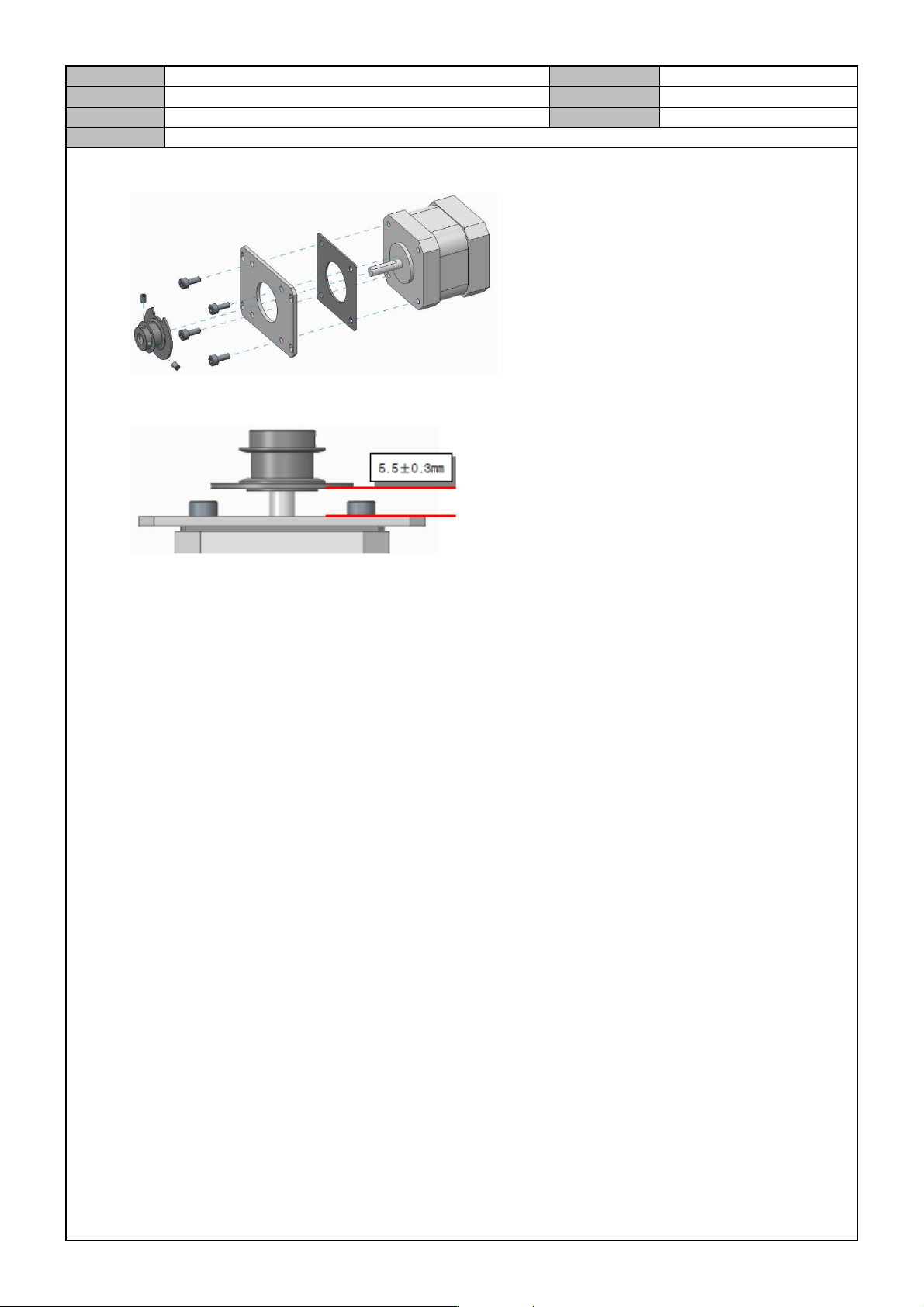

7. Assemble the Pulley into the Motor as follows.(fixing torque : 6kgf.cm)
8. Assemble the Motor in the reverse order of assembly and adjust the tension by referring to the Z axis Belt
Tension guides.
R axis Motor Pulley
1. Separate the Air Pressure Tube and the Cable connected to the Air Module of the Air Head.
2. Separate the R Sensor Assy.
3. Separate the Cable from the Motor and separate the R axis Motor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (L2)
Page
3-11-54
Note
4. Separate the Pulley by releasing the Fixing Set Screws.
5. Assemble the Pulley into the Motor as follows.(fixing torque : 6kgf.cm)
6. Assemble the Motor in the reverse order of assembly and adjust the tension by referring to the R axis Belt
Tension guides.
