Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
MAIN POWER SHORT TEST
Page
3-19-9
Note
8. Measure the insulation resistance/power at the AC 220V input and the DC 24V output.
Measure the insulation resistance at the AC220V input.
Inspection units Inspection criteria
PS#1 AC input : L, N 900 ~ 1050KΩ
PS#2 AC input : L, N 900 ~ 1050KΩ
PS#3 AC input : L, N 900 ~ 1050KΩ
PS#4 AC input : L, N 900 ~ 1050KΩ
PS#5 AC input : L, N 900 ~ 1050KΩ
PS#6 AC input : L, N 900 ~ 1050KΩ
DC24V output's insulation resistance
Inspection units Inspection criteria
PS#1 DC output : +, - 900 ~ 1050KΩ
PS#2 DC output : +, - 900 ~ 1050KΩ
PS#3 DC output : +, - 900 ~ 1050KΩ
PS#4 DC output : +, - 900 ~ 1050KΩ
PS#5 DC output : +, - 900 ~ 1050KΩ
PS#6 DC output : +, - 900 ~ 1050KΩ
AC220V input power
Inspection units Inspection criteria
PS#1 AC input : L, N AC 220V±10
PS#2 AC input : L, N AC 220V±10
PS#3 AC input : L, N AC 220V±10
PS#4 AC input : L, N AC 220V±10
PS#5 AC input : L, N AC 220V±10
PS#6 AC input : L, N AC 220V±10
DC24V output power
Inspection units Inspection criteria
PS#1 DC output : +, - DC 24V±0.72
PS#2 DC output : +, - DC 24V±0.72
PS#3 DC output : +, - DC 24V±0.72
PS#4 DC output : +, - DC 24V±0.72
PS#5 DC output : +, - DC 24V±0.72
PS#6 DC output : +, - DC 24V±0.72
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
DC POWER SHORT CHECK
Page
3-19-10
Note
[DC POWER SHORT CHECK]
1. Safety Control Board Dip Switch setting check.
SWITCH DIP SWITCH SETTING
1 No.1,2 : ON
2. Measure the CN1/2 insulation resistance of the Safety Control Board.
Inspection units Inspection criteria
CN1-1 , CN1-3
100MΩ or higher or OPEN
CN2-1 , CN2-3
* Condition : Separate the connector from CN1,CN2.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-11
Note

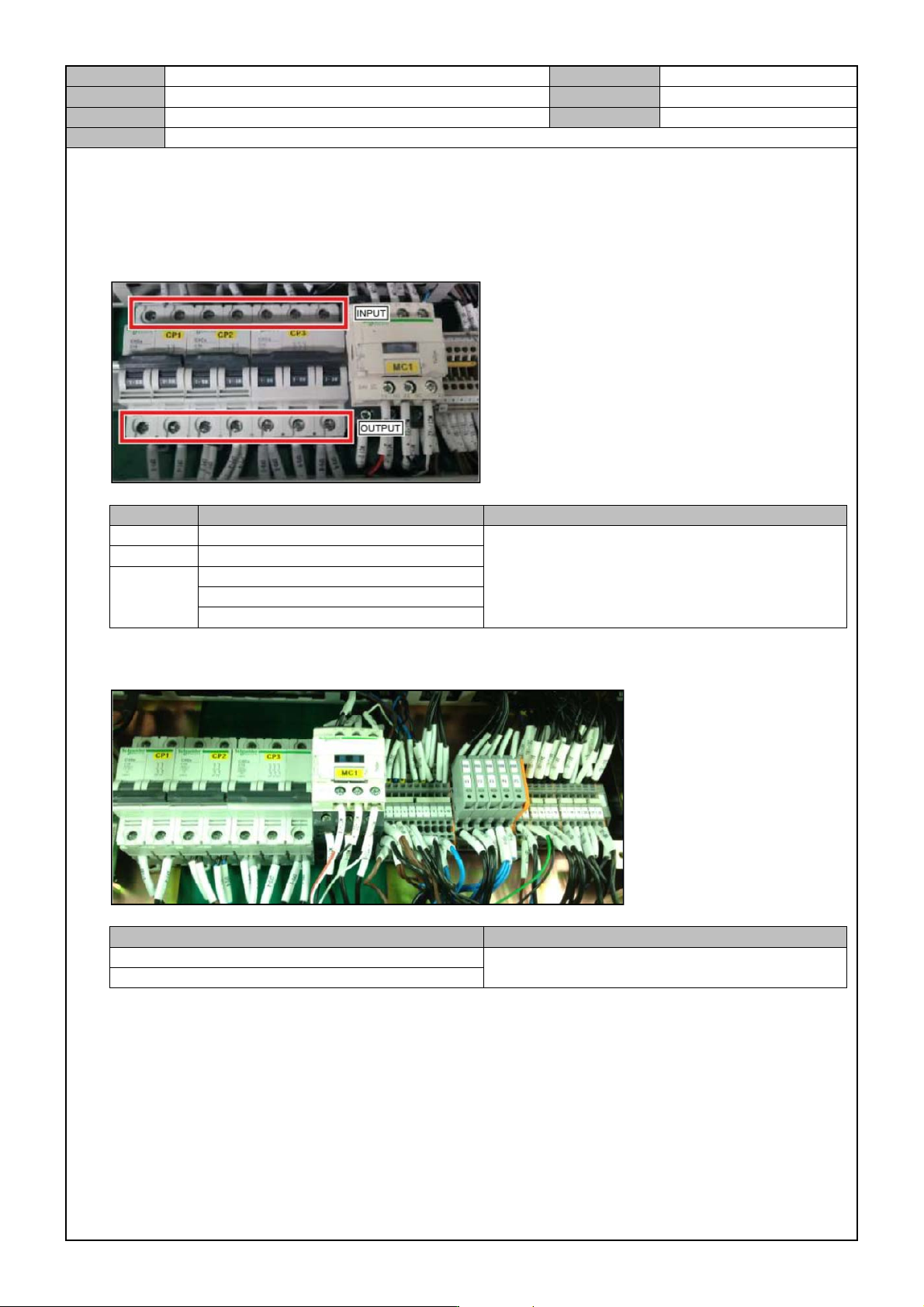

[VOLTAGE CHECK TEST]
AC/DC power activated with Ready OFF.
1. Measure the output power of CP#1,2,3.
No. Inspection units Inspection criteria
CP#1 CP#1 output power : CP1-2 , CP1-4
AC 220V±10
CP#2 CP#2 output power : CP2-2 , CP2-4
CP#3
CP#3 output power : CP3-2 , CP3-4
CP#3 output power : CP3-2, CP3-6
CP#3 output power : CP3-4 , CP3-6
*Condition : CP#1 ON, CP#2 OFF, CP#3 OFF
2. TB#1 AC power measurement
Inspection units Inspection criteria
TB1 AC power measurement : 1L1 , 1L2
AC 220V±10
TB1 AC power measurement : 22R , 22T
*Condition : CP#1 ON, CP#2 ON, CP#3 ON
3. Separate the CN1/2 connectors from the Safety Control Board.
4. Separate the FY1,2 RY1,FX,FS RX RS control power connectors.
5. Turn CP#1,2,3 off.
6. Connect the Main Power Cable to the three phase power terminal.
