Model DECAN Series Company SAMSUNG TECHWIN Module 3.1 1 HEAD V ersion 01 Tit le BALL SPLINE REPLAC EME NT (L2) Page 3-1 1-38 Note 7. After assembling the Ball Spline, check the following. Ball Spline's degree of c…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
BALL SPLINE REPLAC EMENT (L2)
Page
3-11-37
Note
4. Separate the Spindle and the Sensor Dog.
5. Separate the Ball Spline.
6. Replace it with a new Ball Spline.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
BALL SPLINE REPLAC EMENT (L2)
Page
3-11-38
Note
7. After assembling the Ball Spline, check the following.
Ball Spline's degree of concentricity is less than 0.045mm.
Ball Spline's degree of flatness : X direction - 0.015mm or less, Y direction – 0.015mm or less
X axis distance discrepancy 30±0.02mm
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
LM GUIDE ASSEMBLY
Page
3-11-39
Note

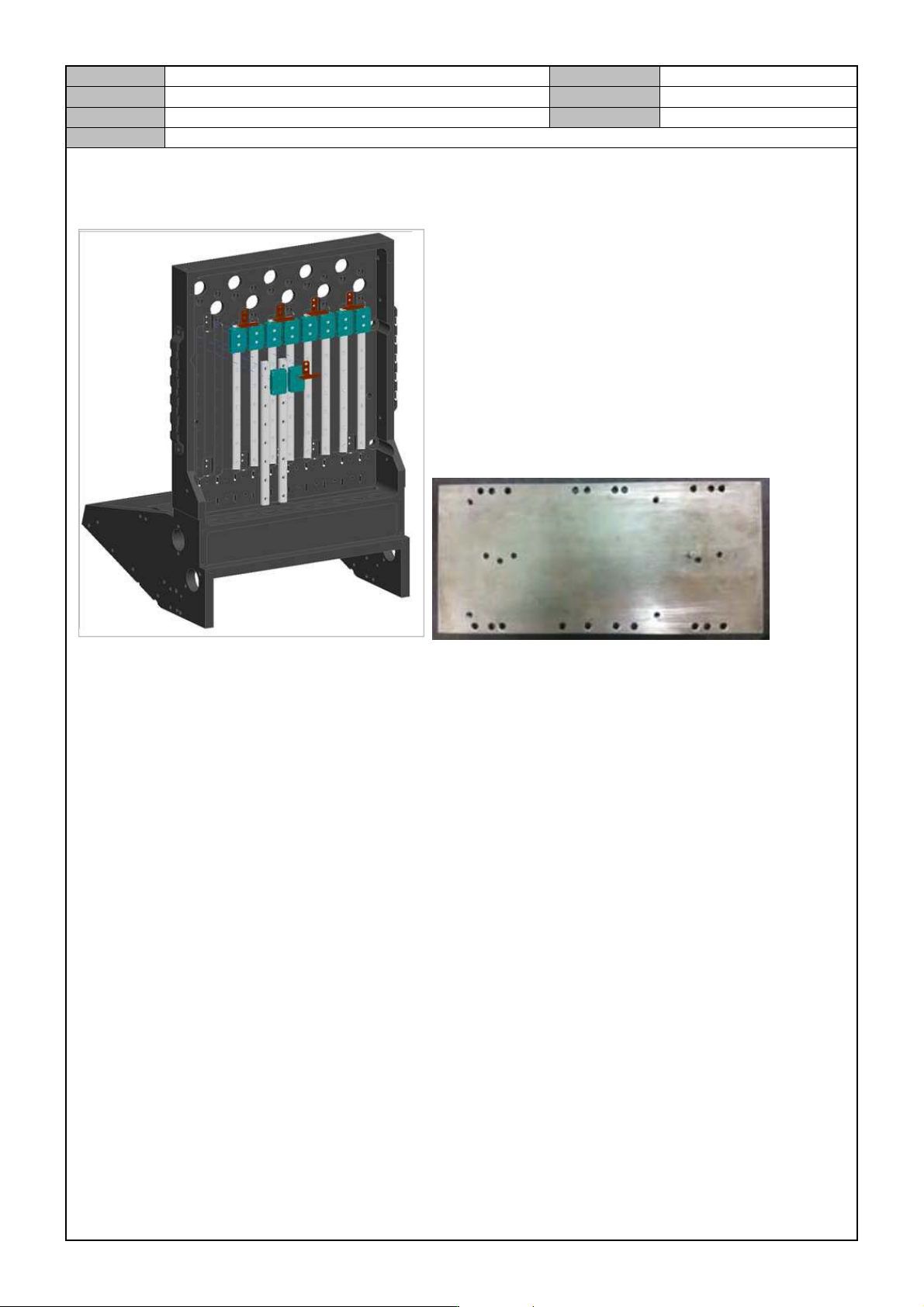

[LM GUIDE ASSEMBLY]
1. Fix the MAIN BODY to the ASSEMBLY BLOCK and firmly attach the LM GUIDE and fix them with
screws.
LM GUIDE's degree of flatness: 0.02mm or less.
Fixing torque: 4Kgf.cm
2. Z STOP PLATE fixed with SCREWS.
Fixing torque: 4Kgf.cm
3. Z_STOP_PLATE fixed with SCREWS.
Fixing torque: 10Kgf.cm
Loctite243
