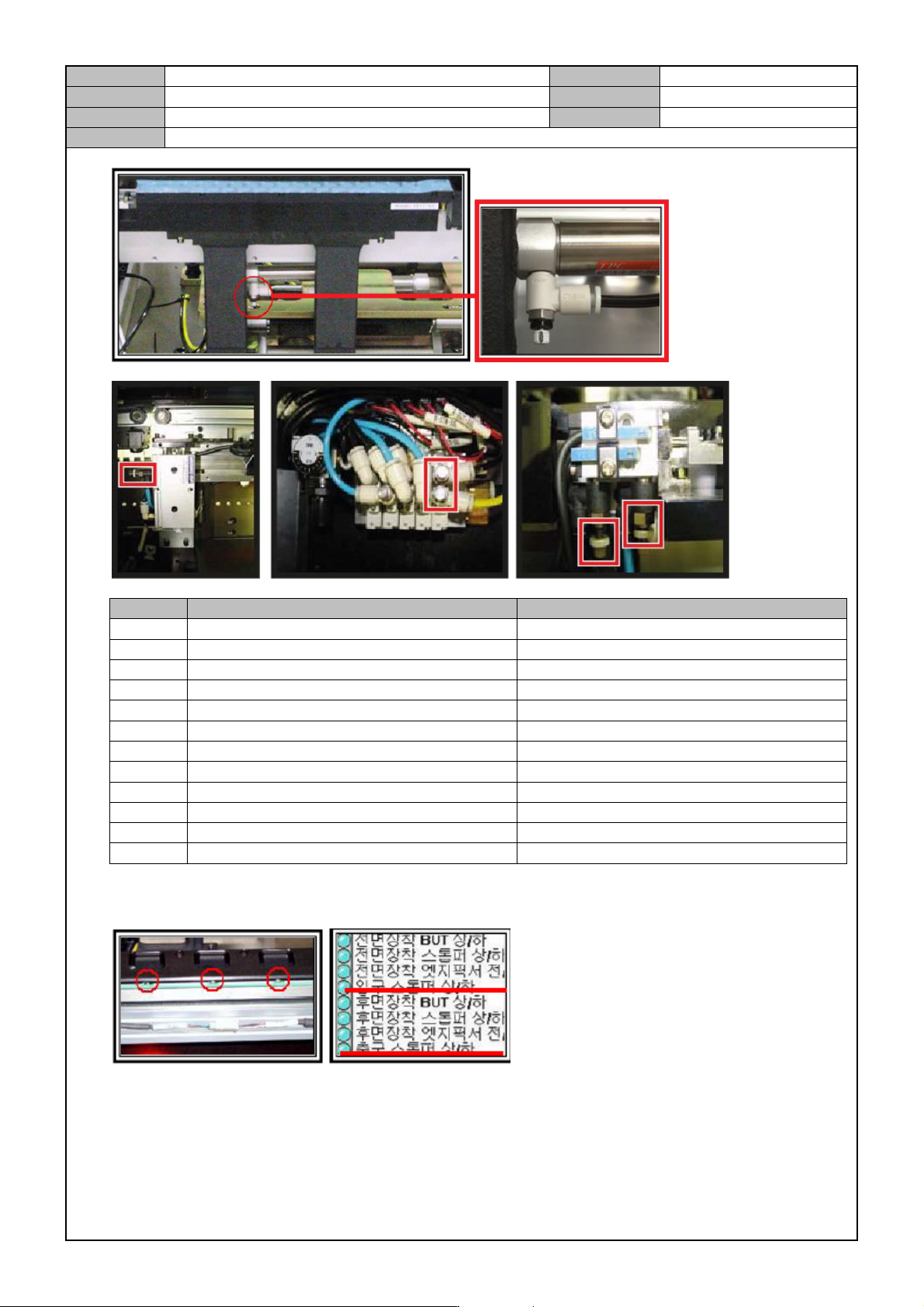

Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MMI IO CHECK PREPARATION
Page
3-12-4
Note
2. Set the Main Air Pressure Digital Gauge to below 0.5 Mpa and set the Vacuum Gauge to below-95kPa.
Air Regulator Setting
1. Connect an air pressure tester to the Regulator and set it to 0.9 ~ 1.1 BAR.
MMI IO Check Preparation
1. Select <Diagnosis> → <I/O>.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MMI IO CHECK(OUTP UT)
Page
3-12-5
Note
[MMI IO CHECK(OUTPUT)]
Check up/down operation of the stopper mounted in the rear/front.
In the IO window, click the <Front/Rear Mounted Stopper Up/Down> button to check operation and input
signal detection.
Check up/down operation of the BUT mounted in the rear/front.
In the IO window, click the <Front/Rear Mounted BUT Up/Down> button to check operation and input
signal detection.
Check operation of the ANC #1,#2 SOL.
In the IO windows, click on <ANC#1,#2> to check operation and input signal detection.
Check Speed Control operation.
In the IO windows, click on <Sys.Setup>→ <I/O>→ <Cylinder Check> and then <Automatic> to adjust
the speed controller to meet the reference value.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MMI IO CHECK(OUTP UT)
Page
3-12-6
Note
No. Item Reference value
1 PLACE STOPPER #1 UP 100~130msec
2 PLACE STOPPER #1 DOWN 100~130msec
3 BACKUP TABLE#1 UP 320±10msec
4 BACKUP TABLE #1 DOWN 95±25mSec
5 PLACE STOPPER #2 UP 80~110msec
6 PLACE STOPPER #2 DOWN 80~110msec
7 BACKUP TABLE #2 UP 320±10msec
8 BACKUP TABLE #2 DOWN 95±25mSec
9 ANC SHUTTER #1 CLOSE 60±10mSec
10 ANC SHUTTER #1 OPEN 40~50msec
11 ANC SHUTTER #2 CLOSE 60±10mSec
12 ANC SHUTTER #2 OPEN 40~50msec
Check operation of the Front/Rear Edge Fixer.
In the I/O window, click on <Front/Rear Mounted Edge Fixer Back/Forth> to check operation.
