Model DECAN Series Company SAMSUNG TECHWIN Module 3.10 FEEDER V ersion 01 Tit le CONTROL BOA RD REPLACEMEN T Page 3-10-15 Note [CONTROL BOARD REPLACEMENT] 1. After removing the fixing bolts for the r ight cover(19- M2.5*…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
SPLICING MOTOR REPLACEMENT
Page
3-10-14
Note
7. Turn the Motor gear CCW and CW to check if the same force is applied to the motor and then completely fix
the screws.
8. Connect the Motor Cable to the Main Board and assemble the cover.
9. Set it after finishing replacement.
- Home setting, Sensor initialization, Mapping
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
CONTROL BOARD REPLACEMENT
Page
3-10-15
Note
[CONTROL BOARD REPLACEMENT]
1. After removing the fixing bolts for the right cover(19-M2.5*0.45), separate the right cover from the Feeder.
2. Disconnect the connector from the main board.
3. After removing the fixing bolts for the main board(4-M3X0.5) , separate the main board from the Feeder.
4. Replace with a new main board.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
CONTROL BOARD REPLACEMENT
Page
3-10-16
Note

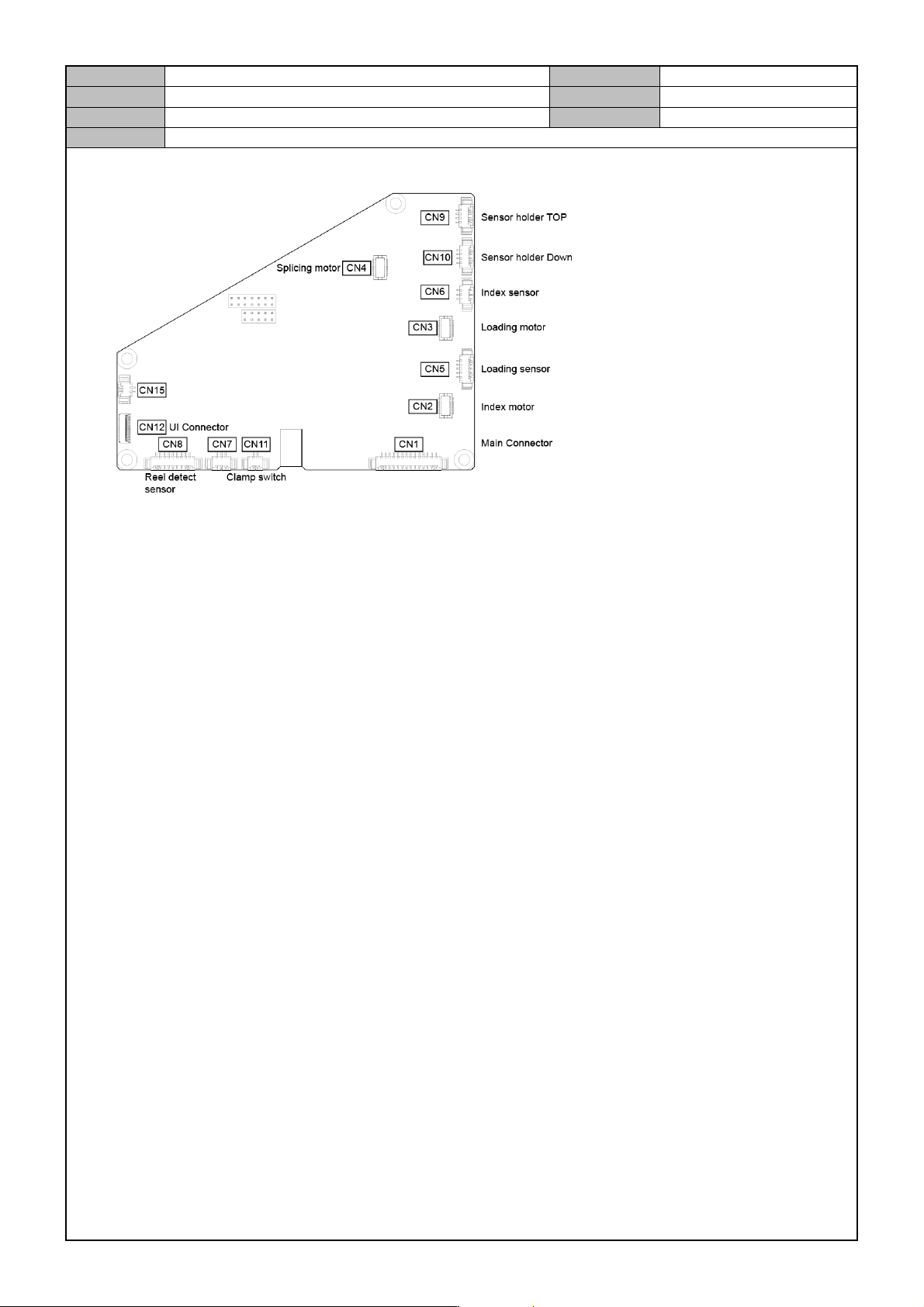

5. Connect the connector to the main board, while referring to the diagram below.
6. Cover assembly
7. Set it after finishing replacement.
- Home setting, Sensor initialization, Mapping
