Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
LM GUIDE ASSEMBLY
Page
3-11-39
Note
[LM GUIDE ASSEMBLY]
1. Fix the MAIN BODY to the ASSEMBLY BLOCK and firmly attach the LM GUIDE and fix them with
screws.
LM GUIDE's degree of flatness: 0.02mm or less.
Fixing torque: 4Kgf.cm
2. Z STOP PLATE fixed with SCREWS.
Fixing torque: 4Kgf.cm
3. Z_STOP_PLATE fixed with SCREWS.
Fixing torque: 10Kgf.cm
Loctite243
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title

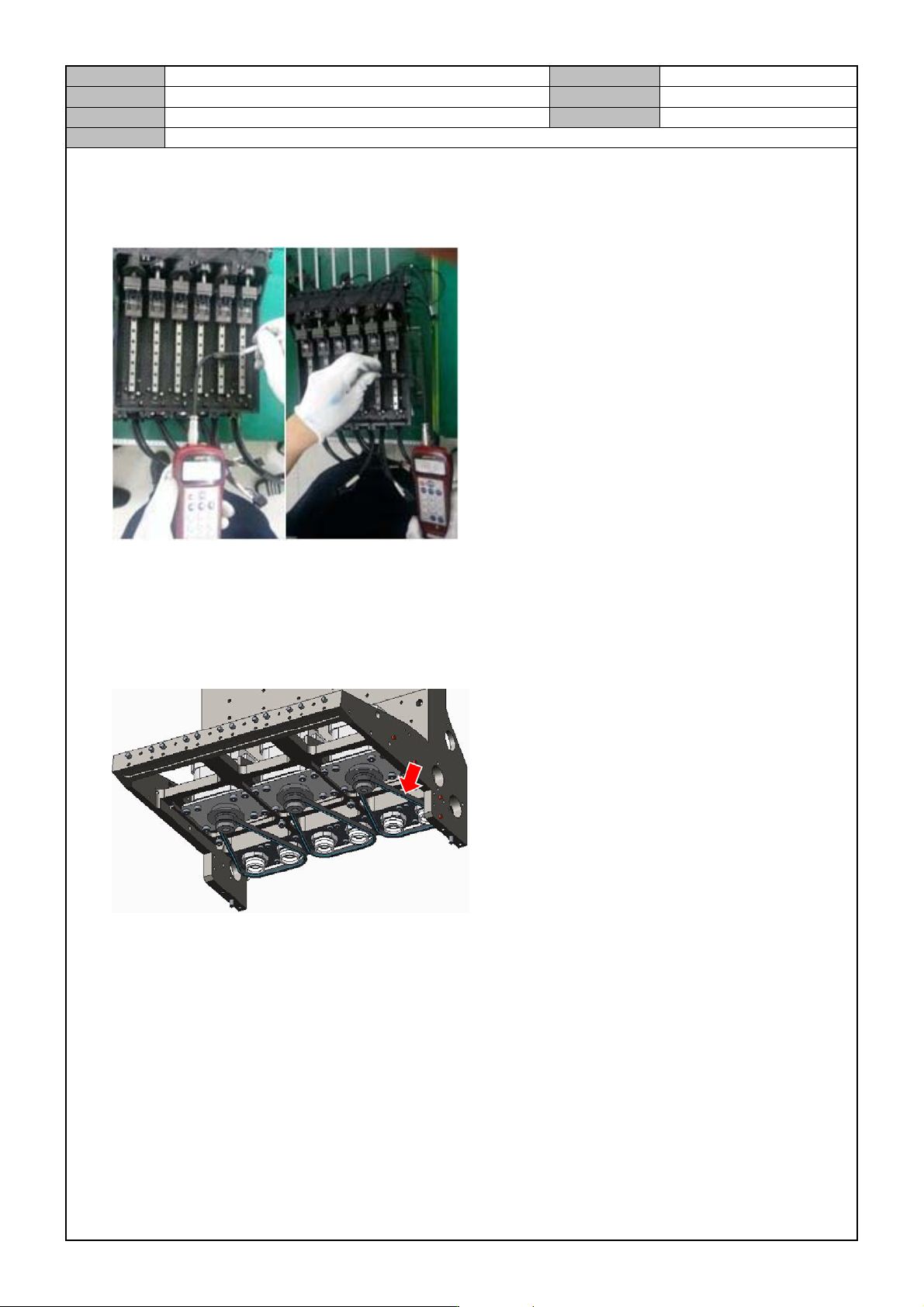

Z, R AXIS BELT TENSION ADJUSTMENT (F2)
Page
3-11-40
Note
[Z, R AXIS BELT TENSION ADJUSTMENT (F2)]
Z axis
Belt Tension Value : 136~175Hz
Belt Tension Measurement Location :Middle of the belt.
Belt Tension Adjustment: Use fixing bolts for the Z Idle.
R axis
Belt Tension Value : 409~467Hz
Belt Tension Measurement Location : Middle of the belt.
Belt Tension Adjustment: Use the fixing bolts for the Z axis Motor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS BELT TENSION ADJUSTMENT (L2)
Page
3-11-41
Note
[Z, R AXIS BELT TENSION ADJUSTMENT (L2)]
Z axis
Belt Tension Value : 170~210Hz
Belt Tension Measurement Location : Lower the Spline to the bottom and fix the four bolt in the top of
the LM Guide.
Belt Tension Adjustment: Use fixing bolts for the Z Idle.
R axis
Belt Tension Value : 297~370Hz
Belt Tension Measurement Location : Middle of the belt.
Belt Tension Adjustment: Use the fixing bolts for the Z axis Motor.
