Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
MAIN MANIFOLD AIR PRESSURE CONNECTION
Page
3-18-13
Note
No. Air Pressure Tube Spec Unit(mm) START END Remarks
11 [U2-4-8*5](BLACK) 3700
MAIN
MANIFOLD
RIGHT
CONVEYOR SOL
D
12 [U2-4-6*4](BLACK) 3200
MAIN
MANIFOLD
FRONT HEAD
STRONG BLOW
13 [U2-4-6*4](YELLOW) 2700
MOUNT BLOW
REGULATOR
FRONT HEAD
BLOW
14 [U2-4-4*2.5](BLACK) 1700 VACUUM PUMP FRONT AIR PANEL
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
MAIN AIR FILTER REPLACEMENT
Page
3-18-14
Note

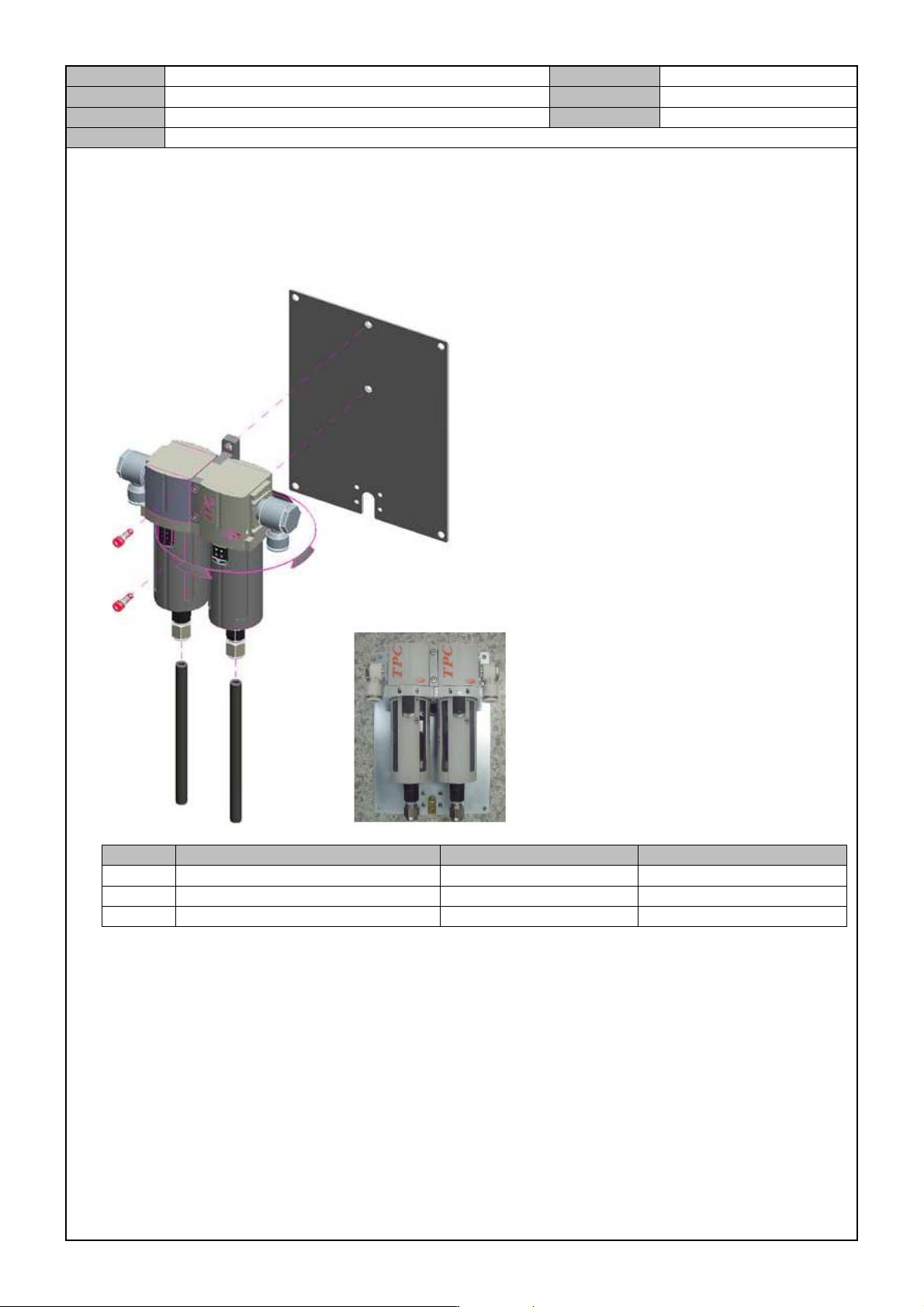

[MAIN AIR FILTER REPLACEMENT]
1. Separate the air pressure tube connected to the mist separator in the bottom rear of the equipment.
2. Separate the Mist Separator by releasing the fixing bolts.
No. Part name Specification Remarks
1 REAR AIR PANEL -
2 ASSY,AIR-MAIN FILTER PC3C-03D-R9843
3 AIR TUBE (POLYURETHANE) U2-4-10*6.5 (BLACK) 300mm(Black)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
VACUUM PUMP REPLACEMENT
Page
3-18-15
Note

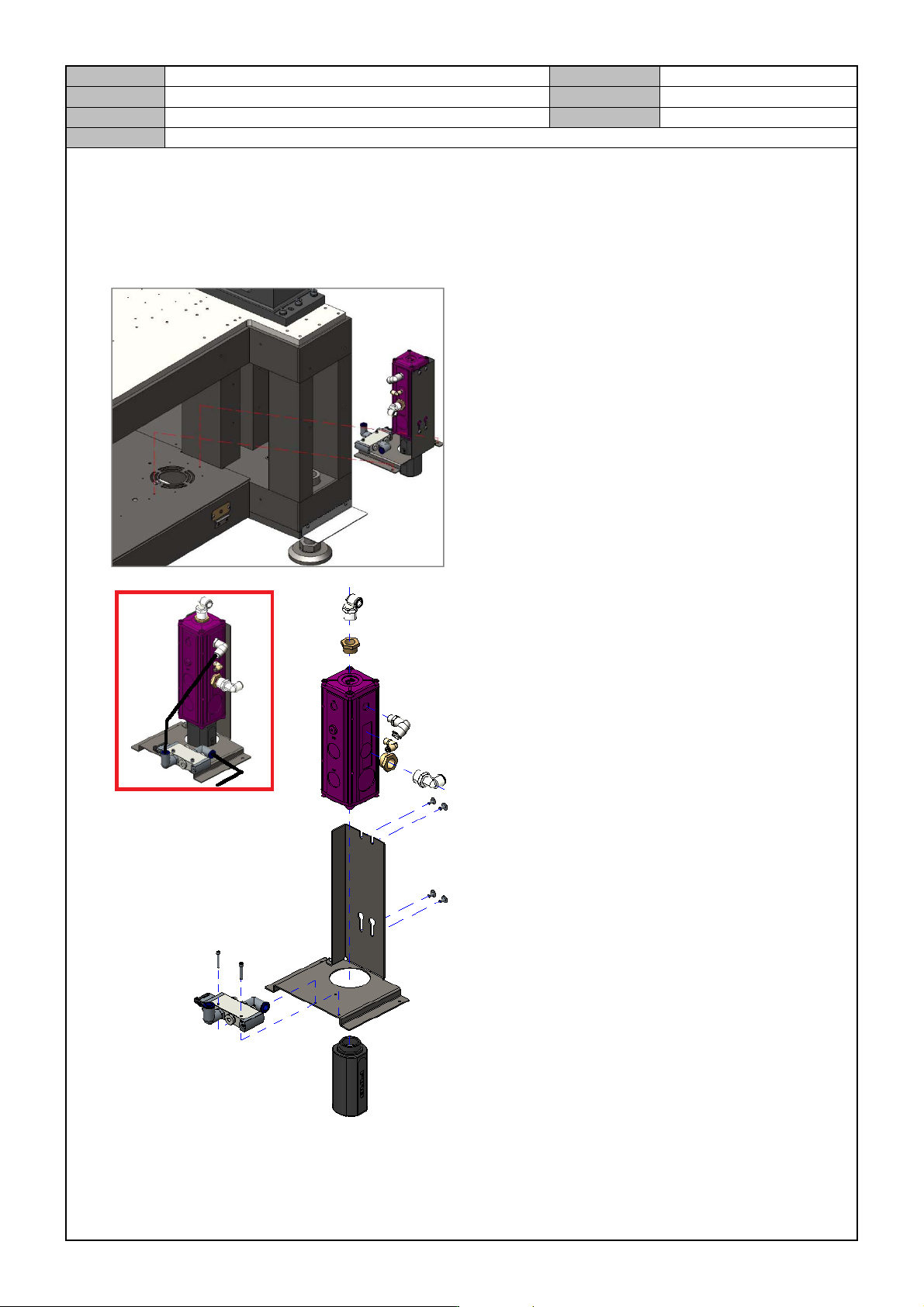

[VACUUM PUMP REPLACEMENT]
1. Separate the air pressure tube connected to the vacuum tube in the bottom front of equipment.
2. Remove the fixing bolts from the Vacuum Pump to separate it.
