Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD EXTERIOR CHECK
Page
3-11-12
Note
[HEAD EXTERIOR CHECK]
Head exterior checkpoints
Check if the head has no contact sticker attached or damaged.
Check the Fiducial Camera Dip Switch setting.
Check the fixing of the Sol Valve Cable and check if the Head Cover is interfered with.
Check for alien substances in the Head Ball Spline, and the Slide Ar m.
Check for Coil Spring breakages or dents.
Check for alien substances in the Fly Camera or Mirror.
Check the Mirror CAM Spring for breakage or deformation and interference with the cable.
Check if the Head Motor Cable and the X Frame interfere with each other.
Check various Sensor Cable fixing and damages.
Gently pull the air tube and see if it is removed.
Check for operational interferences or problems.
Evaluation criteria
There should be no fixing failures in the air hole of the Air Distributor.
Fiducial Camera's Dip Switch No4,10 should be turned on.
Z-axis Coil Tube should be firmly attached and fixed to the fitting.
There should be no cable interferences, shell damages or connection failures.
Z-axis Spring should be free of damages or missing items.
NO contact sticker should be damaged.
Vacuum Filter should not be broken or shaking.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD ASSEMBLY (F2)
Page
3-11-13
Note

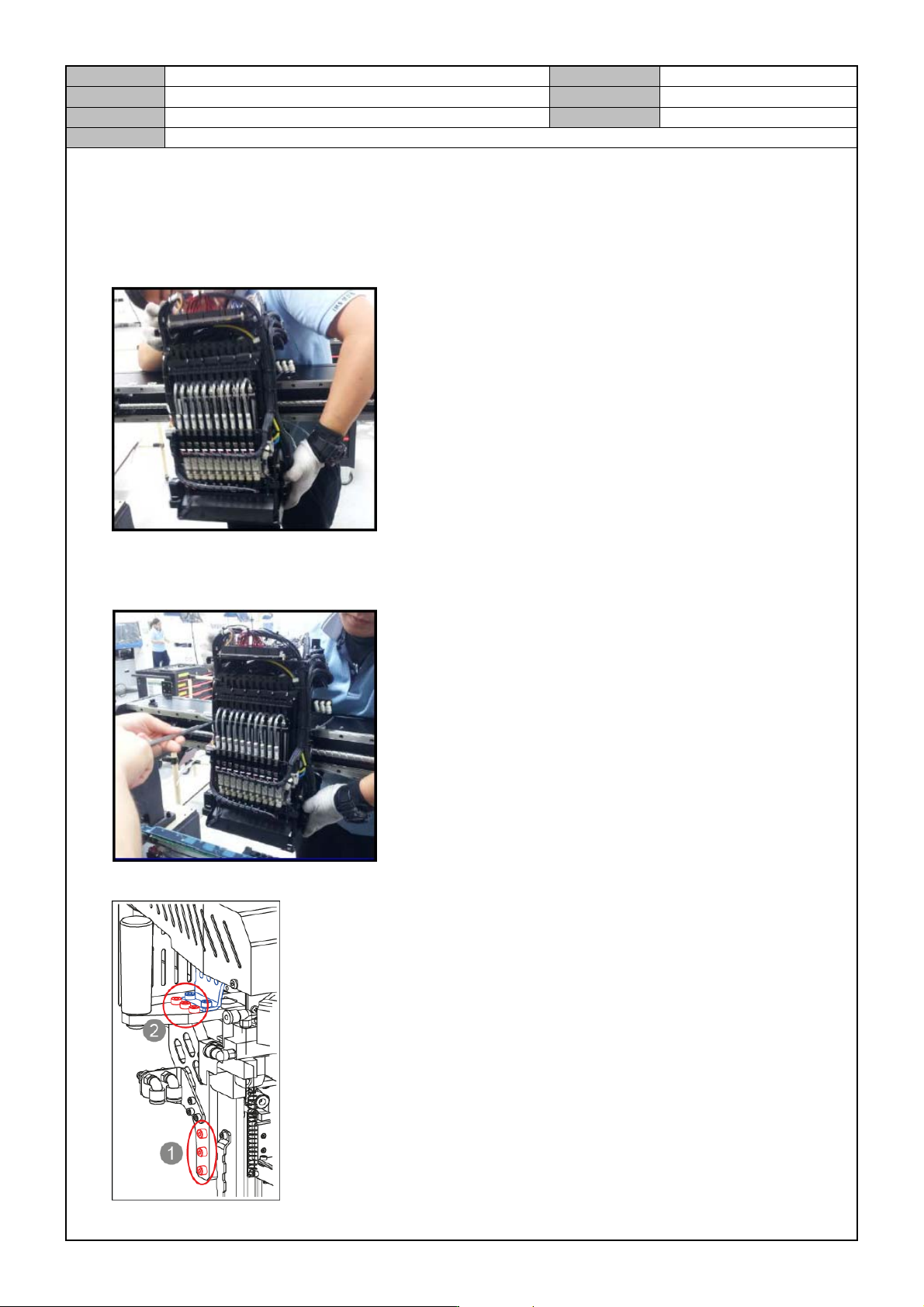

[HEAD ASSEMBLY (F2)]
1. Clean the Head Base.
2. Mount the Head in the Head Base.
*Z Motor should not collide with the Head Base, causing damages.
*Torque : 45
3. Adjust the pin and assemble it.
4. Temporarily fix screw 1/2 of the Harness Support unit.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD ASSEMBLY (F2)
Page
3-11-14

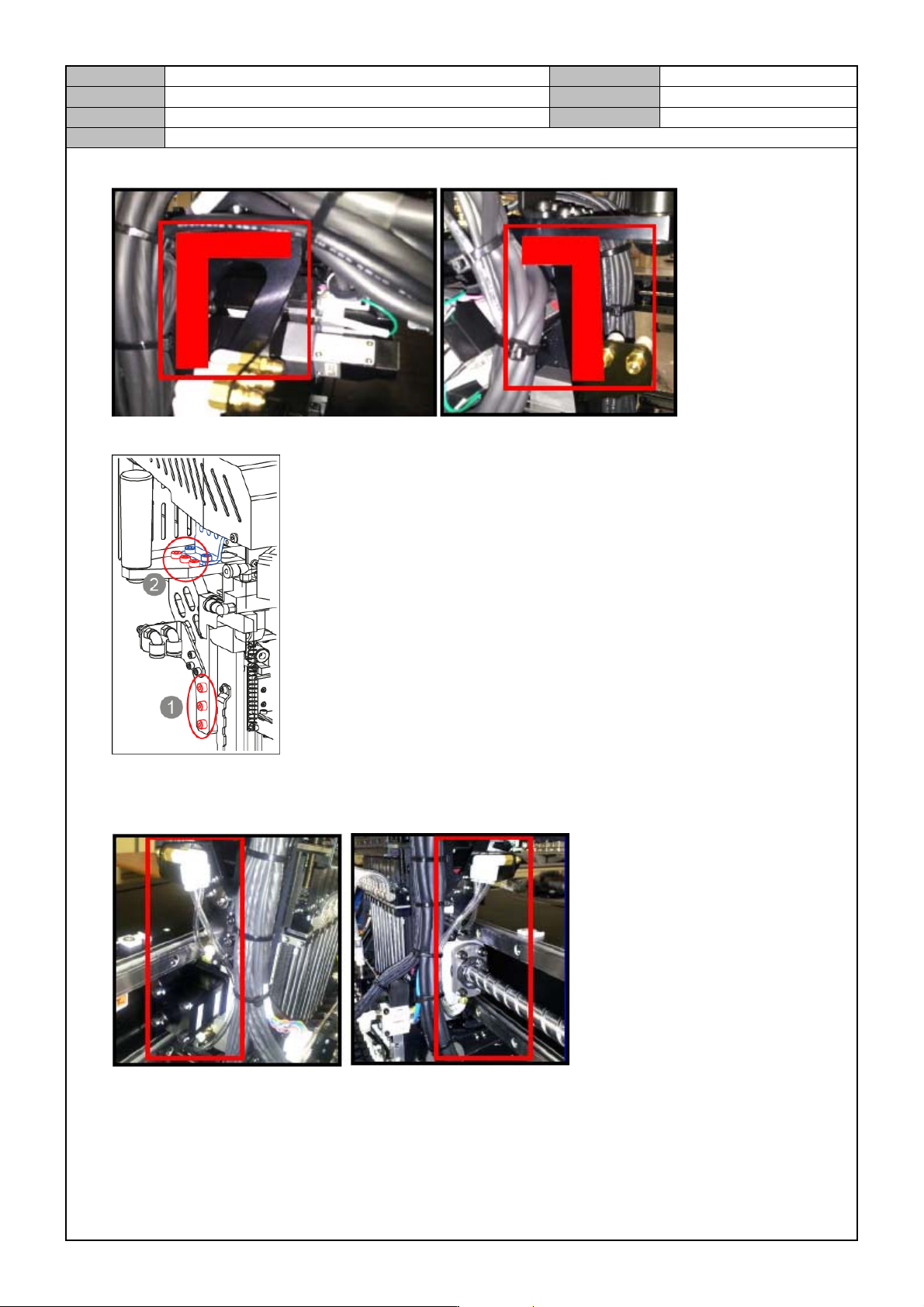

Note
5. Remove the sub jig to be delivered to the customer.
6. Completely fix the screws in the Harness Support.
*Torque : 80
7. Connect the left/right grease tube on the head.
8. While moving the head to the left/right on the X axis, check for interference.
