Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le CONVEYOR, ANC HEI GHT CRITE RIA Page 3-5-3 Note [CONVEYOR, ANC HEIGHT CRITERIA] Conveyor T ool: Height gauge (minimum scale: 2um) Cr…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
BELT TENSION CHECK
Page
3-5-2
Note

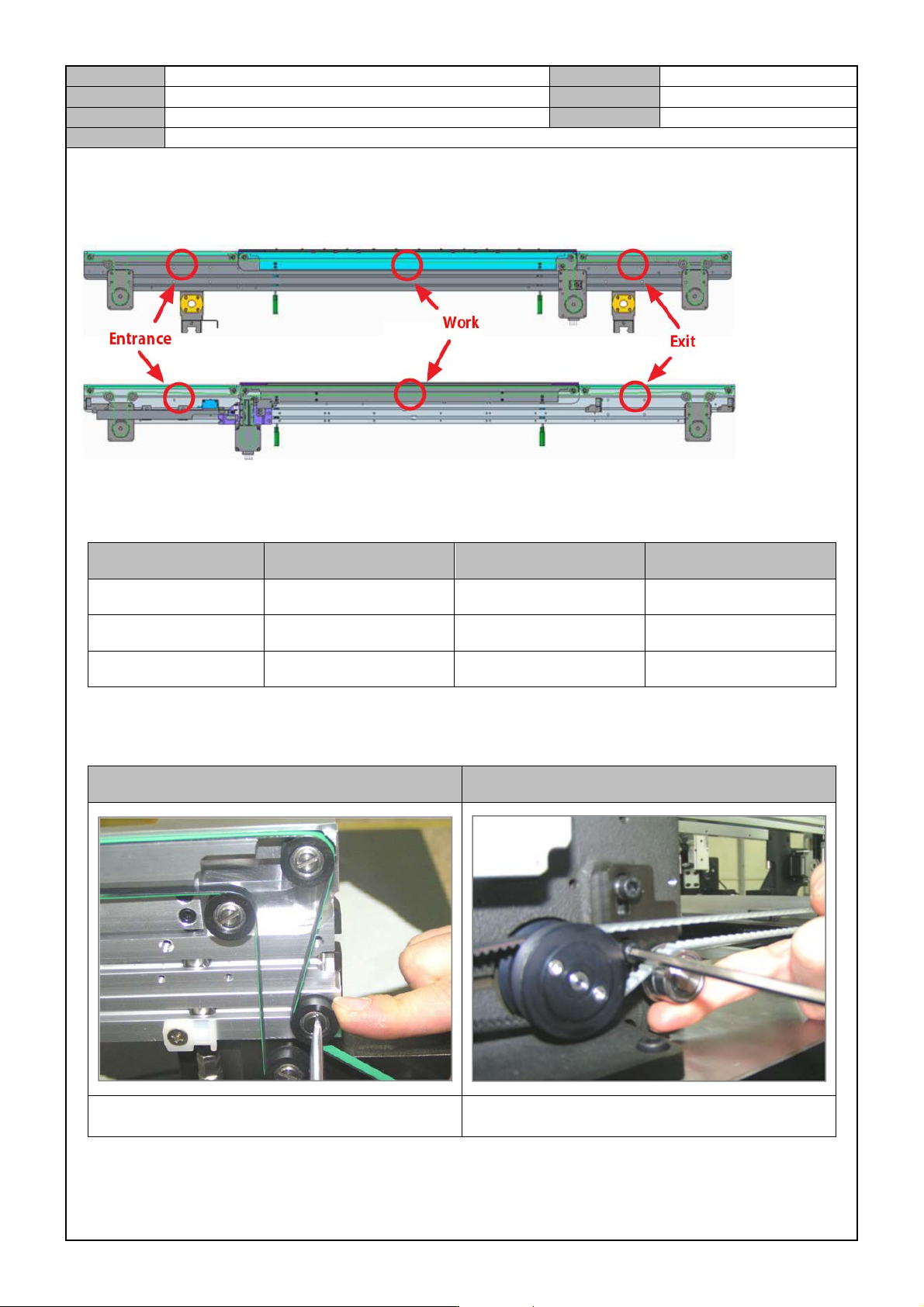

[BELT TENSION CHECK]
* Tension measurement location
* PCB Conveyance Belt Tension Setting Criteria
Classification Entrance Work Exit
PCB conveyance belt
160±10Hz 40±5Hz 160±10Hz
Width adjustment belt
22±2Hz 350±20Hz 22±2Hz
SYNC belt -
22±2.5Hz
-
* Belt Tension Adjustment Method
PCB CONVEYANCE BELT WIDTH ADJUSTMENT BELT
Using the adjustment idler, adjust the tension of the
Belt Work.
Using the Tension Bracket, adjust the Belt Width
Sync Tension.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
CONVEYOR, ANC HEIGHT CRITERIA
Page
3-5-3
Note

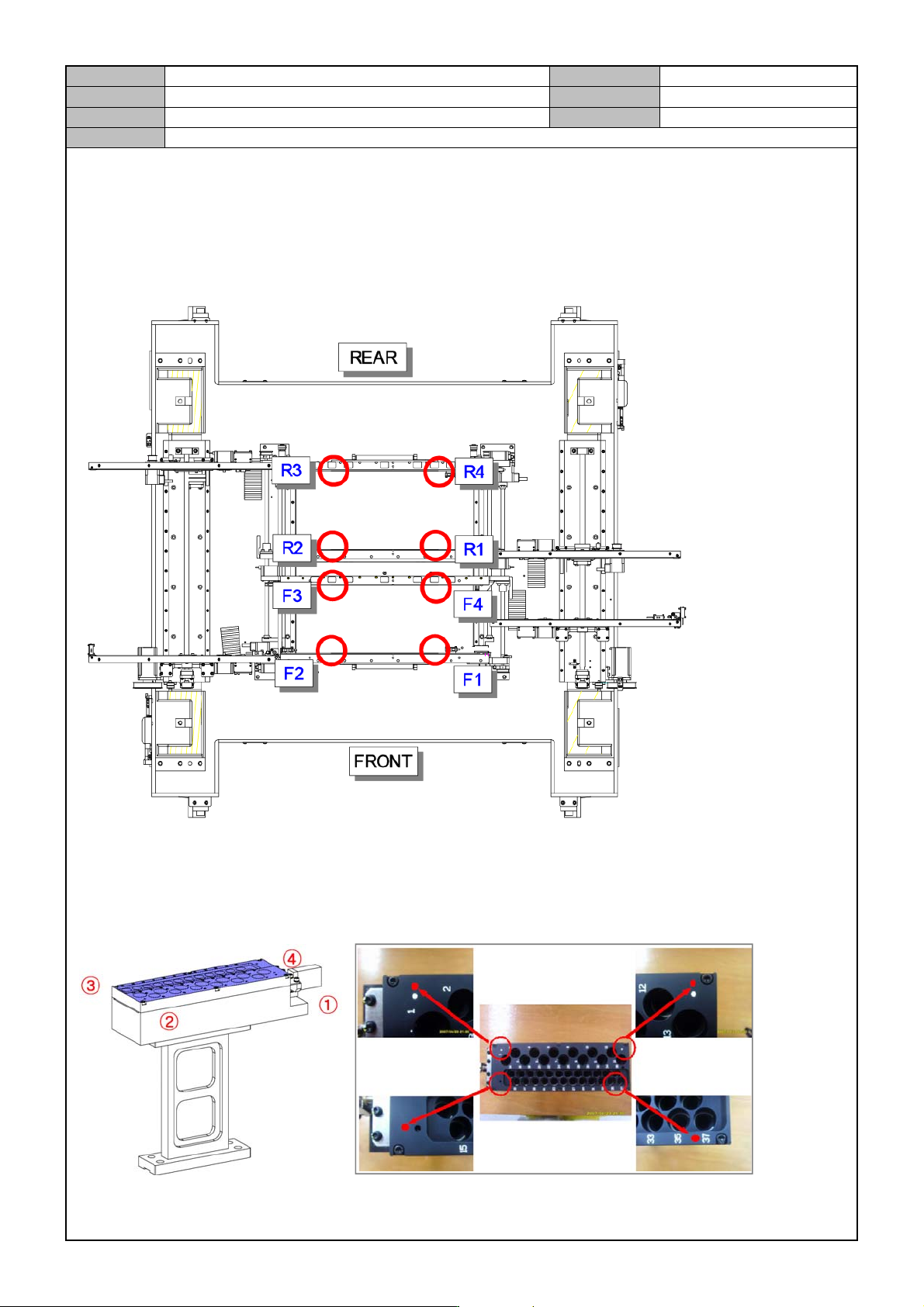

[CONVEYOR, ANC HEIGHT CRITERIA]
Conveyor
Tool: Height gauge (minimum scale: 2um)
Criteria: -0.1 ~ 0.1 mm
ANC
Tool: Height gauge (minimum scale: 2um)
Criteria: -0.05 ~ 0.05 mm
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title

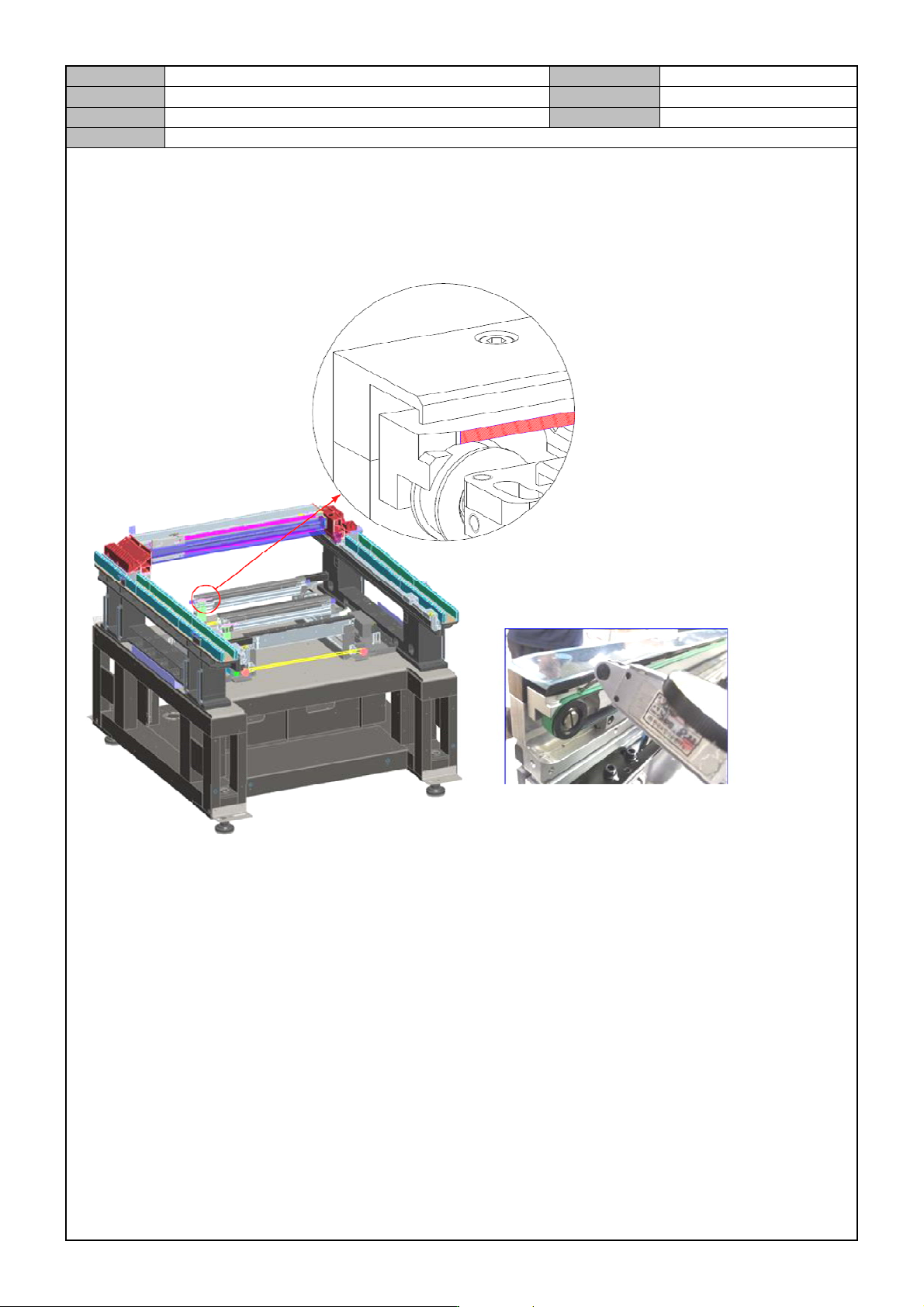

CONVEYOR PCB GUIDE HEIGHT CRITERIA
Page
3-5-4
Note
[CONVEYOR PCB GUIDE HEIGHT CRITERIA]
Tool: Height gauge (minimum scale: 2um)
Criteria: -0.15 ~ 0.15 mm
Measurement location: all over the PCB Guide.
