Model DECAN Series Company SAMSUNG TECHWIN Module 3.1 1 HEAD V ersion 01 Tit le Z, R AXIS SENSOR REPLACEM ENT (L2) Page 3-1 1-45 Note [Z, R AXIS SENSOR REPLACEMENT (L2)] Z axis Sensor 1. Separate the cable connected to…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS SENSOR REPLACEMENT (F2)
Page
3-11-44
Note

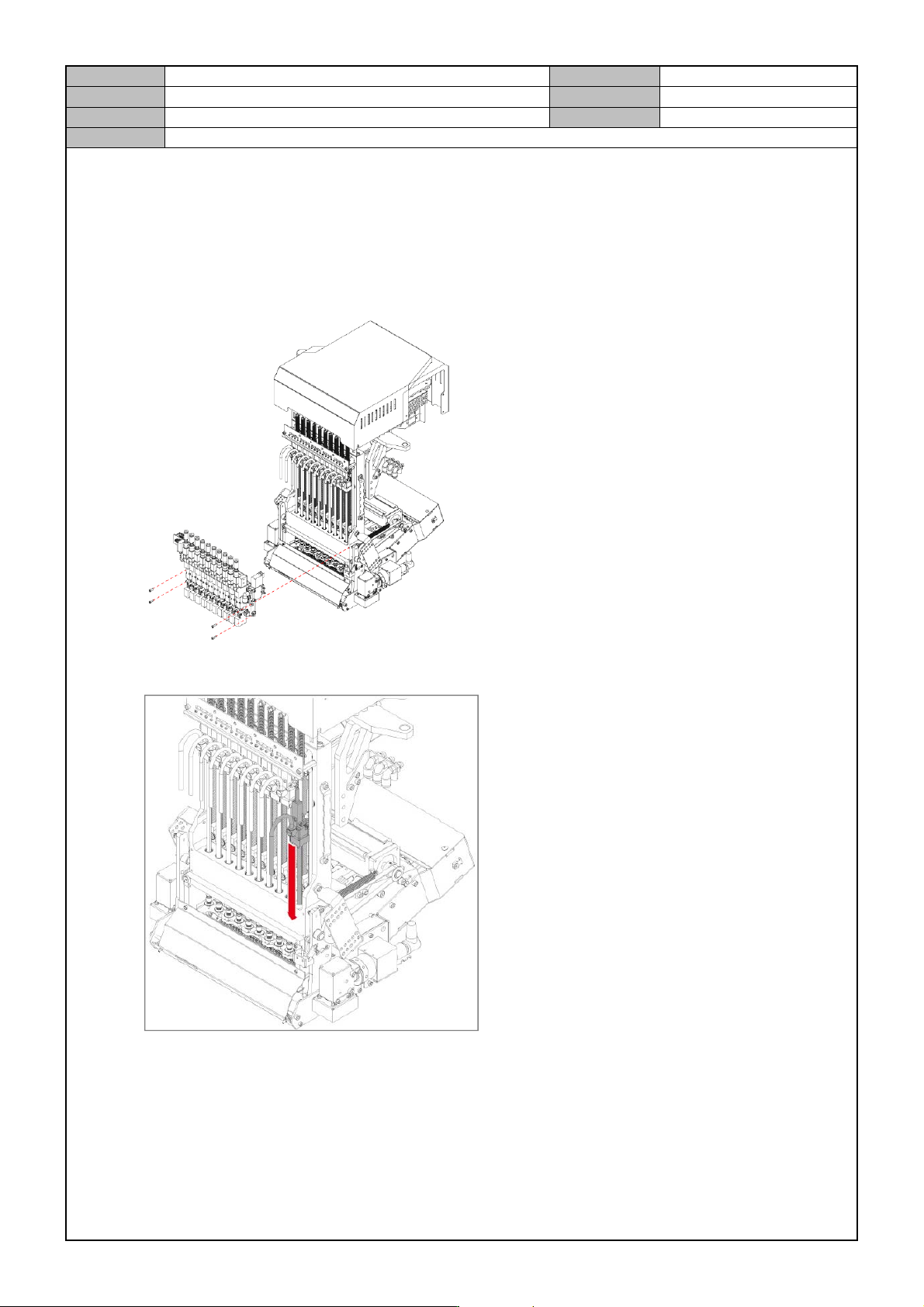

[Z, R AXIS SENSOR REPLACEMENT (F2)]
Z axis Sensor
1. Separate the cable connected to the sensor.
2. Remove the fixing bolts for the sensor to separate it.
3. Replace with a new sensor.
4. Start assembling Z1~Z10 from the left.
5. When assembling it, spray on Loctite243.
R axis Sensor
1. Separate the cable connected to the sensor.
2. Remove the fixing bolts for the sensor to separate it.
3. Replace with a new sensor.
4. When assembling it, spray on Loctite243.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS SENSOR REPLACEMENT (L2)
Page
3-11-45
Note
[Z, R AXIS SENSOR REPLACEMENT (L2)]
Z axis Sensor
1. Separate the cable connected to the sensor.
2. Remove the fixing bolts for the sensor to separate it.
3. Replace with a new sensor.
4. Start assembling Z1~Z10 from the left.
5. When assembling it, spray on Loctite243.
R axis Sensor
1. Separate the cable connected to the sensor.
2. Separate the R axis Sensor Assy by releasing the fixing bolts.
3. Replace with a new sensor.
4. When assembling it, spray on Loctite243.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (F2)
Page
3-11-46
Note
[Z, R AXIS MOTOR PULLEY REASSEMBLY (F2)]
Z axis Motor Pulley
1. Separate the Air Pressure Tube and the Cable connected to the Air Module of the Air Head.
2. Release the fixing bolts for the Air Module and separate the Air Module.
3. Move down the Spindle that you want to separate.
