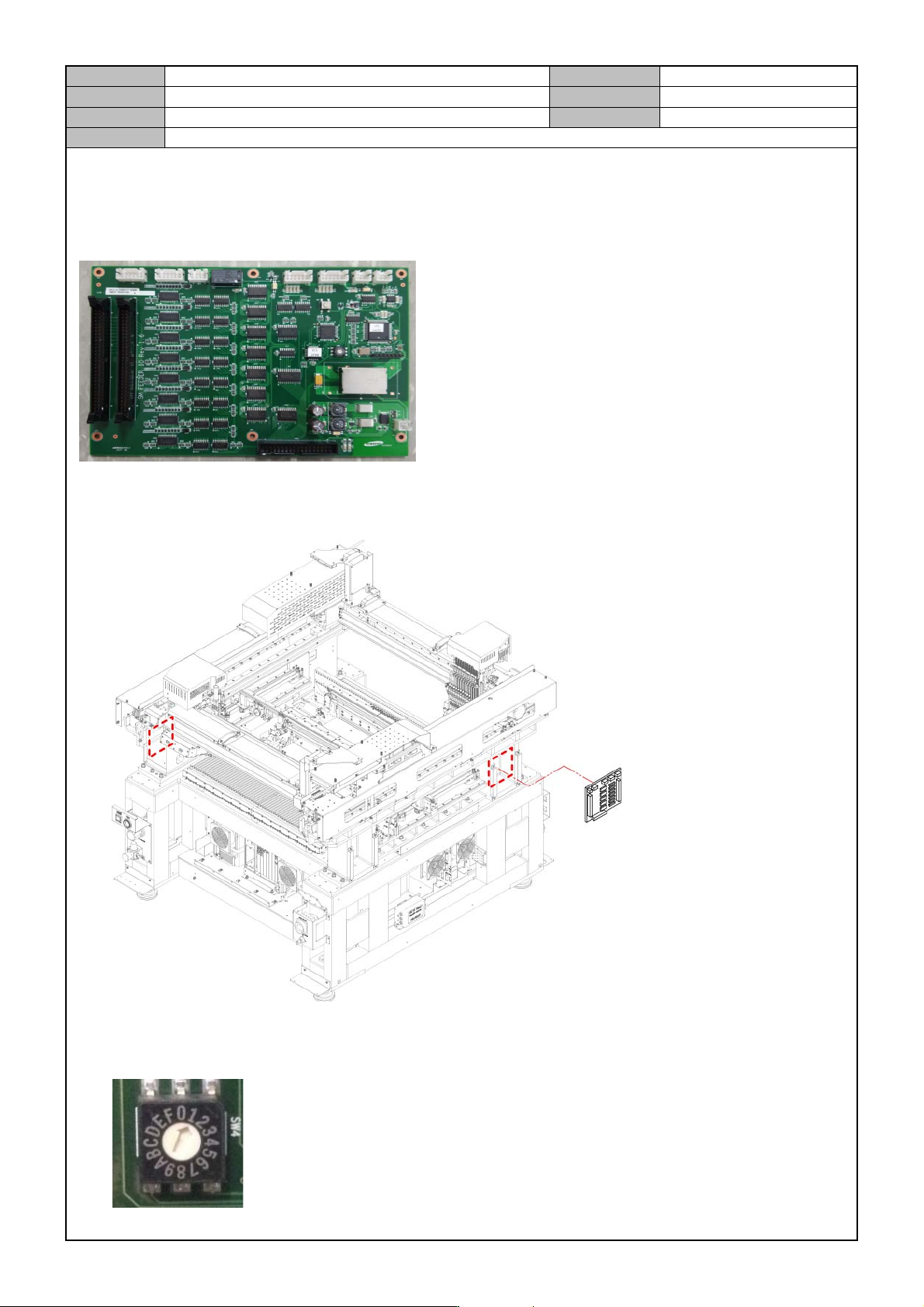

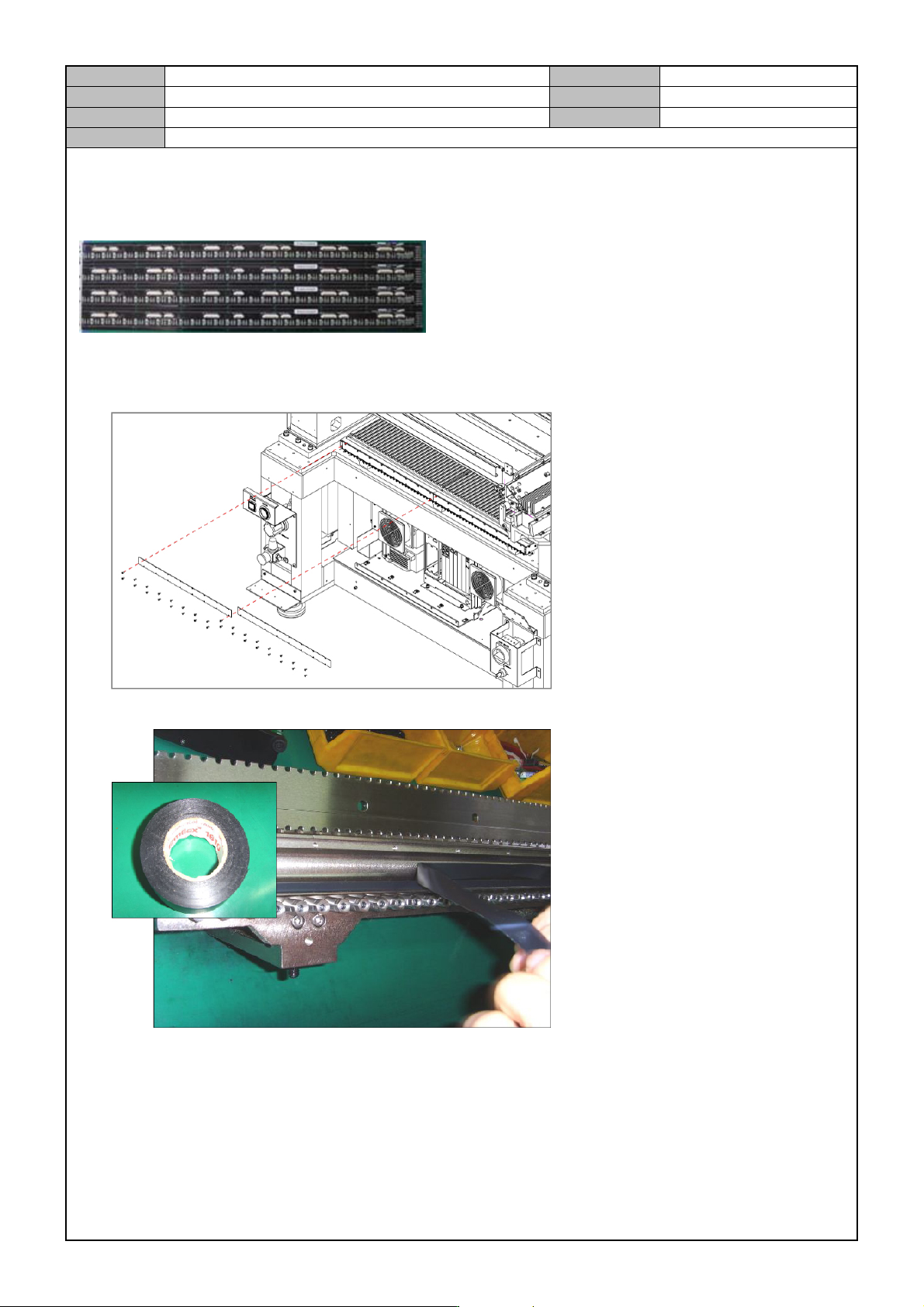

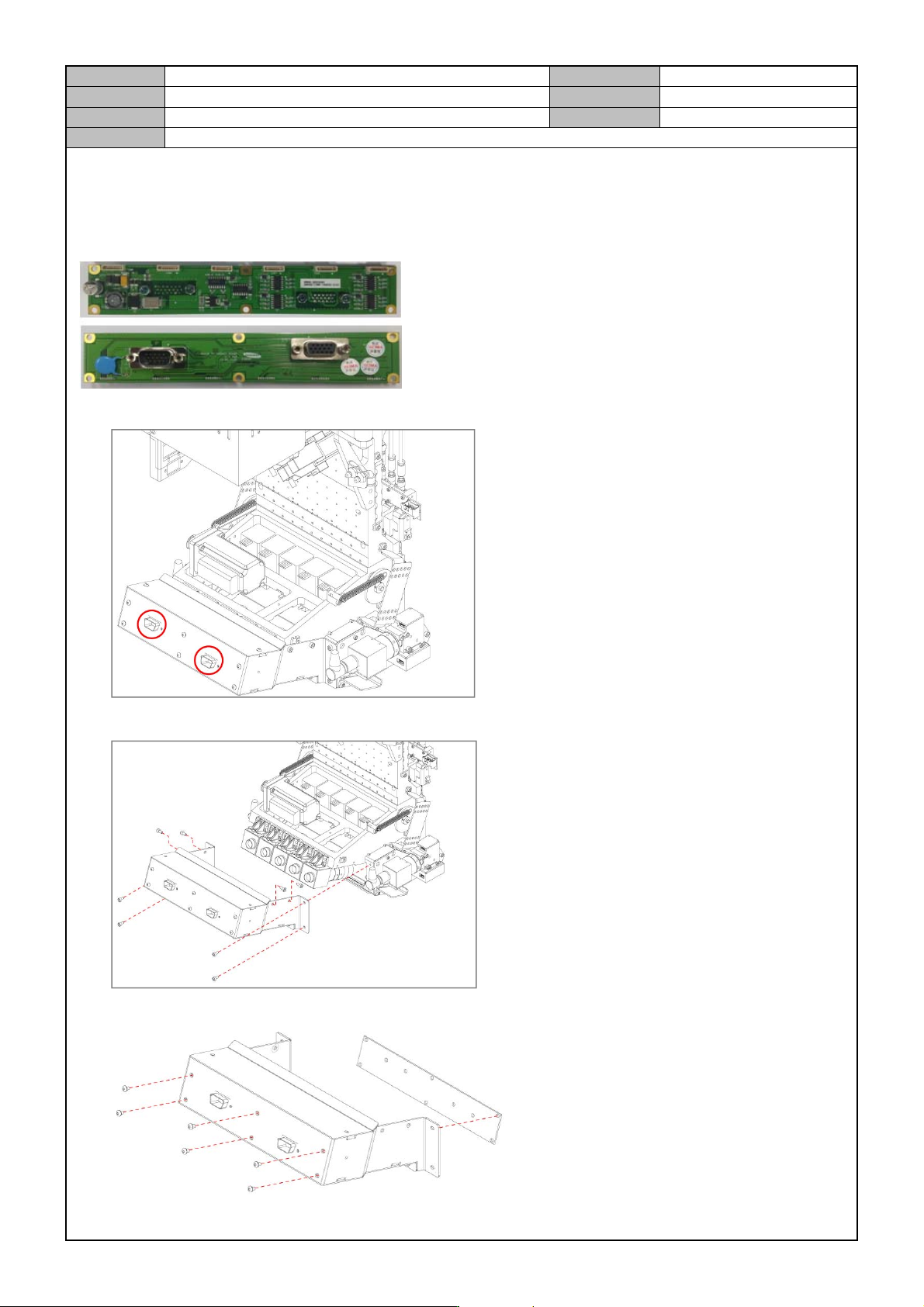

Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title
FEEDER BASE BOARD REPLACEME NT
Page
3-2-28
Note
[FEEDER BASE BOARD REPLACEMENT]
Feeder Base Board supplies power to the Feeder and controls mounting/dismounting and feeding of the Feeder.
1. Separate the cable connected to the board.
2. Remove the fixing bolts for the board and replace it with a new board.
3. When assembling the board, attach an electric tape to the joint of the Feeder Base Body.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title
FLY CAMERA IO BOARD REPLACEMENT
Page
3-2-29
Note
[FLY CAMERA IO BOARD REPLACEMENT]
Fly Camera IO Board supplies power to the Fly Camera and sends video recorded by the Fly Camera to the
Vision Board.
1. Separate the cable connected to the board.
2. Separate the Flying IO Board Assy by releasing the fixing bolts.
3. Remove the fixing bolts for the board and replace it with a new board.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title
FEEDER IO BOARD REPLACEMENT
Page
3-2-30
Note
[FEEDER IO BOARD REPLACEMENT]
Feeder IO Board controls operation of the Feeder and processes the signals sent from the Feeder Input EXT
Board.
1. Separate the cable connected to the board.
2. Remove the fixing bolts for the board and replace it with a new board.
3. Set the Rotary switch as follows before assembling the board.
On the left board of the equipment, set SW4 : 1.
On the right board of the equipment, set SW4 : 2.
