Model DECAN Series Company SAMSUNG TECHWIN Module 3.19 ELECTRIC DEVICE V ersion 01 Tit le VOL T AGE CHECK TEST Page 3-19-18 Note Inspection units Inspection criteria AXIS SENSOR BOARD CN1 : CN1-1, CN1-3 DC 24V±0.72 AXIS …

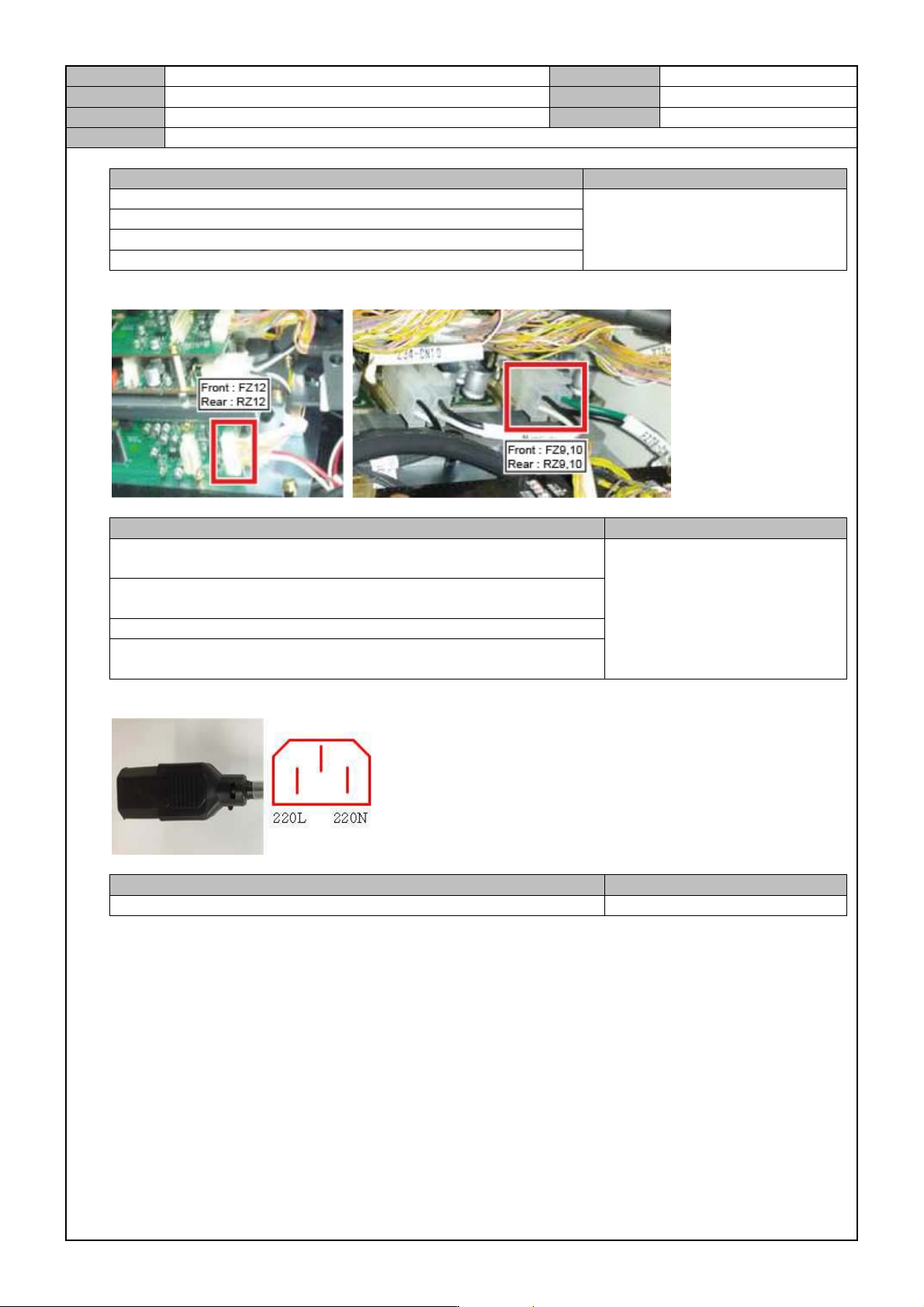

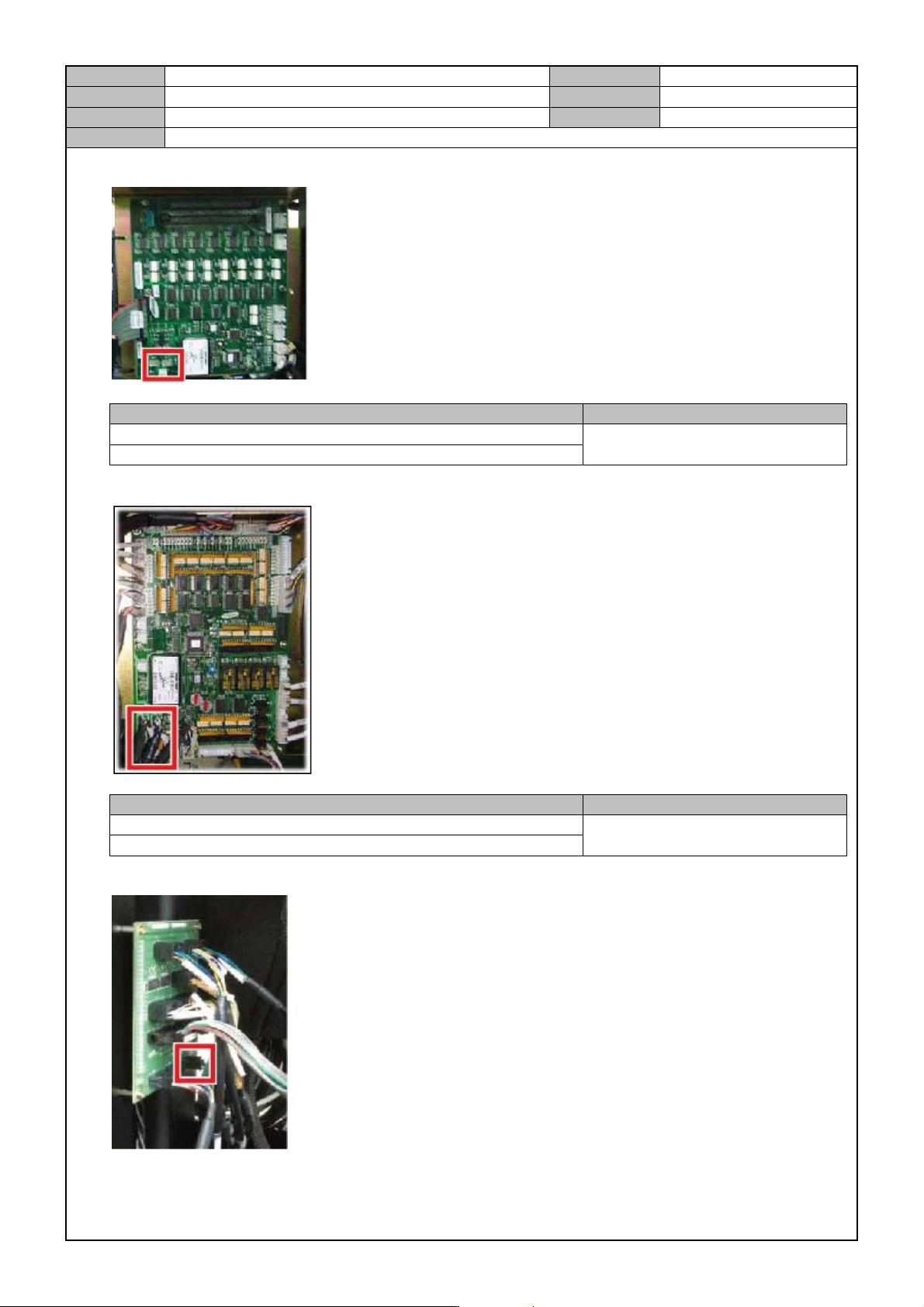

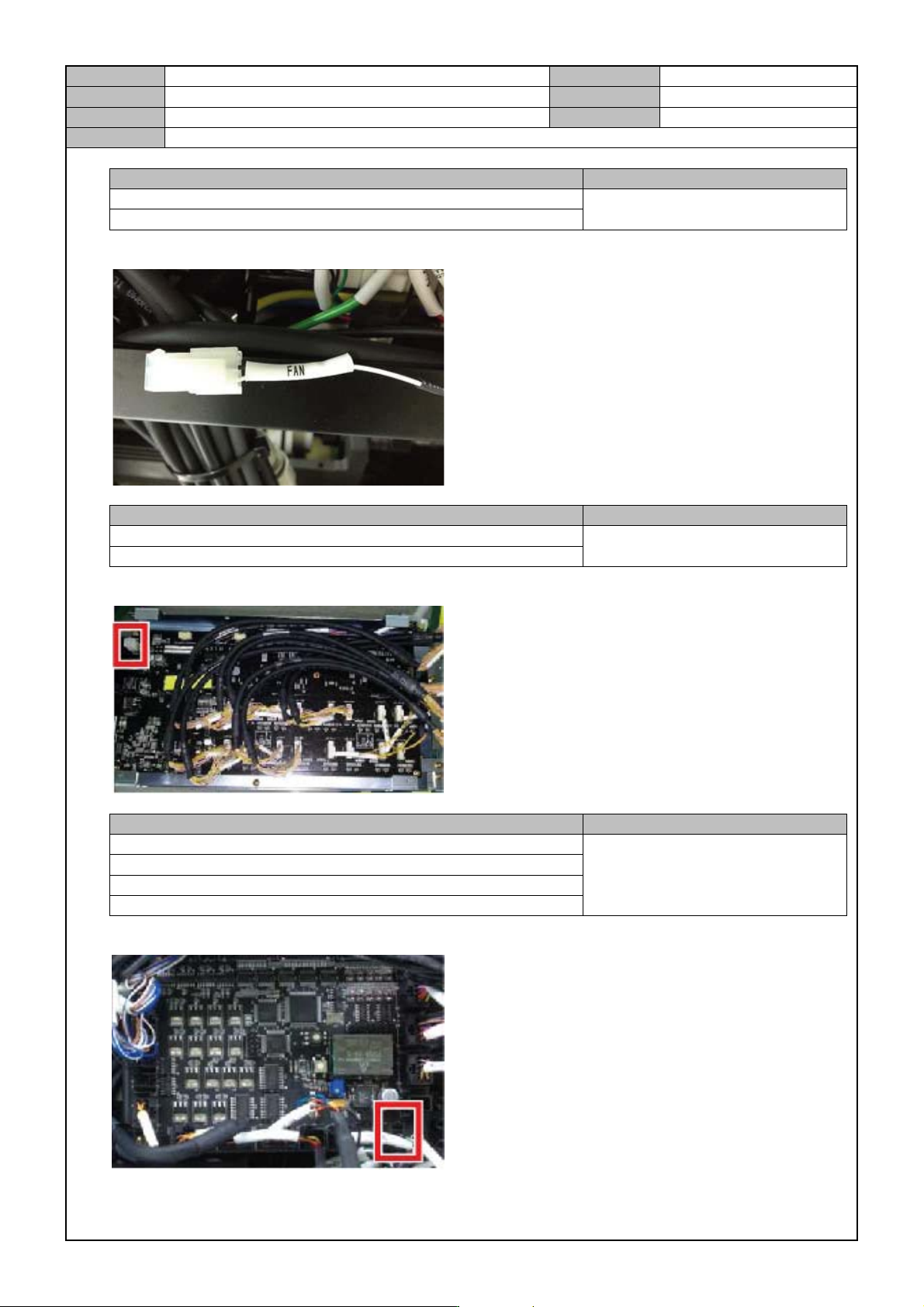

Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-17
Note
7. Rear Feeder IF Board CN4 power measurement
Inspection units Inspection criteria
REAR FEEDER IF BOARD CN4 : CN4-1, CN4-3
DC 24V±0.72
REAR FEEDER IF BOARD CN4 : CN4-2, CN4-4
8. Conveyor IF Board CN4 power measurement
Inspection units Inspection criteria
CONVEYOR IF BOARD CN4 : CN4-1, CN4-3
DC 24V±0.72
CONVEYOR IF BOARD CN4 : CN4-2, CN4-4
9. Axis Sensor Board CN1 power measurement
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-18
Note
Inspection units Inspection criteria
AXIS SENSOR BOARD CN1 : CN1-1, CN1-3
DC 24V±0.72
AXIS SENSOR BOARD CN1 : CN1-2, CN1-4
10. Front/Rear Z/R Axis Drive Fan Power Cable power measurement
Inspection units Inspection criteria
RIGHT FRONT FAN POWER CABLE : 1, 2
DC 24V±0.72
LEFT REAR FAN POWER CABLE : 1, 2
11. Front/Rear Axis IO Board CN2 power measurement
Inspection units Inspection criteria
Front AXIS IO BD CN2 : CN2-1, CN2-3
DC 24V±0.72
Front AXIS IO BD CN2 : CN2-2, CN2-4
Rear AXIS IO BD CN2 : CN2-1, CN2-3
Rear AXIS IO BD CN2 : CN2-2, CN2-4
12. Front/Rear Head IF Board CN1 power measurement
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-19
Note
Inspection units Inspection criteria
FRONT HEAD IF BD CN1 : CN1-B1, CN1-A1
DC 24V±0.72
FRONT HEAD IF BD CN1 : CN1-B2, CN1-A2
REAR HEAD IF BD CN1 : CN1-B1, CN1-A1
REAR HEAD IF BD CN1 : CN1-B2, CN1-A2
13. Front/Rear Z Axis Drive Power Cable voltage measurement
Inspection units Inspection criteria
FRONT Z axis DRIVE POWER CABLE : FZ12-CN5-1, FZ12-CN5-
2
DC 24V±0.72
FRONT Z axis DRIVE POWER CABLE : FZ910-CN5-1, FZ910-CN
5-2
REAR Z axis DRIVE POWER CABLE : RZ12-CN5-1, RZ12-CN5-2
REAR Z axis DRIVE POWER CABLE : RZ910-CN5-1, RZ910-CN
5-2
14. PC Rack Power Cable power measurement
Inspection units Inspection criteria
PC RACK POWER CABLE : L, N AC 220V±10
