Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
FIDUCIAL CAMERA LIGHTING LED CHANGE
Page
3-11-59
Note
5. Separate the Fiducial Camera as follows.
① Coaxial lighting LED
② Outer lighting LED
6. Replace it with a new lighting LED.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
GREASE INJECTION (F2)
Page
3-11-60
Note

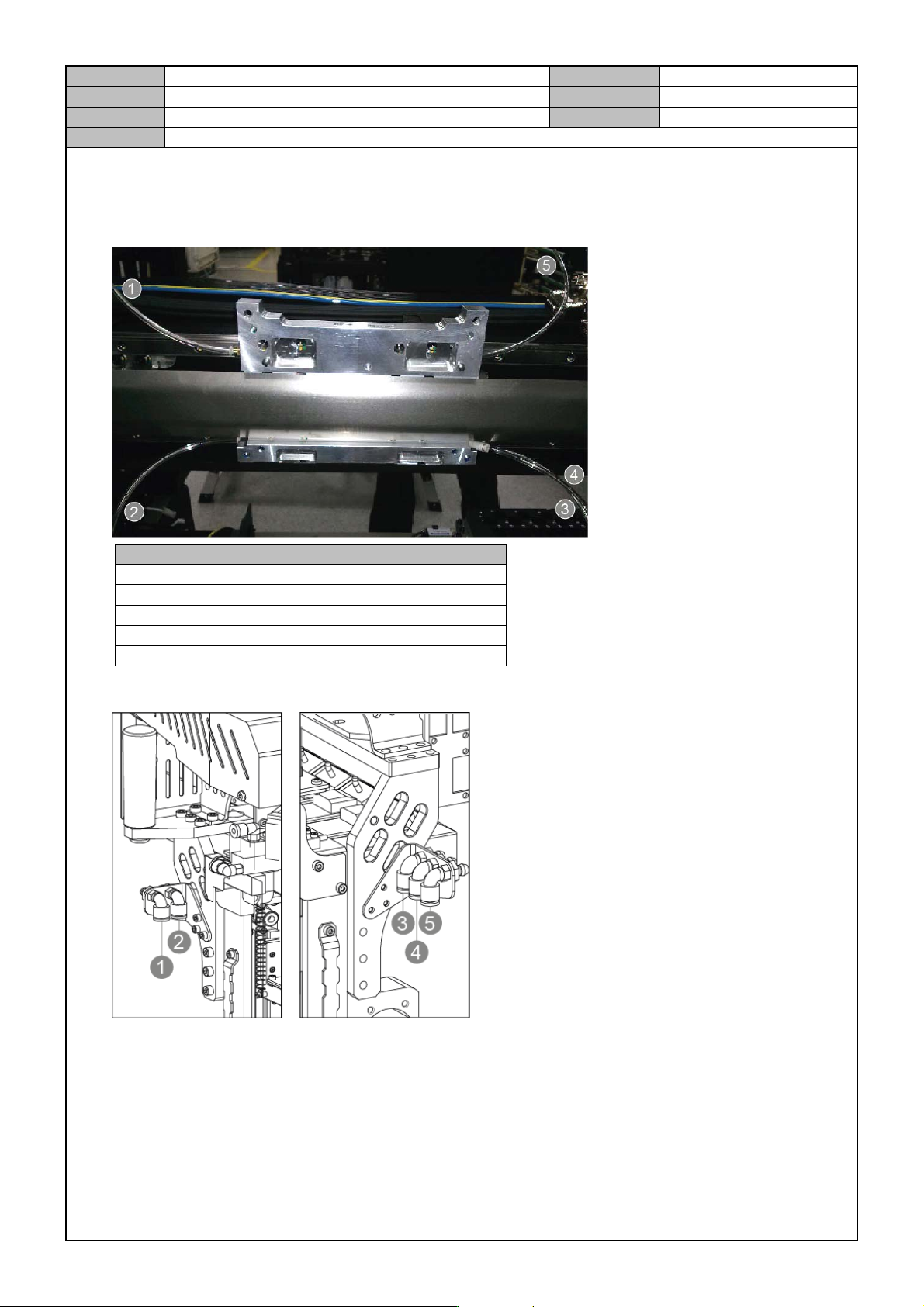

[GREASE INJECTION (F2)]
Head Grease tube wiring
Location Length
1 Upper left of LM 85mm
2 Left bottom of LM 190mm
3 Right top of LM 95mm
4 Ball Screw 210mm
5 Right bottom of LM 250mm
Head Grease tube wiring
① Left bottom of LM
② Upper left of LM
③ Right top of LM
④ Ball Screw
⑤ Right bottom of LM
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
GREASE INJECTION (L2)
Page
3-11-61
Note
[GREASE INJECTION (L2)]
Head Grease tube wiring
Location Length
1 Upper left of LM 85mm
2 Left bottom of LM 190mm
3 Right bottom of LM 250mm
4 Ball Screw 210mm
5 Right top of LM 95mm
Head Grease tube wiring
① Left bottom of LM
② Upper left of LM
③ Right top of LM
④ Ball Screw
⑤ Right bottom of LM
