Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
GROUND RESISTANCE MEASUREMENT
Page
3-19-22
Note

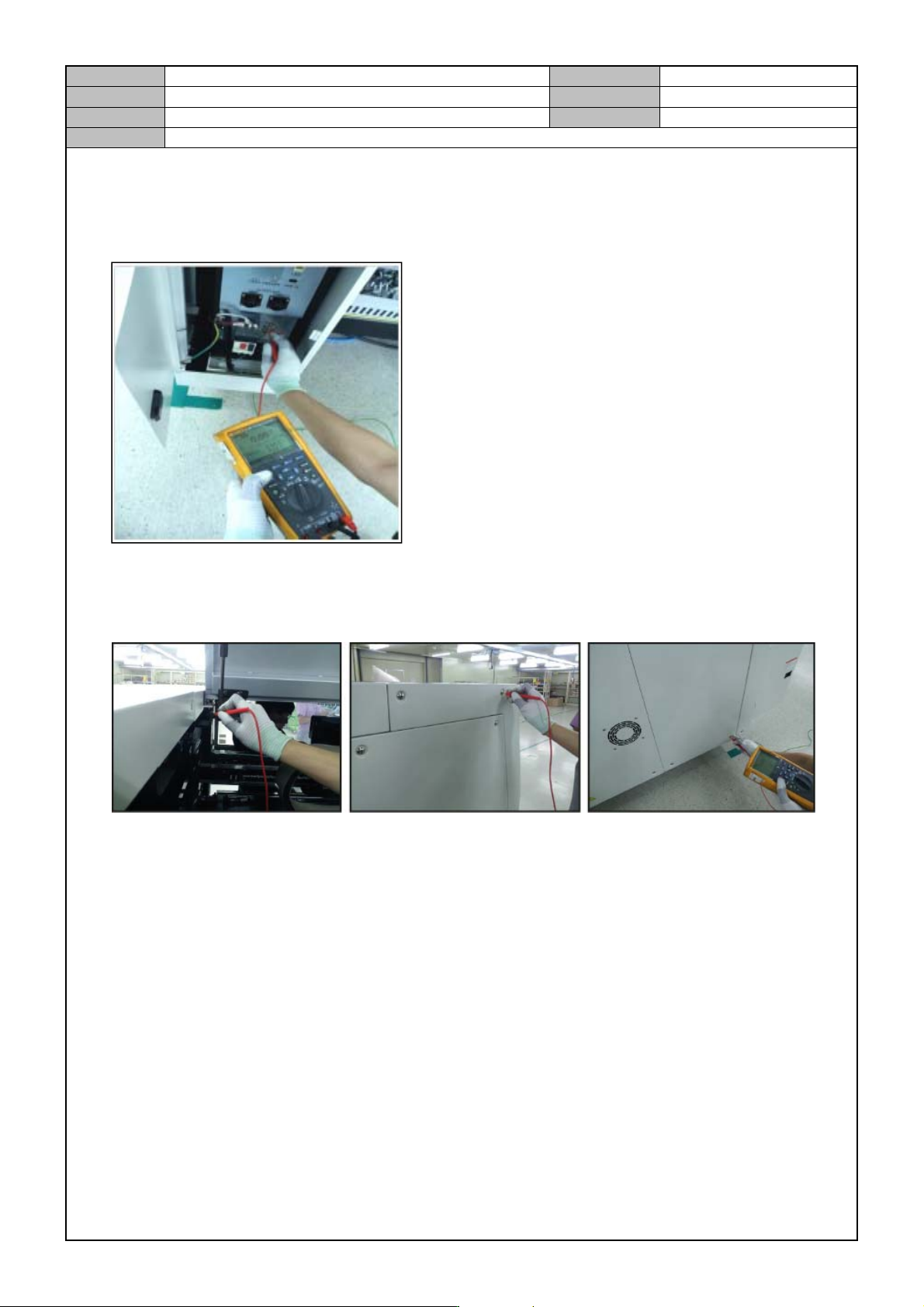

[GROUND RESISTANCE MEASUREMENT]
1. In the bottom left rear of equipment, connect the ground cable to the ground terminal measurement
instrument.
2. Set the zero point of ground resistance reading on the instrument.
3. Measure the ground resistances for the four locations in the bottom of the gas spring of the acryl cover and
the four screws in the left/right side of equipment.
*Resistance level : 0.1Ω or less.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
POWER SUPPLY REPLACEMENT
Page
3-19-23
Note

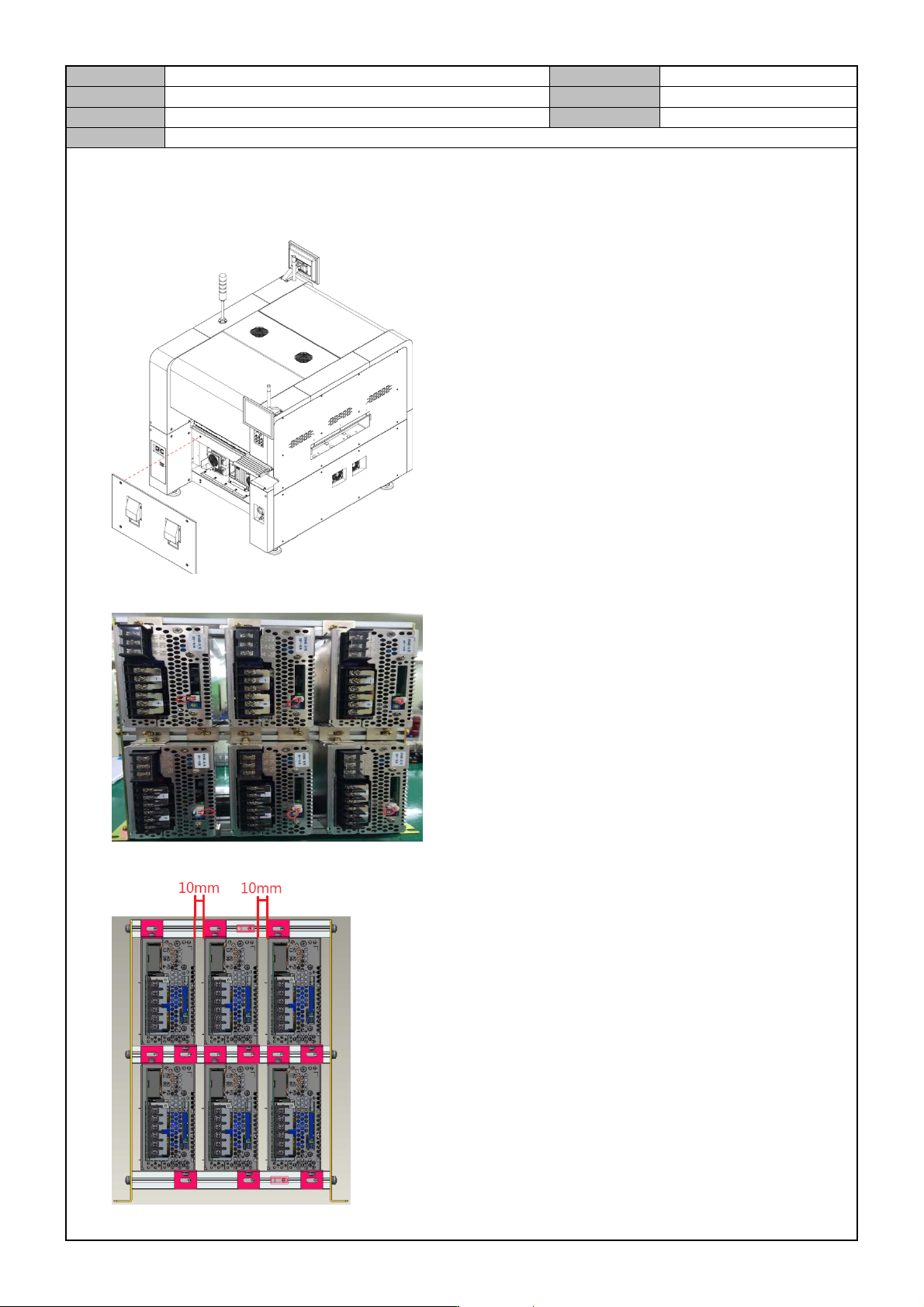

[POWER SUPPLY REPLACEMENT]
1. Separate the front cover from the equipment.
2. Release the fixing bolts for the power supply and separate the power supply.
3. Assemble a new power supply every 10mm.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
POWER SUPPLY REPLACEMENT
Page
3-19-24
Note

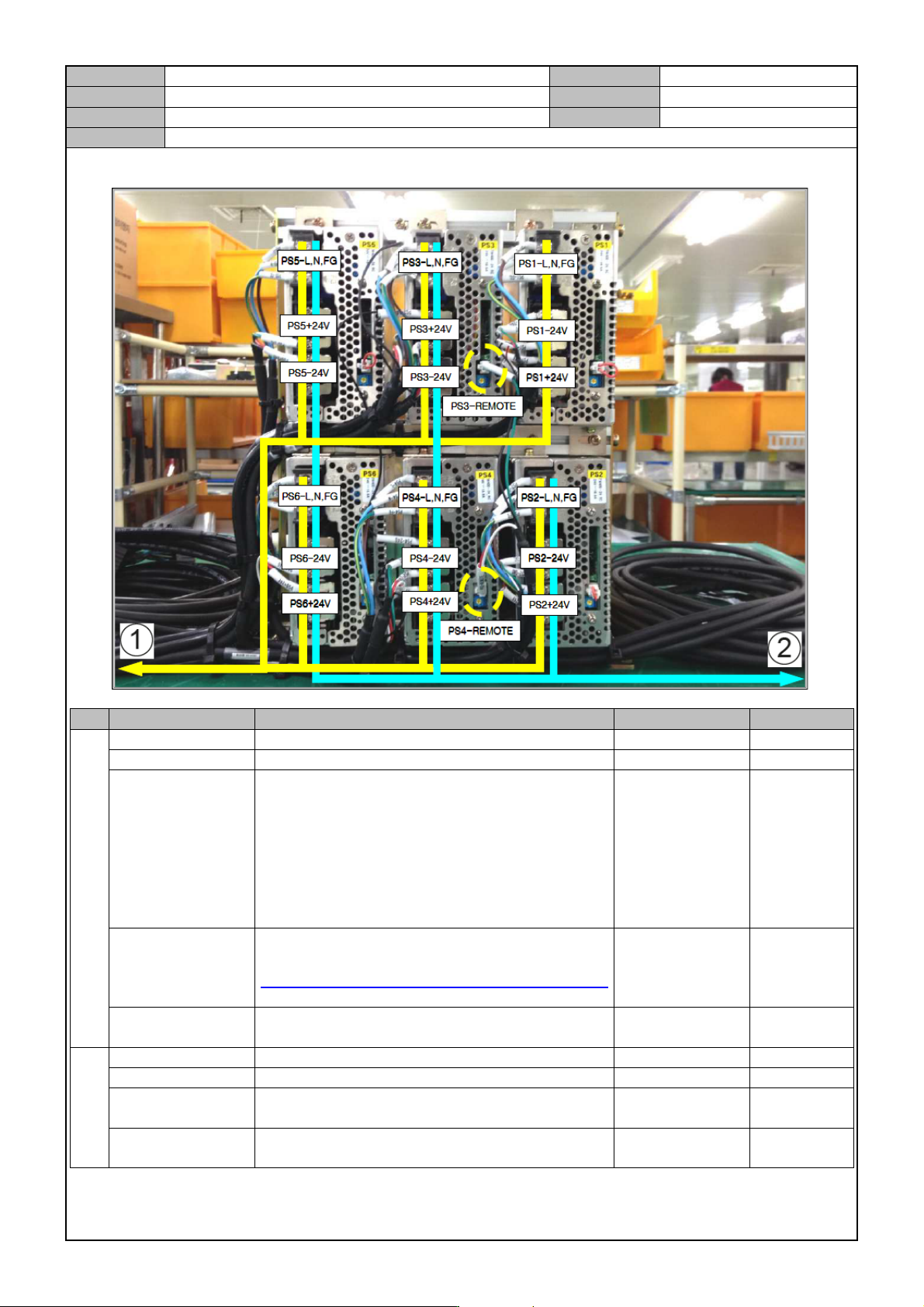

4. Connect the cable to the Power Unit.
No Specification Part name START END
1
SM511C FD004 CABLE ASSY-F LEFT FEEDER BASE PWR PS3+24V,-24G F-FB-L
SM511C FD007 CABLE ASSY-R RIGHT FEEDER BASE PWR PS4+24V,-24G R-FB-R
SM511C PW101 CABLE ASSY-PS1 PS4 AC PW T5L
PS1-L,N,FG
PS2-L,N,FG
PS3-L,N,FG
PS4-L,N,FG
PS5-L,N,FG
PS6-L,N,FG
PS3-24G
PS4-24G
T5L
PS1-24G
PS3-24G
SM511C PW112
CABLE ASSY-PS1 PS4 DC PW T6L
PS1+24V,-24G
PS2+24V,-24G
PS3-REMOTE
PS4-REMOTE
T2L
SM511C PW124 CABLE ASSY-RZ1-RZ10 DC24V PW PS6+24V,-24G
RZ12-CN5
RZ910-CN5
2
SM511C FD005 CABLE ASSY-F RIGHT FEEDER BASE PWR PS3+24V,-24G F-FB-R
SM511C FD006 CABLE ASSY-R LEFT FEEDER BASE PWR PS4+24V,-24G R-FB-L
SM48C IT005-1 CABLE ASSY-DEVICE NET POWER EXT PS2+24V,-24G
DEVICE-P
W
SM511C PW123 CABLE ASSY-FZ1-FZ10 DC24V PW PS5+24V,-24G
FZ12-CN5
FZ910-CN5
