Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.16 X-FRAME
Version
01
Title
XY-DUCT X AXIS CABL E WIRING
Page
3-16-8
Note

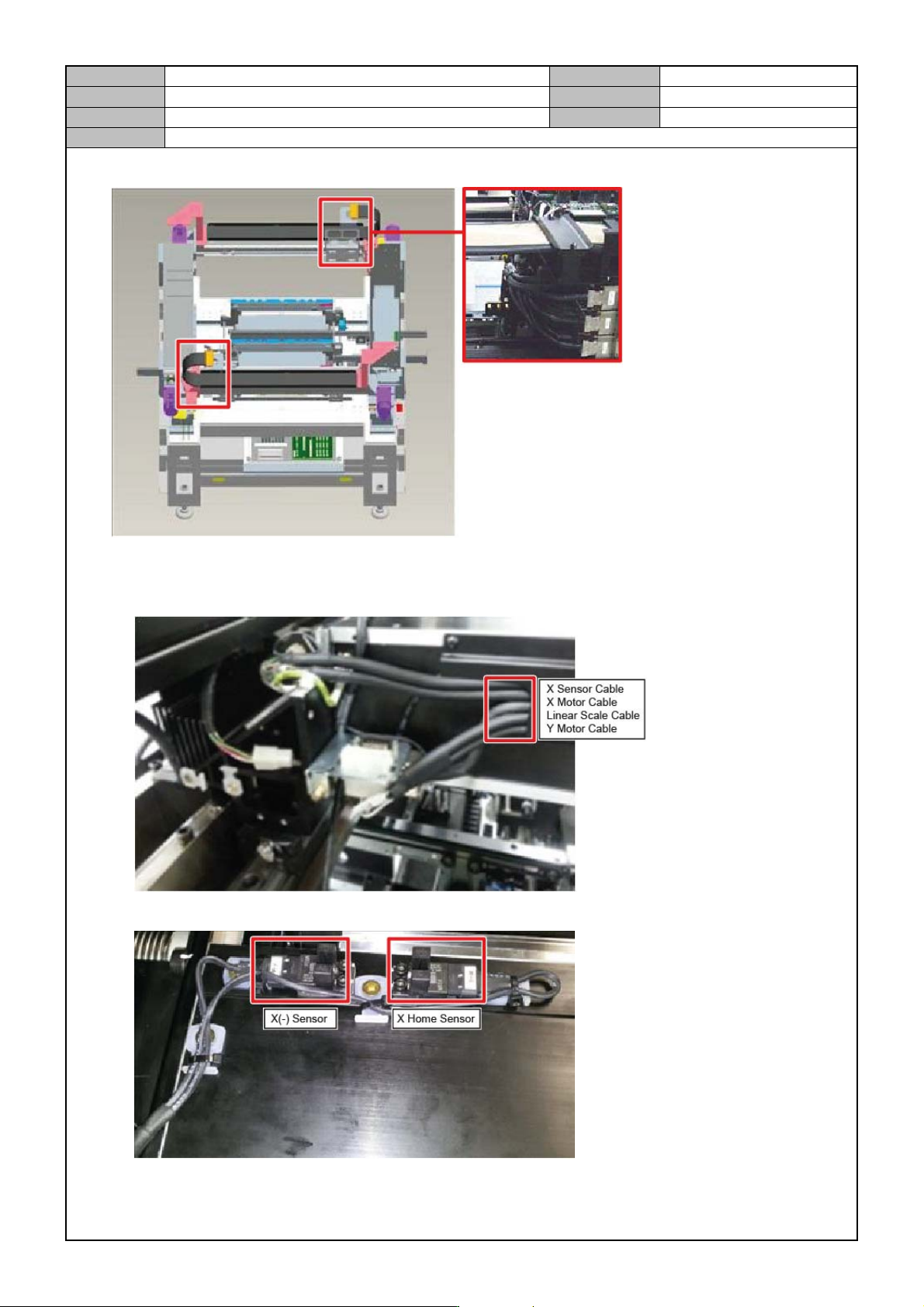

XY Duct's X Axis Cable Wiring3
XY Duct's X Axis Cable Wiring4
Separate the X-Frame Cable Cover and wire the cable.
Assemble the sensor on the X axis.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.16 X-FRAME
Version
01
Title
XY-DUCT X AXIS CABL E WIRING
Page
3-16-9
Note

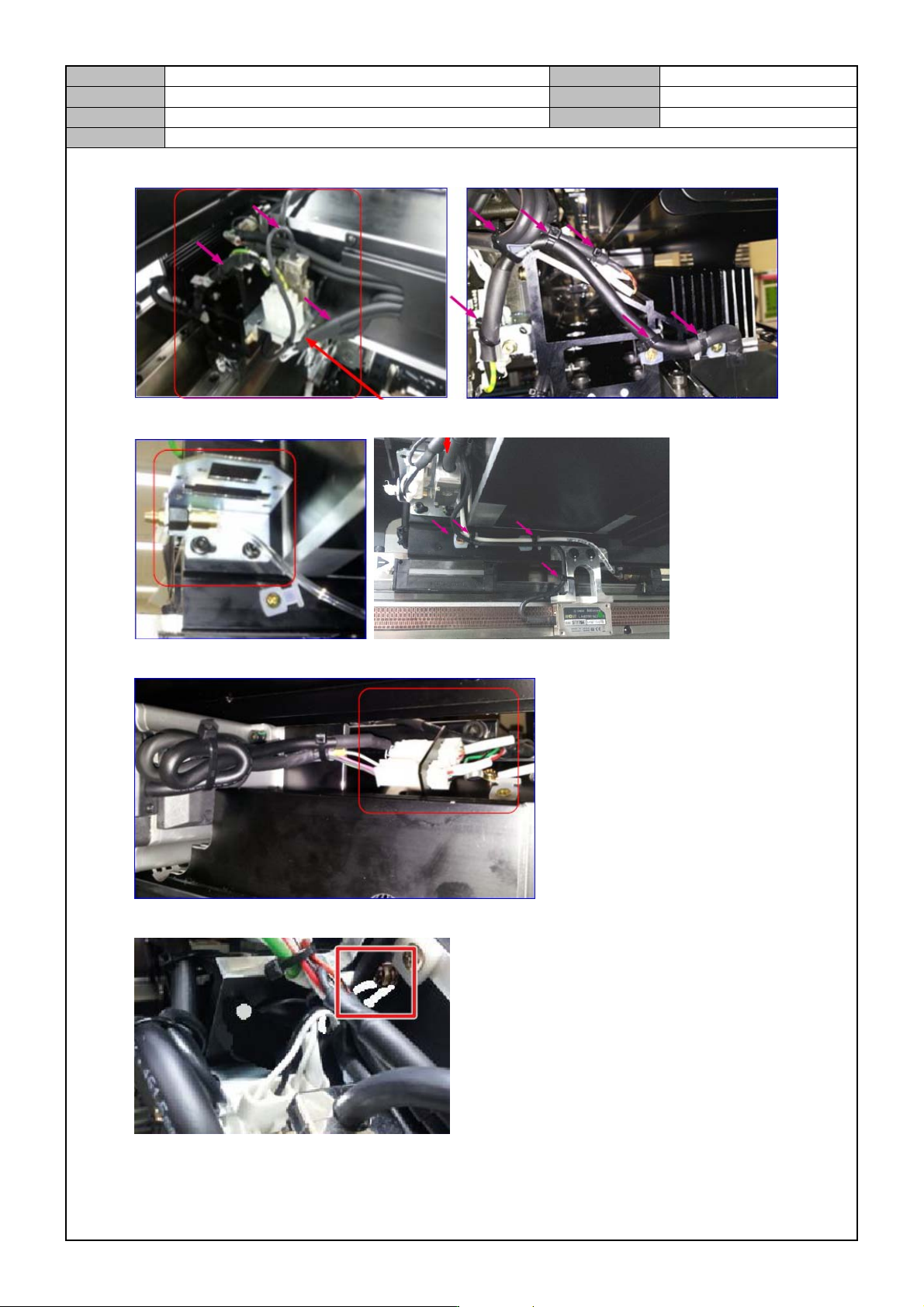

Y Axis Motor Cable Wiring
Linear-Scale Cable Wiring
X Axis Motor Cable Wiring
Ground Cable Wiring
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.16 X-FRAME
Version
01
Title
XY DUCT I NSPECTION
Page
3-16-10
Note
[XY DUCT INSPECTION]
No. Item Criteria
1
Make sure that the HEAD is as firmly pressed in
the X (-) direction as possible, and then check
for cable interferences.
10~15mm GAP should exist.
2
Check if the BKT CONNECTOR in the top is
properly fixed.
Fix 11 bolts.
3
Check the X frame and flat cable height where
the X frame intersects with the Y frame.
15mm or less
4 Check I MARKING in the air wiring joint. 18 units air wiring units I MARKING
5
Check the I MARKING after wiring the FLAT
CABLE.
14 units FLAT CABLE wiring units I
MARKING
6 Check for noises after wiring the flat cable. There should be no noises.
7
Check for interference between the Z motor
driver cover and the flat cable.
No interference.
8
Check if the X1-XY-CABLE-DUCT SERIAL
NUMBER is filled out.
Write the SERIAL NUMBER.
