Model DECAN Series Company SAMSUNG TECHWIN Module 3.18 V ACUUM DEVICE V ersion 01 Tit le V ACUUM PUMP REPLACEMENT Page 3-18-15 Note [V ACUUM PUMP REPLACEMENT] 1. Separate the air pressure tube connected to the vacuum tub…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
MAIN AIR FILTER REPLACEMENT
Page
3-18-14
Note
[MAIN AIR FILTER REPLACEMENT]
1. Separate the air pressure tube connected to the mist separator in the bottom rear of the equipment.
2. Separate the Mist Separator by releasing the fixing bolts.
No. Part name Specification Remarks
1 REAR AIR PANEL -
2 ASSY,AIR-MAIN FILTER PC3C-03D-R9843
3 AIR TUBE (POLYURETHANE) U2-4-10*6.5 (BLACK) 300mm(Black)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
VACUUM PUMP REPLACEMENT
Page
3-18-15
Note
[VACUUM PUMP REPLACEMENT]

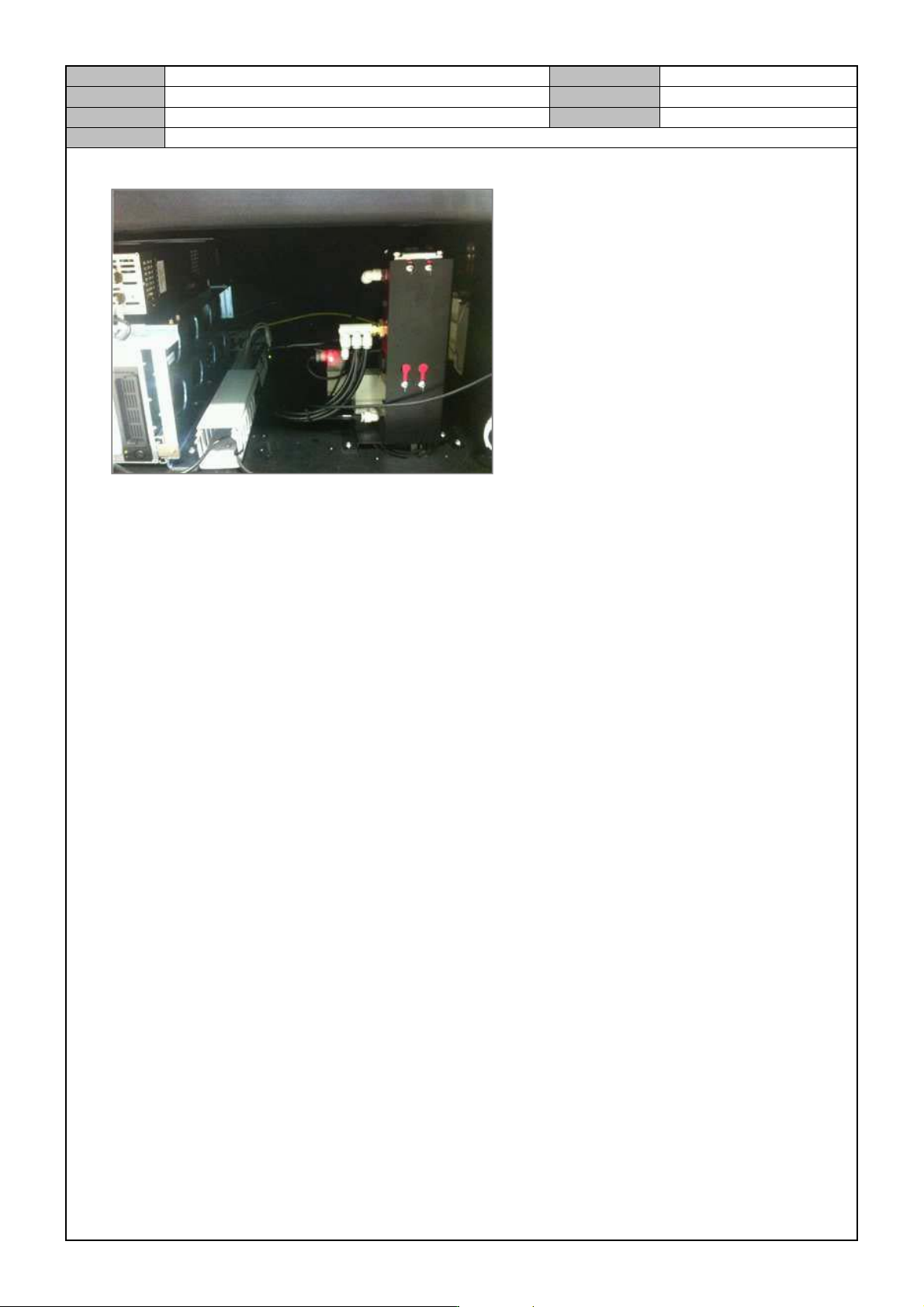

1. Separate the air pressure tube connected to the vacuum tube in the bottom front of equipment.
2. Remove the fixing bolts from the Vacuum Pump to separate it.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.18 VACUUM DEVICE
Version
01
Title
VACUUM PUMP REPLACEMENT
Page
3-18-16
Note
3. Replace it with a new Vacuum Pump and connect the air pressure tube.
