Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le SHUTTLE CONNECTION CHECK Page 3-5-15 Note Shuttle unit cable bear Front shuttle wiring Rear shuttle wiring
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
SHUTTLE CONNECTION CHECK
Page
3-5-14
Note
[SHUTTLE CONNECTION CHECK]
Shuttle front/rear left/right sides connector connection label- Standard (Left → Right)
Rear left (shuttle ↔ cable bear) Rear right(cable bear ↔ shuttle)
Top of the width adjustment motor ↔ IN-WD-EN EX-WD-EN ↔ top of the width adjustment motor
Bottom of the width adjustment motor ↔ IN-WD-
PW
EX-WD-PW ↔ bottom of the width adjustment
motor
BELT-M ↔ IN-BELT2 EX-BELT2 ↔ BELT-M
Front left (shuttle ↔ cable bear) Front right(cable bear ↔ shuttle)
BELT-M ↔ IN-BELT1 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
Photo sensor ↔ IN-WD-H EX-F-BD-OUT ↔ EX-F-BD-OUT
None ↔ EX-F-BD-OUT EX-WF-H ↔ photo sensor
Shuttle front/rear left/right sides connector connection label- Standard (Right → Left)
Rear left (shuttle ↔ cable bear) Rear right(cable bear ↔ shuttle)
Top of the width adjustment motor ↔ IN-WD-EN EX-WD-EN ↔ top of the width adjustment motor
Bottom of the width adjustment motor ↔ IN-WD-
PW
EX-WD-PW ↔ bottom of the width adjustment
motor
BELT-M ↔ IN-BELT2 EX-BELT2 ↔ BELT-M
Front left (shuttle ↔ cable bear) Front right(cable bear ↔ shuttle)
BELT-M ↔ IN-BELT1 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
Photo sensor ↔ IN-WD-H
EX-WF-H ↔ photo sensor
EX-F-BD-OUT ↔ EX-F-BD-OUT EX-F-BD-OUT ↔ none
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
SHUTTLE CONNECTION CHECK
Page
3-5-15
Note

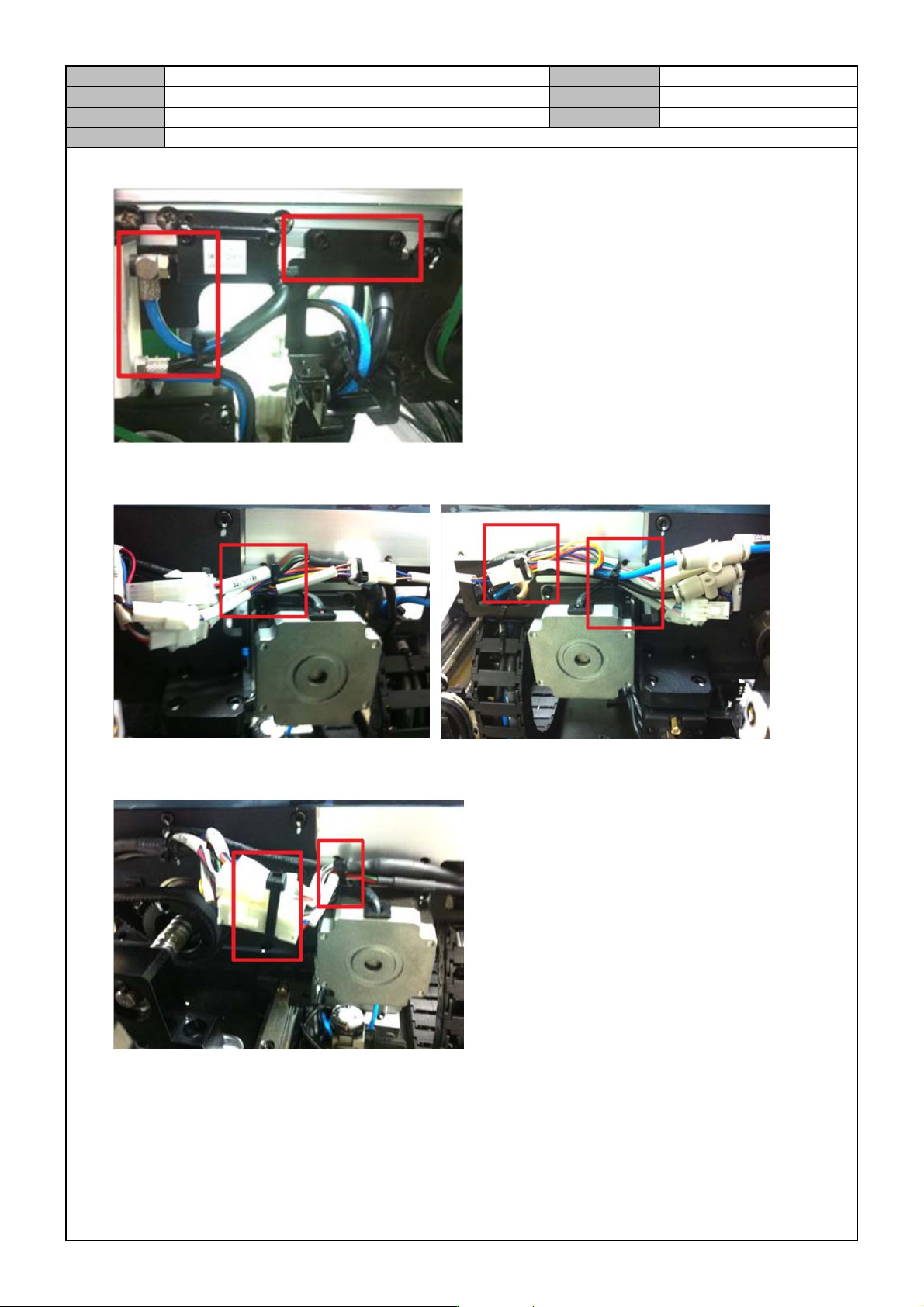

Shuttle unit cable bear
Front shuttle wiring
Rear shuttle wiring
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
SHUTTLE CONNECTION CHECK
Page
3-5-16
Note
Shuttle front/rear left/right sides connector connection label- Dual (Left → Right)
Rear left (shuttle ↔ cable bear) Rear right(cable bear ↔ shuttle)
BELT-M ↔ IN-BELT3 EX-BELT3 ↔ BELT-M
IN-R-WT ↔ IN-R-WT EX-R-OUT1 ↔ EX-R-OUT1
IN-R-IN ↔ IN-R-IN EX-R-OUT2 ↔ EX-R-OUT2
None ↔ EX-R-BD-OUT EX-R-BD-OUT ↔ EX-R-BD-OUT
Front left (shuttle ↔ cable bear) Front right(cable bear ↔ shuttle)
BELT-M ↔ IN-BELT2 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
None ↔ EX-F-BD-OUT EX-F-BD-OUT ↔ EX-F-BD-OUT
Shuttle front/rear left/right sides connector connection label- Dual (Right → Left)
Rear left (shuttle ↔ cable bear) Rear right(cable bear ↔ shuttle)
BELT-M ↔ IN-BELT3 EX-BELT3 ↔ BELT-M
IN-R-WT ↔ IN-R-WT EX-R-OUT1 ↔ EX-R-OUT1
IN-R-IN ↔ IN-R-IN EX-R-OUT2 ↔ EX-R-OUT2
EX-R-BD-OUT ↔ EX-R-BD-OUT EX-R-BD-OUT ↔ None
Front left (shuttle ↔ cable bear) Front right(cable bear ↔ shuttle)
BELT-M ↔ IN-BELT2 EX-BELT1 ↔ BELT-M
IN-F-WT ↔ IN-F-WT EX-F-OUT1 ↔ EX-F-OUT1
IN-F-IN ↔ IN-F-IN EX-F-OUT2 ↔ EX-F-OUT2
EX-F-BD-OUT ↔ EX-F-BD-OUT EX-F-BD-OUT ↔ none
