Model DECAN Series Company SAMSUNG TECHWIN Module 3.1 1 HEAD V ersion 01 Tit le BALL SPLINE REPLAC EME NT (F2) Page 3-1 1-33 Note [BALL SPLINE REPLACEMENT (F2)] 1. Separate the Air Pressure T ube from the Air Module. 2. …
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
NOZZLE HOLDER REPLACEMENT
Page
3-11-32
Note

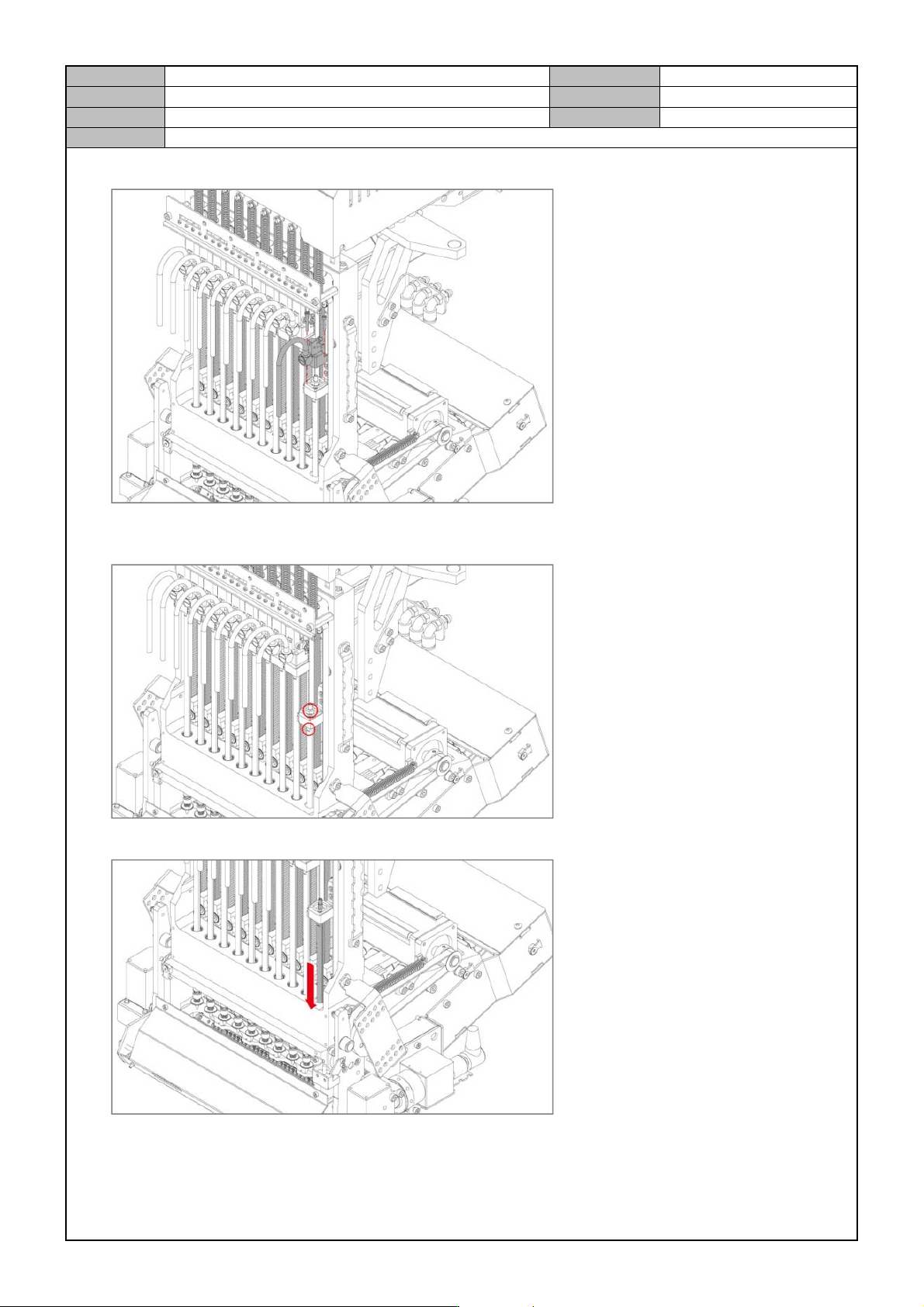

[NOZZLE HOLDER REPLACEMENT]
1. Separate the Nozzle Holder.
2. Replace it with a new Nozzle Holder.
3. Using the Setting tool, mount the Nozzle Holder.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
BALL SPLINE REPLAC EMENT (F2)
Page
3-11-33
Note
[BALL SPLINE REPLACEMENT (F2)]
1. Separate the Air Pressure Tube from the Air Module.
2. Release the fixing bolts for the Air Module and separate the Air Module.
3. Lower the Spindle that you want to separate.
4. Separate the Z Sensor Dog by releasing the fixing bolts.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
BALL SPLINE REPLAC EMENT (F2)
Page
3-11-34
Note
5. Separate the Z Cap by releasing the fixing bolts.
6. Using a spanner, fix the spanner location of the spline and then using another spanner, release and remove
the lock nuts.
7. Separate the Spline by moving it downward.
