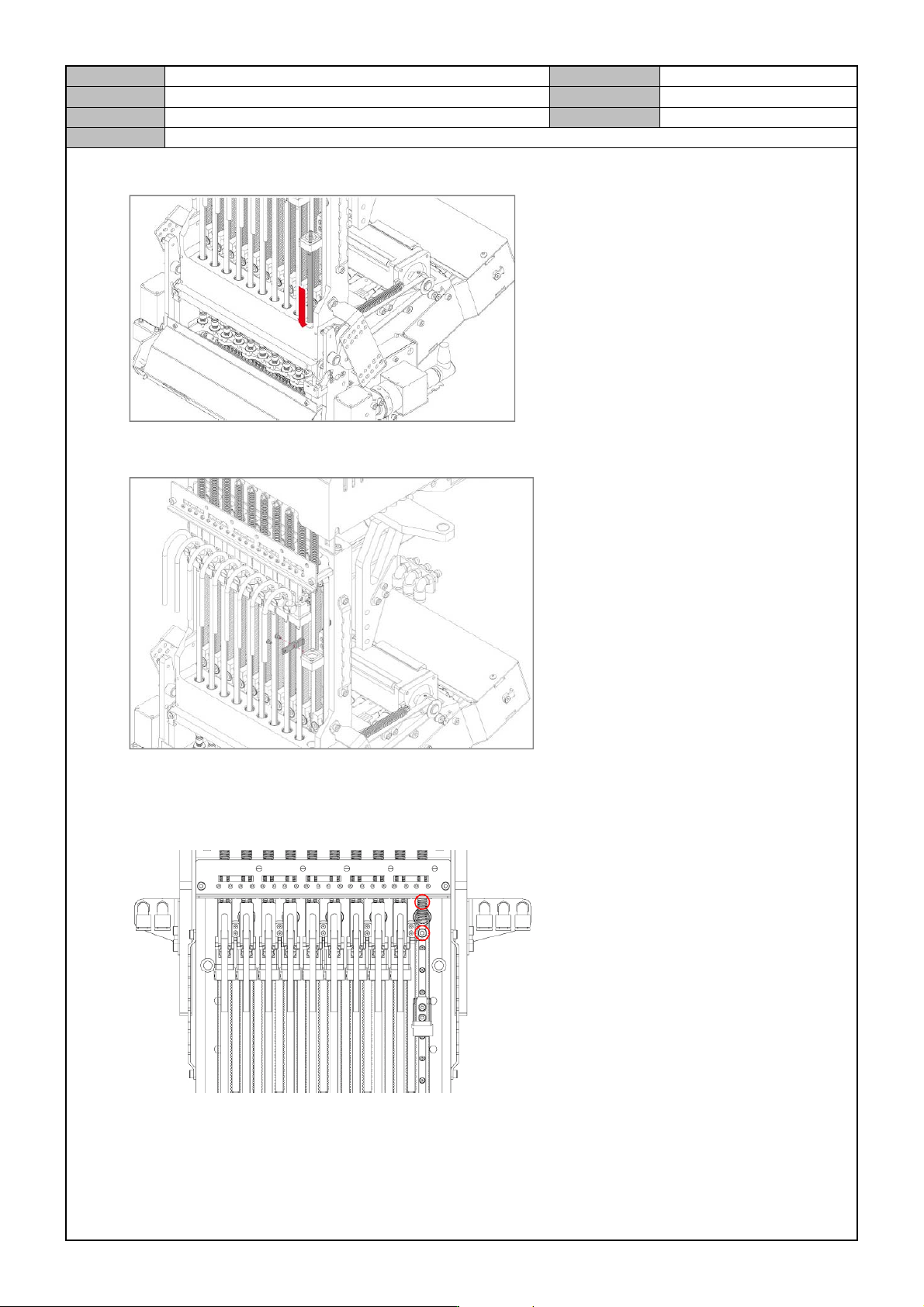

[Z, R AXIS MOTOR PULLEY REASSEMBLY (F2)]
Z axis Motor Pulley
1. Separate the Air Pressure Tube and the Cable connected to the Air Module of the Air Head.
2. Release the fixing bolts for the Air Module and separate the Air Module.
3. Move down the Spindle that you want to separate.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (F2)
Page
3-11-47
Note
4. Separate the Z Sensor Dog by releasing the fixing bolts.
5. Separate the Z Cap by releasing the fixing bolts.
6. Using a spanner, fix the spanner location of the spline and then using another spanner, release and remove
the lock nuts.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (F2)
Page
3-11-48
Note
7. Separate the Spline by moving it downward.
8. Separate the Belt Clamp by releasing the fixing bolts.
9. Separate the cable connected to the motor.
10. Remove the fixing bolts for the motor to separate it.
