Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le SINGLE-CONVEYOR OPTION FOR MODULE ASSEMBL Y LOCA TIONS Page 3-5-18 Note DECAN F2 [SINGLE-CONVEYOR OPTION FOR MODULE ASSEMBL Y LOCA TIONS]
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title

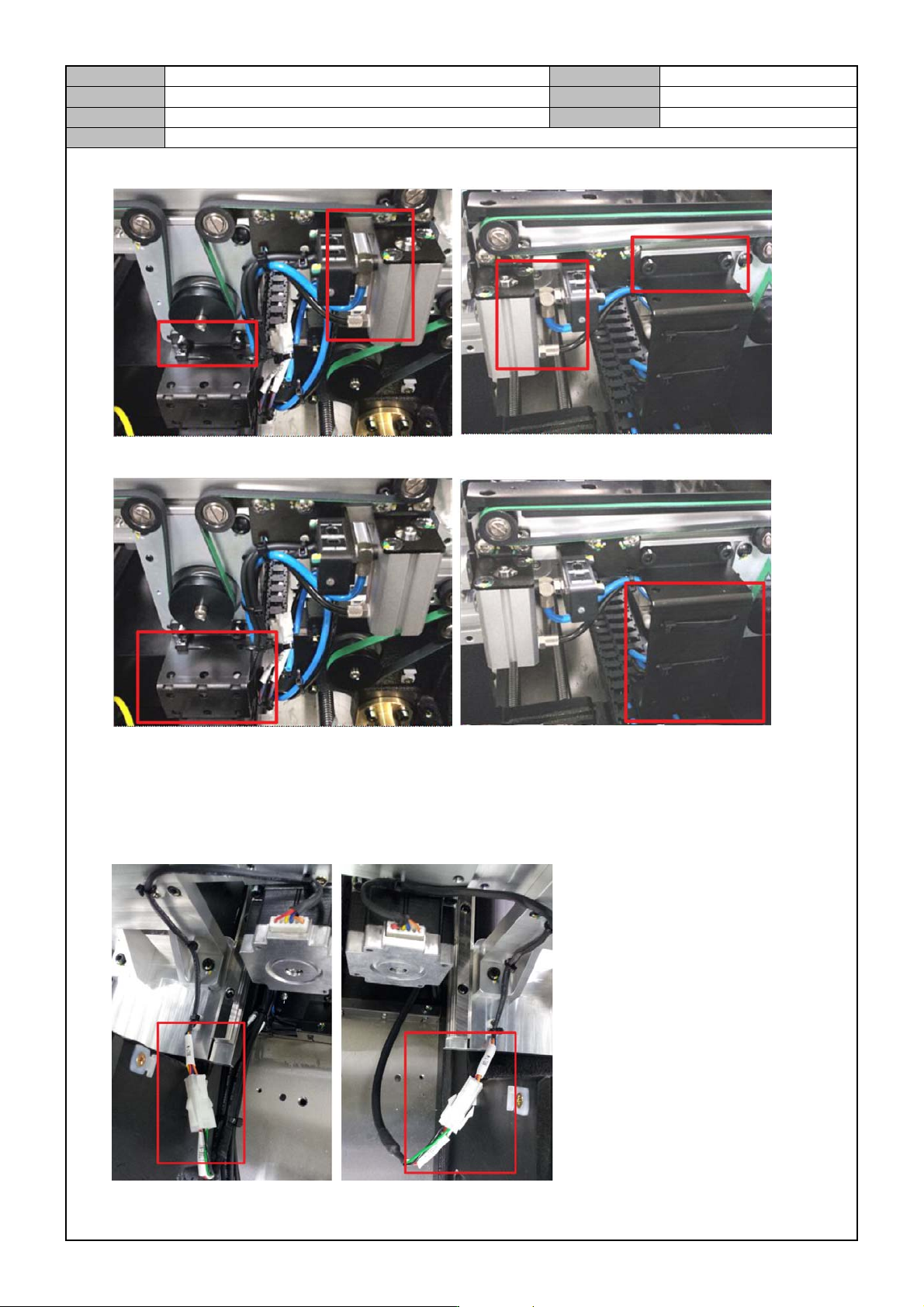

SHUTTLE CONNECTION CHECK
Page
3-5-17
Note
Shuttle unit cable bear
<Front left/Rear right> <Front right/Rear left>
<Front left/Rear right> <Front right/Rear left>
- After assembling the Bracket, connect the connectors according to the label and arrange the wiring with
a tie.
- Tie fixing locations should be free of shaking when moving the shuttle back and forth.
Fix Frame motor unit wiring
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title

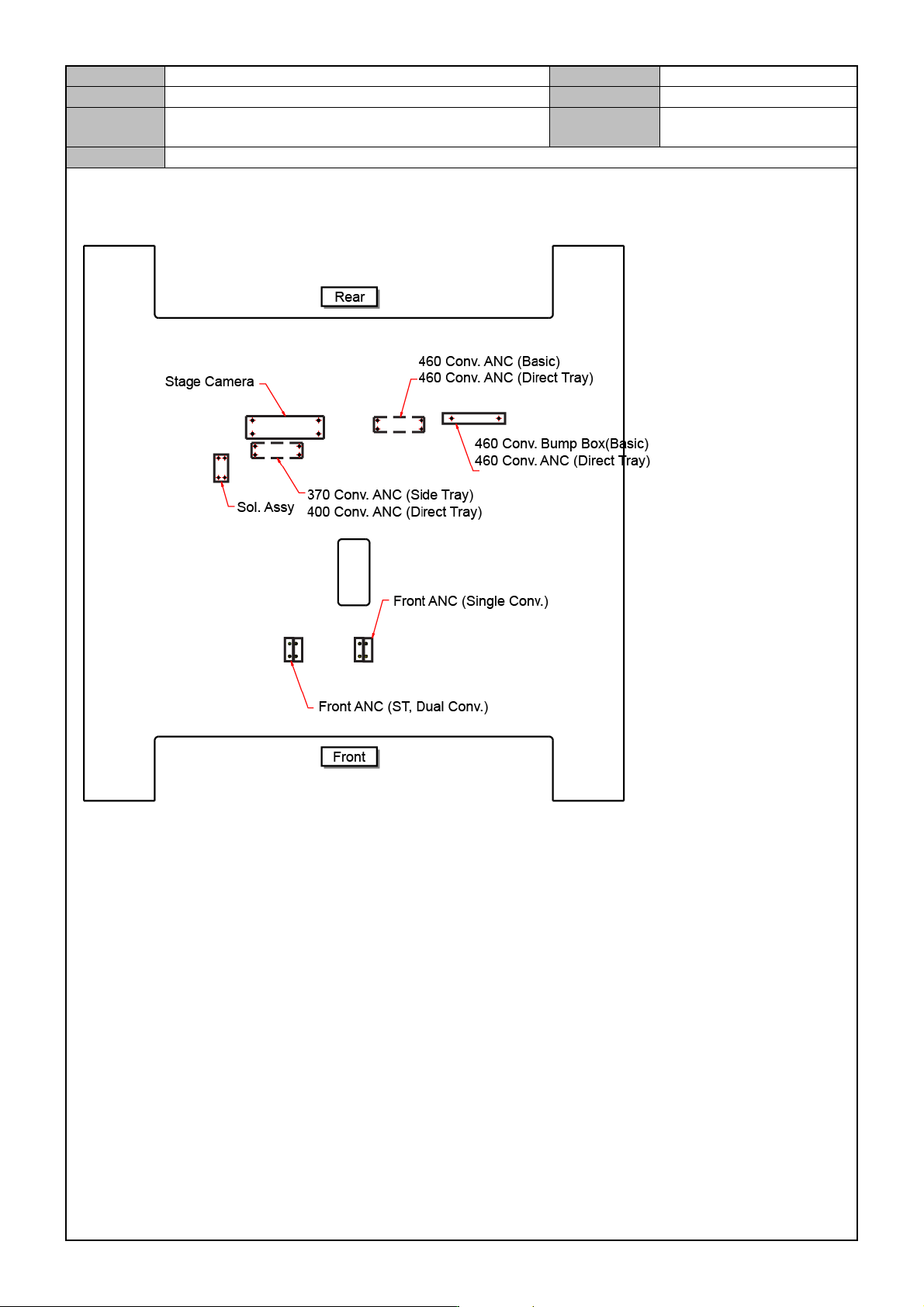

SINGLE-CONVEYOR OPTION FOR MODULE
ASSEMBLY LOCATIONS
Page
3-5-18
Note
DECAN F2
[SINGLE-CONVEYOR OPTION FOR MODULE ASSEMBLY LOCATIONS]
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title

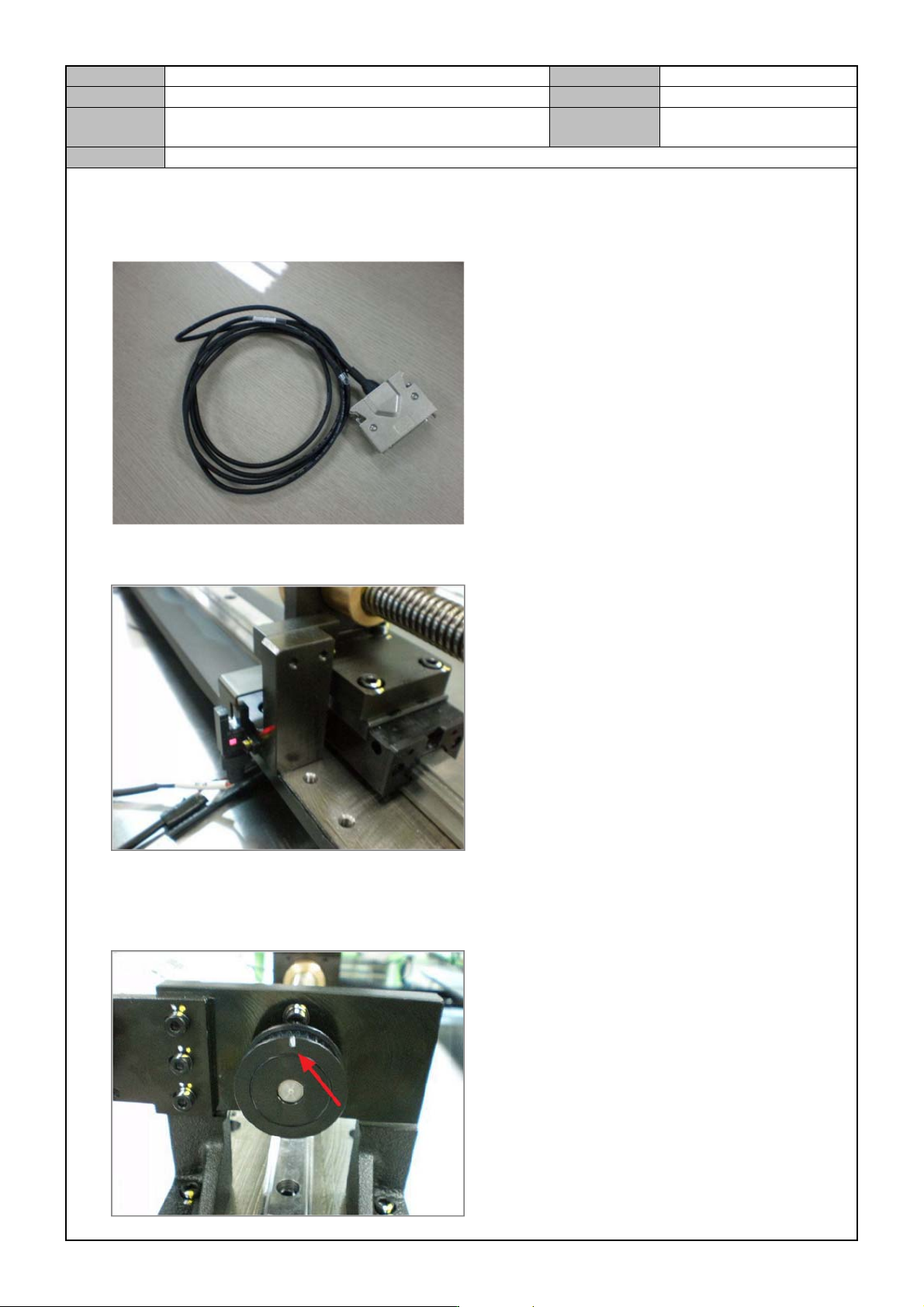

WIDTH ADJUSTMENT MOTOR Z PHASE
SETTING
Page
3-5-19
Note
[WIDTH ADJUSTMENT MOTOR Z PHASE SETTING]
1. Connect the Motor ENC Cable.
2. Adjust the frame width until the Home Sensor detects it.
3. Fine tune the Home Sensor detection location, and when the Home Sensor's red LED is on, perform I
marking directly in line (at 12'o clock to as shown in the picture below) with the pulley assembled in the
screw.
