Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
SPLICING MOTOR REPLACEMENT
Page
3-10-12
Note
[SPLICING MOTOR REPLACEMENT]
1. After removing the fixing bolts for the left cover(10-M2.5*0.45, 2-M25), separate the left cover from the
Feeder.
2. After removing the fixing bolts for the right cover(19-M2.5*0.45), separate the right cover from the Feeder.
3. Disconnect the splicing motor connector connected to the main board.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
SPLICING MOTOR REPLACEMENT
Page
3-10-13
Note
4. After removing the fixing bolts for the splicing motor(2-M3X0.5) , separate the splicing motor from the
Feeder.
5. After replacing it with a new motor, as shown in the figure, firmly attach it to the Motor Gear.
6. Temporarily assemble the splicing motor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
SPLICING MOTOR REPLACEMENT
Page
3-10-14
Note

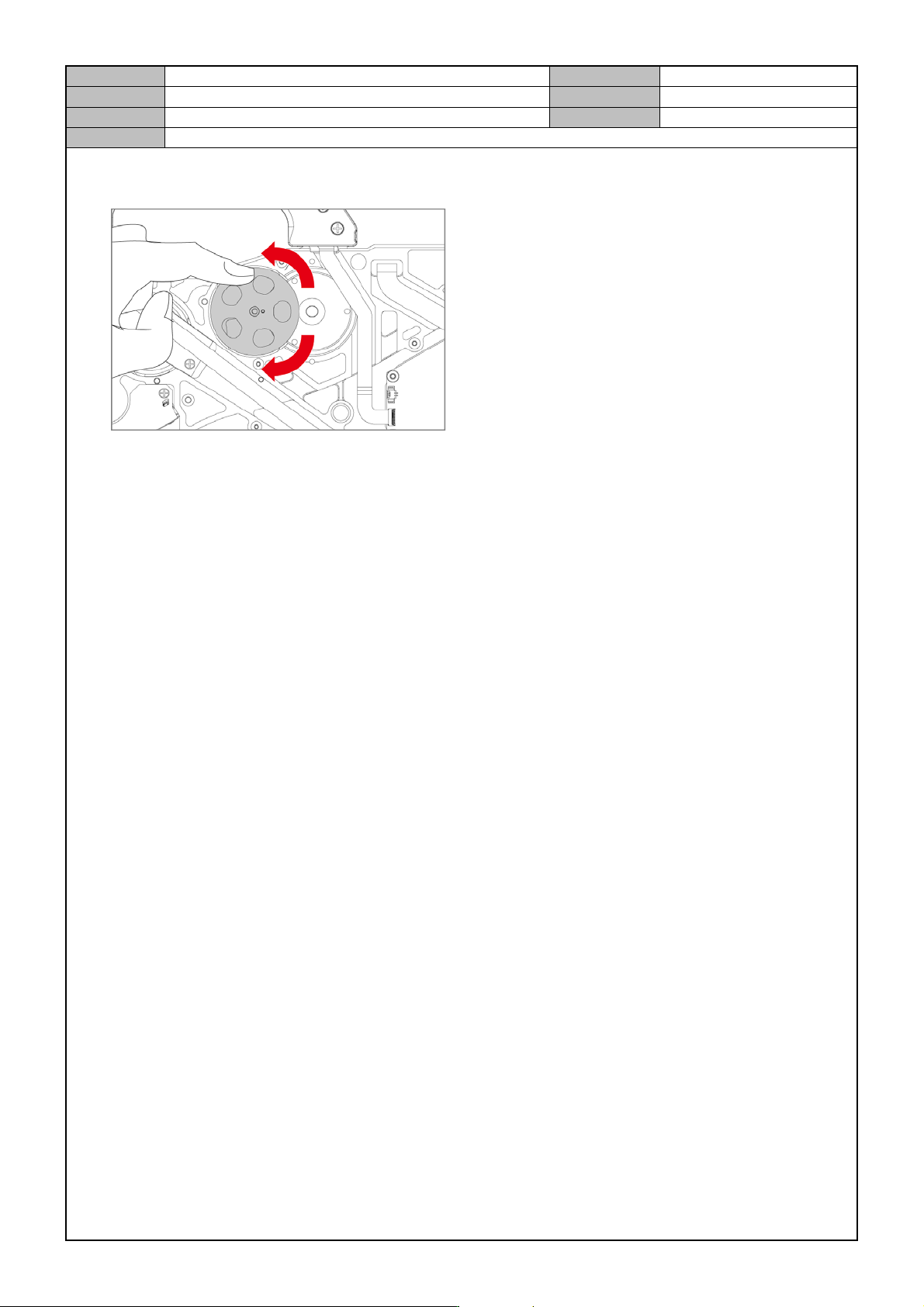

7. Turn the Motor gear CCW and CW to check if the same force is applied to the motor and then completely fix
the screws.
8. Connect the Motor Cable to the Main Board and assemble the cover.
9. Set it after finishing replacement.
- Home setting, Sensor initialization, Mapping
