Model DECAN Series Company SAMSUNG TECHWIN Module 3.16 X-FRAME V ersion 01 Tit le LIMIT SENSOR REPLACEMENT Page 3-16-14 Note [LIMIT SENSOR REPLACEMENT] 1. T urn off the PC and turn of f the Main Switch in the front of th…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.16 X-FRAME
Version
01
Title
MOTOR DRIVER ASSEMBLY
Page
3-16-13
Note
3. Set the Dip Switch for the Step Motor Driver.
4. Connect the cable.
Specification Part name START END
SM41 SC006 MC1 ENABLE CABLE ASSY
MC1/+A1,21
MC1/-A2,22
SC-CN18,
SC-CN19
SM411 PW029 SHUTTLE WIDTH PW CABLE ASS Y
MS1.WS1,WW1,MS2.WS2.
WW2-CN1
DP2-CN2,
3,4,5
SM471 PW007 CABLE ASSY-CP1 TB1 MC1 TB1-1A,6A CP1-2,4
SM471 PW008 CABLE ASSY-CP2 TB1 MC2 CABLE MC1-1,3,5 TB1-13A,15A CP3-2,4,6
SM471 PW018 CABLE ASSY-FY1 FY2 SERVO POWER
TB1-13C,15C,17C,19C,21C
PE15,16
FY1, FY2
DRV
SM471 PW019 CABLE ASSY-RY1 RY2 SERVO POWER
TB1-14C,16C,18C,20C,22C
PE17,18
RY1, RY2
DRV
SM471 PW111-2 CABLE ASSY-TB1 FS1 FS2 TB1-9C,10C FS1,FS2-B
SM471 PW115 CABLE ASSY-MC1 TB1 MC1-2,4,6
TB1-17A,1
9A,21A
SM471 PW120-3 CABLE ASSY-TB1 MC1 MC1-13 TB1-11B
SM471 SC007-1 AXIO BD 1 PWR CABLE ASSY SC-CN27
AXIO#1-C
N2
SM511 PW016 LI
QI
CABLE ASSY-FX,FS SERVO POWER
TB1-13B,15B,17B,19B,21B
PE11,12
FX,FS-
DRV
FX,FS-PE
SM511 PW017 LI
QI
CABLE ASSY-RX,RS SERVO POWER
TB1-14B,16B,18B,20B,22B
PE13,14
RX, RS-
DRV
RX, RS-PE
SM511 PW112 CABLE ASSY-FAN POW E R TB1-6D, TB1-7D
FS3-B, FS4
-B
SM511 PW113 CABLE ASS Y-SERVO FAN POWER TB1-8D FS5-B
SM511C VM003 CABLE ASSY-FY1 FY2 DRV COMMAND
AXIO#1-CN1 1, AXIO#1-CN
12
FY1,2-DR
V
SM511C VM004 CABLE ASSY-RY1 RY2 DRV COMMAND
AXIO#1-CN13, AXIO#1-CN
14
RY1,2-DR
V
SM511C VM005 CABLE ASSY-FX FS DRV COMMAND
AXIO#1-CN15, AXIO#1-CN
16
FX,RX-DR
V
SM51 1C VM 013 CABLE ASSY-MS1 WS1 DRV COMMAN
AXIO#1-CN21, AXIO#1-CN
22
MS1,WS1-
DRV
SM51 1C VM 014
CABLE ASSY-WW1 MS2 DRV COMMAN
D
AXIO#1-CN23, AXIO#1-CN
24
WW1,MS1
-DRV
SM51 1C VM 015
CABLE ASSY-WS2 WW2 DRV COMMAN
D
AXIO#1-CN25, AXIO#1-CN
26
WS2,WW2
-DRV
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.16 X-FRAME
Version
01
Title
LIMIT SENSOR REPLACEMENT
Page
3-16-14
Note
[LIMIT SENSOR REPLACEMENT]
1. Turn off the PC and turn off the Main Switch in the front of the equipment.
2. Separate the cable for the sensor you want to replace.
3. Remove the fixing bolts from the sensor.
4. Replace with a new sensor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.16 X-FRAME
Version
01
Title

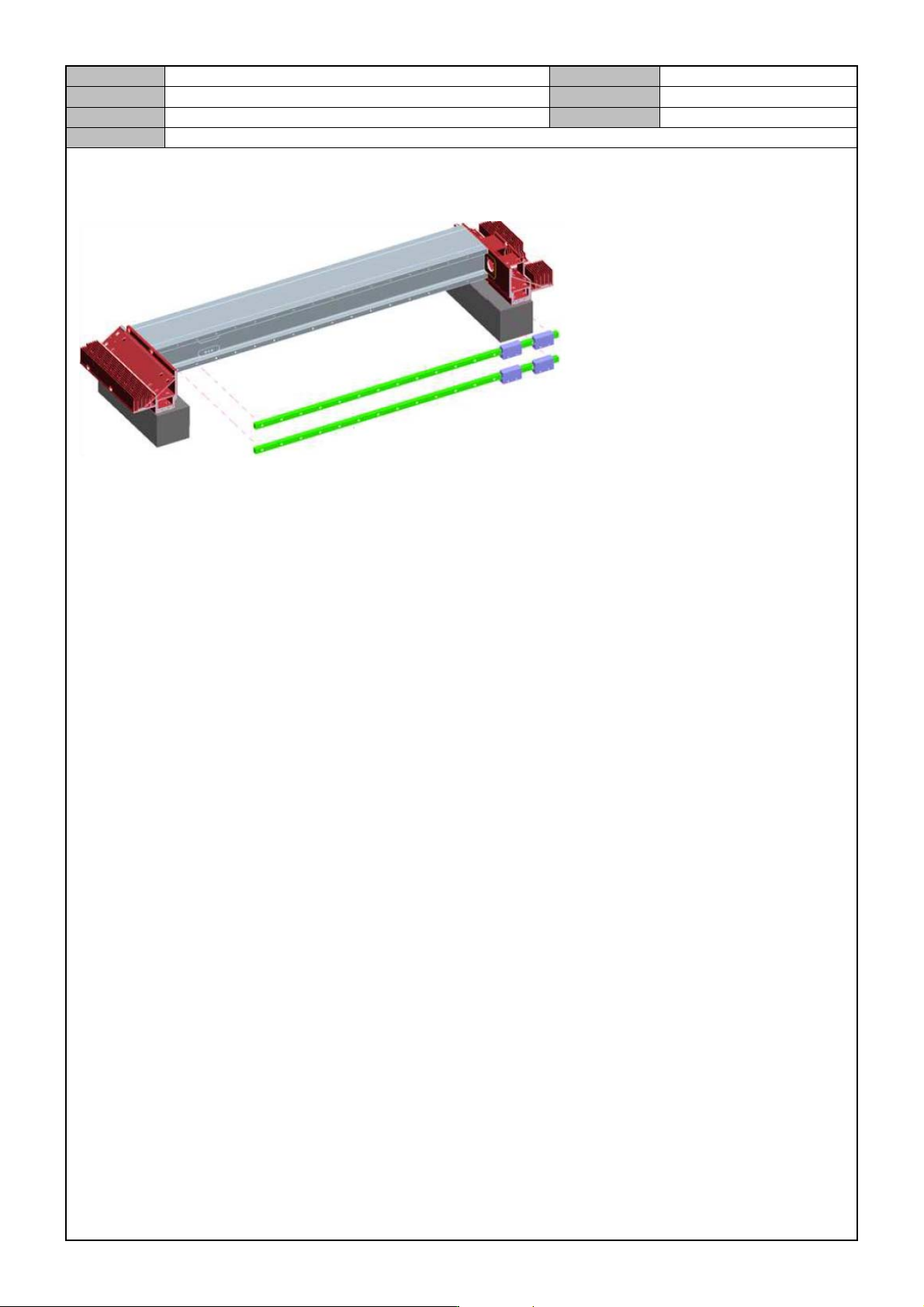

X AXIS LM GUIDE BOLT REASSEMBLY
Page
3-16-15
Note
[X AXIS LM GUIDE BOLT REASSEMBLY]
Fix the center and end bolts first and then fix other bolts.
Using a torque wrench, apply140kgf/cm.
After finishing assembly, check the degree of straightness.
The degree of straightness with respect to the Main Head Base should be less than 0.03.
