Model DECAN Series Company SAMSUNG TECHWIN Module 3.1 1 HEAD V ersion 01 Tit le Z, R AXIS MOTOR PULLEY R EASSEMBL Y (L2) Page 3-1 1-54 Note 4. Separate the Pulley by releasing the Fixing Set Screws. 5. Assemble the Pulle…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (L2)
Page
3-11-53
Note
7. Assemble the Pulley into the Motor as follows.(fixing torque : 6kgf.cm)
8. Assemble the Motor in the reverse order of assembly and adjust the tension by referring to the Z axis Belt
Tension guides.
R axis Motor Pulley
1. Separate the Air Pressure Tube and the Cable connected to the Air Module of the Air Head.
2. Separate the R Sensor Assy.
3. Separate the Cable from the Motor and separate the R axis Motor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
Z, R AXIS MOTOR PULLEY REASSEMBLY (L2)
Page
3-11-54
Note
4. Separate the Pulley by releasing the Fixing Set Screws.
5. Assemble the Pulley into the Motor as follows.(fixing torque : 6kgf.cm)
6. Assemble the Motor in the reverse order of assembly and adjust the tension by referring to the R axis Belt
Tension guides.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title

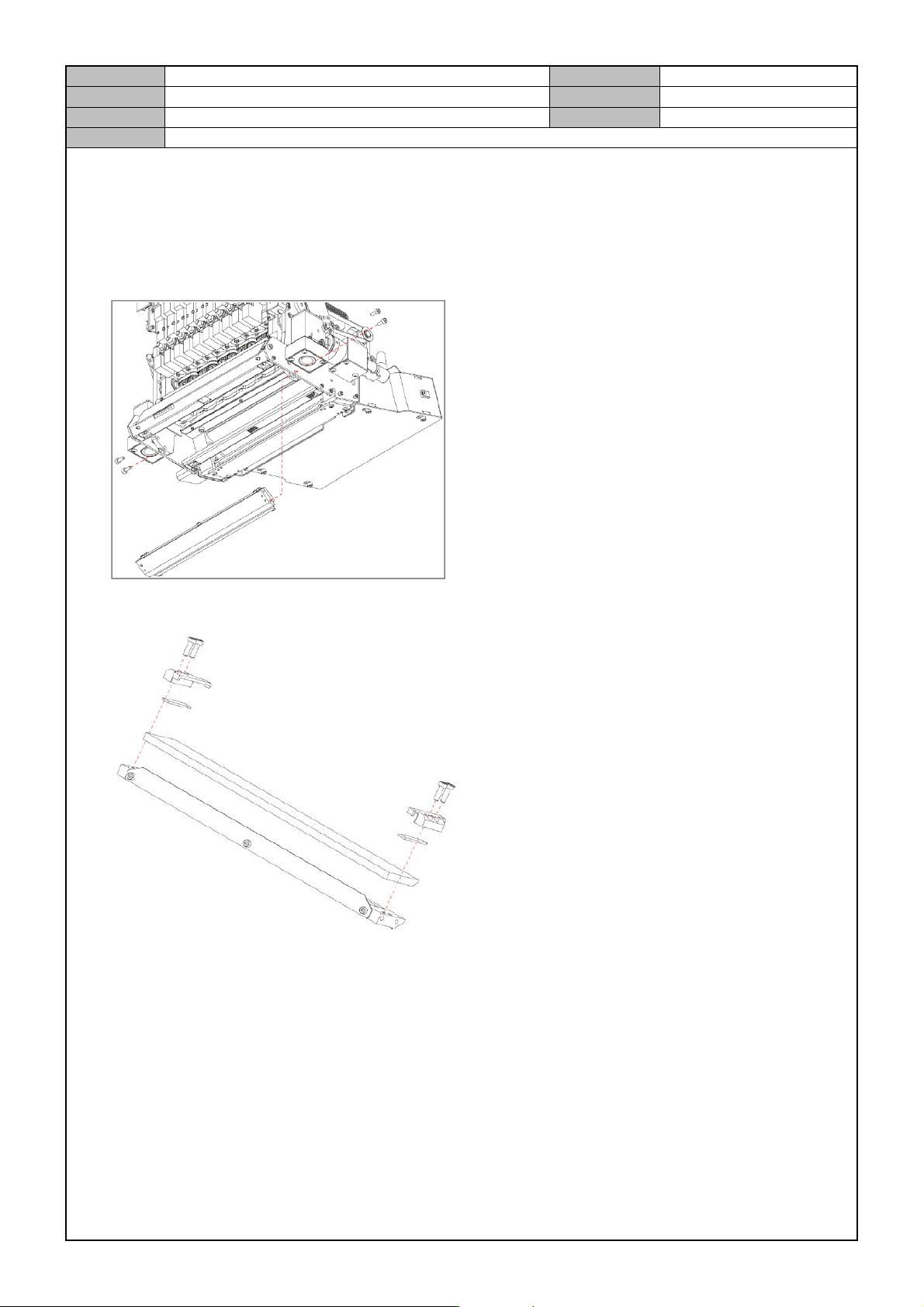

FLY MIRROR REPLACEMENT
Page
3-11-55
Note
[FLY MIRROR REPLACEMENT]
1. Turn off the PC and turn off the Main Switch in the front of the equipment.
2. Separate the Mirror Assy by releasing the fixing bolts.
3. Remove the fixing bolts for the Mirror to separate it.
4. Replace it with a new Mirror.
5. Refer to the following when you assemble it.
When you assemble the Mirror Cush ion into the Mirror Clamp, spray Cushion DP glue first.
On the Mirror Plate, place the Folding Mirror and assemble Clamp 1,2.
Peel off the Mirror protection vinyl from the assembly areas only. After assembly, peel off the rest.
