Model DECAN Series Company SAMSUNG TECHWIN Module 3.19 ELECTRIC DEVICE V ersion 01 Tit le VOL T AGE CHECK TEST Page 3-19-19 Note Inspection units Inspection criteria FRONT HEAD IF BD CN1 : CN1-B1, CN1-A1 DC 24V±0.72 FRON…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-18
Note
Inspection units Inspection criteria
AXIS SENSOR BOARD CN1 : CN1-1, CN1-3
DC 24V±0.72
AXIS SENSOR BOARD CN1 : CN1-2, CN1-4
10. Front/Rear Z/R Axis Drive Fan Power Cable power measurement
Inspection units Inspection criteria
RIGHT FRONT FAN POWER CABLE : 1, 2
DC 24V±0.72
LEFT REAR FAN POWER CABLE : 1, 2
11. Front/Rear Axis IO Board CN2 power measurement
Inspection units Inspection criteria
Front AXIS IO BD CN2 : CN2-1, CN2-3
DC 24V±0.72
Front AXIS IO BD CN2 : CN2-2, CN2-4
Rear AXIS IO BD CN2 : CN2-1, CN2-3
Rear AXIS IO BD CN2 : CN2-2, CN2-4
12. Front/Rear Head IF Board CN1 power measurement
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-19
Note
Inspection units Inspection criteria
FRONT HEAD IF BD CN1 : CN1-B1, CN1-A1
DC 24V±0.72
FRONT HEAD IF BD CN1 : CN1-B2, CN1-A2
REAR HEAD IF BD CN1 : CN1-B1, CN1-A1
REAR HEAD IF BD CN1 : CN1-B2, CN1-A2
13. Front/Rear Z Axis Drive Power Cable voltage measurement
Inspection units Inspection criteria
FRONT Z axis DRIVE POWER CABLE : FZ12-CN5-1, FZ12-CN5-
2
DC 24V±0.72
FRONT Z axis DRIVE POWER CABLE : FZ910-CN5-1, FZ910-CN
5-2
REAR Z axis DRIVE POWER CABLE : RZ12-CN5-1, RZ12-CN5-2
REAR Z axis DRIVE POWER CABLE : RZ910-CN5-1, RZ910-CN
5-2
14. PC Rack Power Cable power measurement
Inspection units Inspection criteria
PC RACK POWER CABLE : L, N AC 220V±10
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
VOLTAGE CHECK TEST
Page
3-19-20
Note
AC/DC power activated with Ready ON.

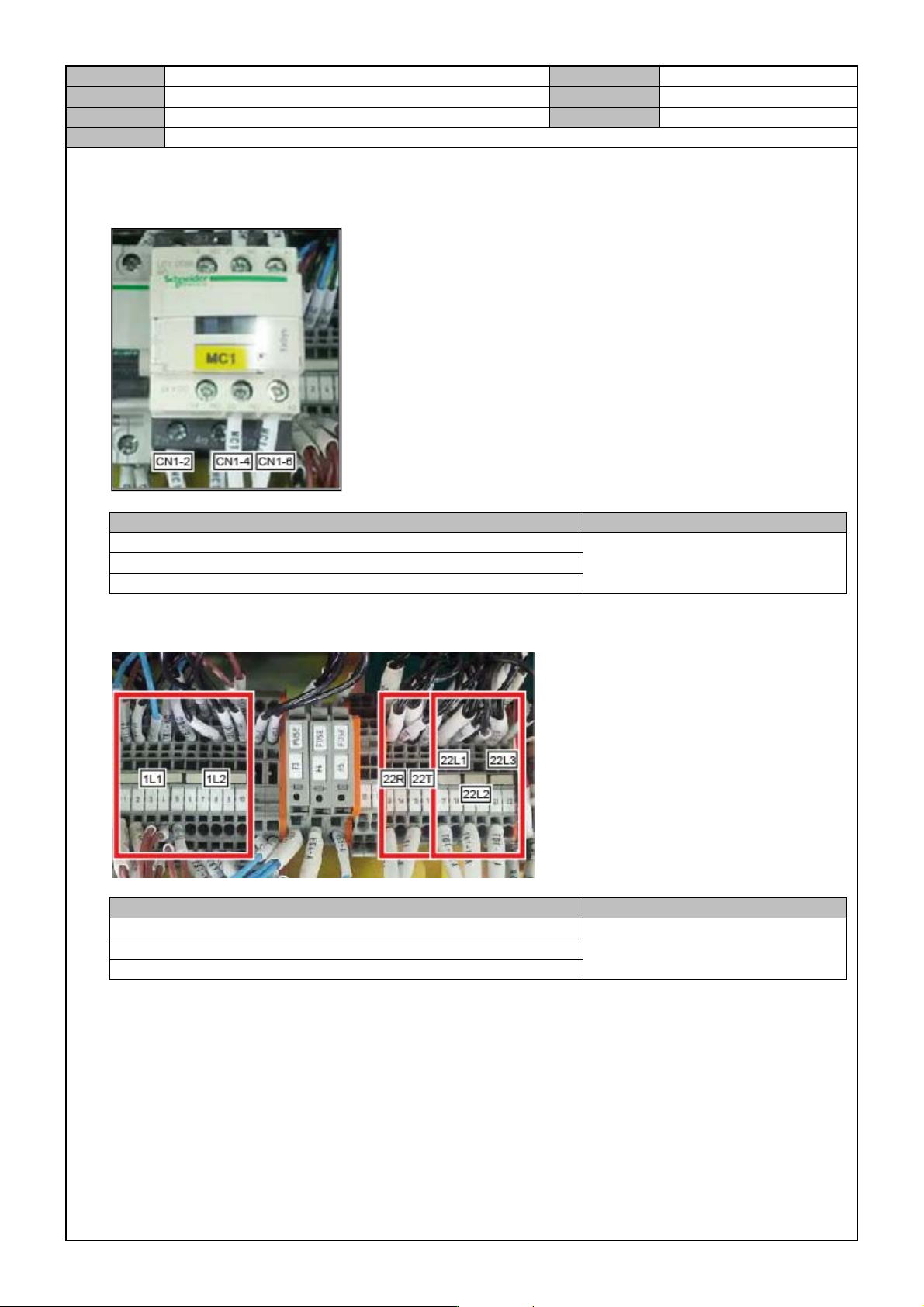

1. MC #1 power measurement
Inspection units Inspection criteria
MC#1 power CHECK : MC1-2 , MC1-4
AC 220V±10
MC#1 power CHECK : MC1-2 , MC1-6
MC#1 power CHECK : MC1-4 , MC1-6
*Condition : Press the contact of MC#1 to access.
2. Terminal Block#1 power measurement
Inspection units Inspection criteria
TB1 AC power CHECK : 22L1 , 22L2
AC 220V±10
TB1 AC power CHECK : 22L1 , 22L3
TB1 AC power CHECK : 22L2 , 22L3
*Condition : Press the contact of MC#1 to access.
3. Relay#1,11 LED ON status check.
4. CP#,1 2 OFF
5. Disconnect the tool cable from the Safety Control Board.
6. Connect the X,Y1,Y2,WD,SW Driver CONTROL POWER Connector.
