Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.17 Y-FRAME
Version
01
Title
XY DUCT I NSPECTION
Page
3-17-8
Note
[XY DUCT INSPECTION]
No. Item Criteria
1
Make sure that the HEAD is as firmly pressed in
the X (-) direction as possible, and then check
for cable interferences.
10~15mm GAP should exist.
2
Check if the BKT CONNECTOR in the top is
properly fixed.
Fix 11 bolts.
3
Check the X frame and flat cable height where
the X frame intersects with the Y frame.
15mm or less
4 Check one marking in the air wiring joint. 18 units air wiring units I MARKING
5
Check the I MARKING after wiring the FLAT
CABLE.
14 units FLAT CABLE wiring units I
MARKING
6 Check for noises after wiring the flat cable. There should be no noises.
7
Check for interference between the Z motor
driver cover and the flat cable.
No interference.
8
Check if the X1-XY-CABLE-DUCT SERIAL
NUMBER is filled out.
Write the SERIAL NUMBER.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.17 Y-FRAME
Version
01
Title
XY EXTERIOR CHECK
Page
3-17-9
Note

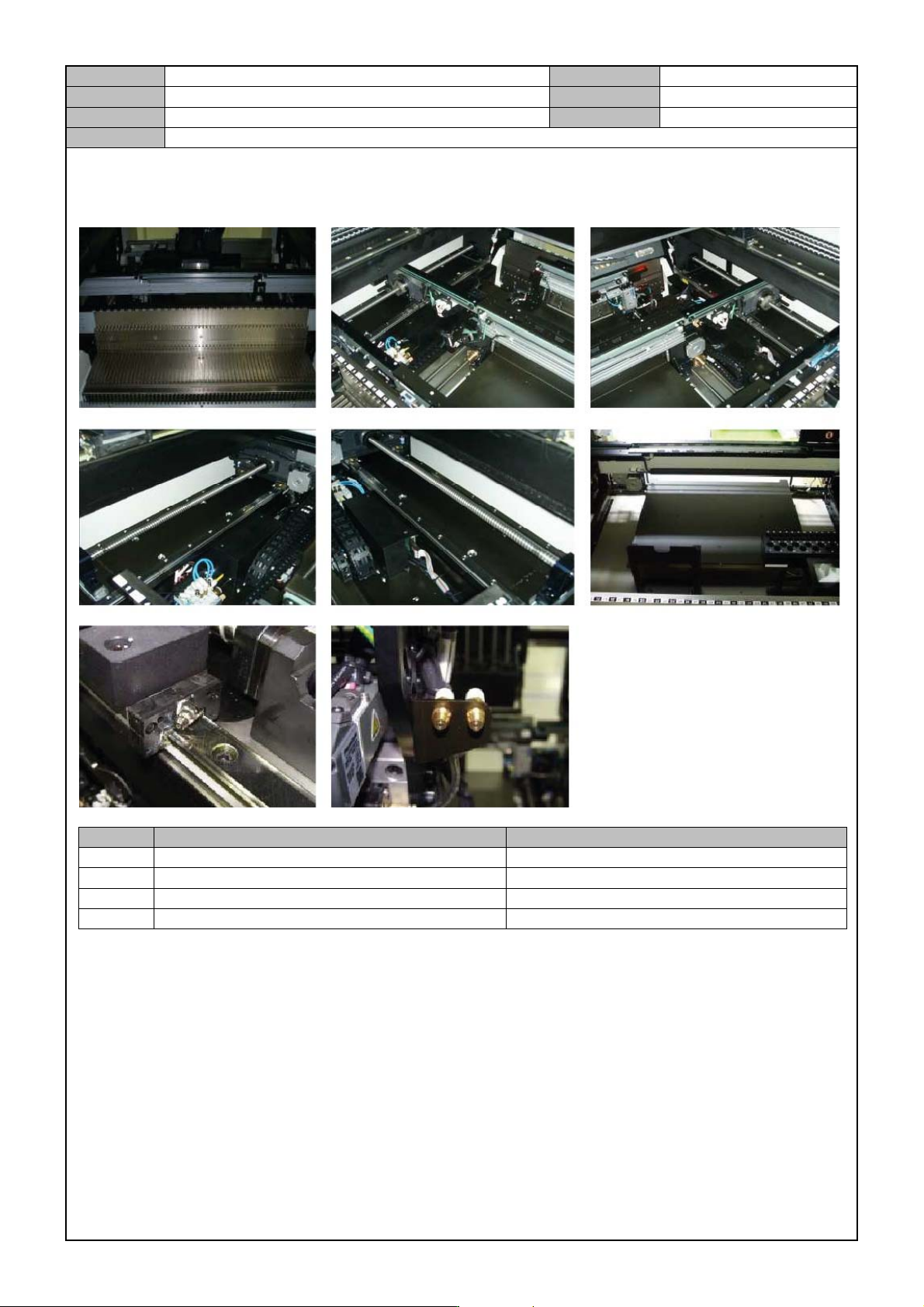

[XY EXTERIOR CHECK]
No. Item Criteria
1 Are there alien substances inside the equipment? Use a vacuum cleaner for cleaning.
2 Remove waste greases. Use a clean cloth to wipe off.
3 Damage in the cover exterior. Scratches, etc.. Paint or replace it.
4 Alien substances in the grease injection hole. Use a clean cloth to wipe off.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.17 Y-FRAME
Version
01
Title
MOTOR DRIVER ASSEMBLY
Page
3-17-10
Note

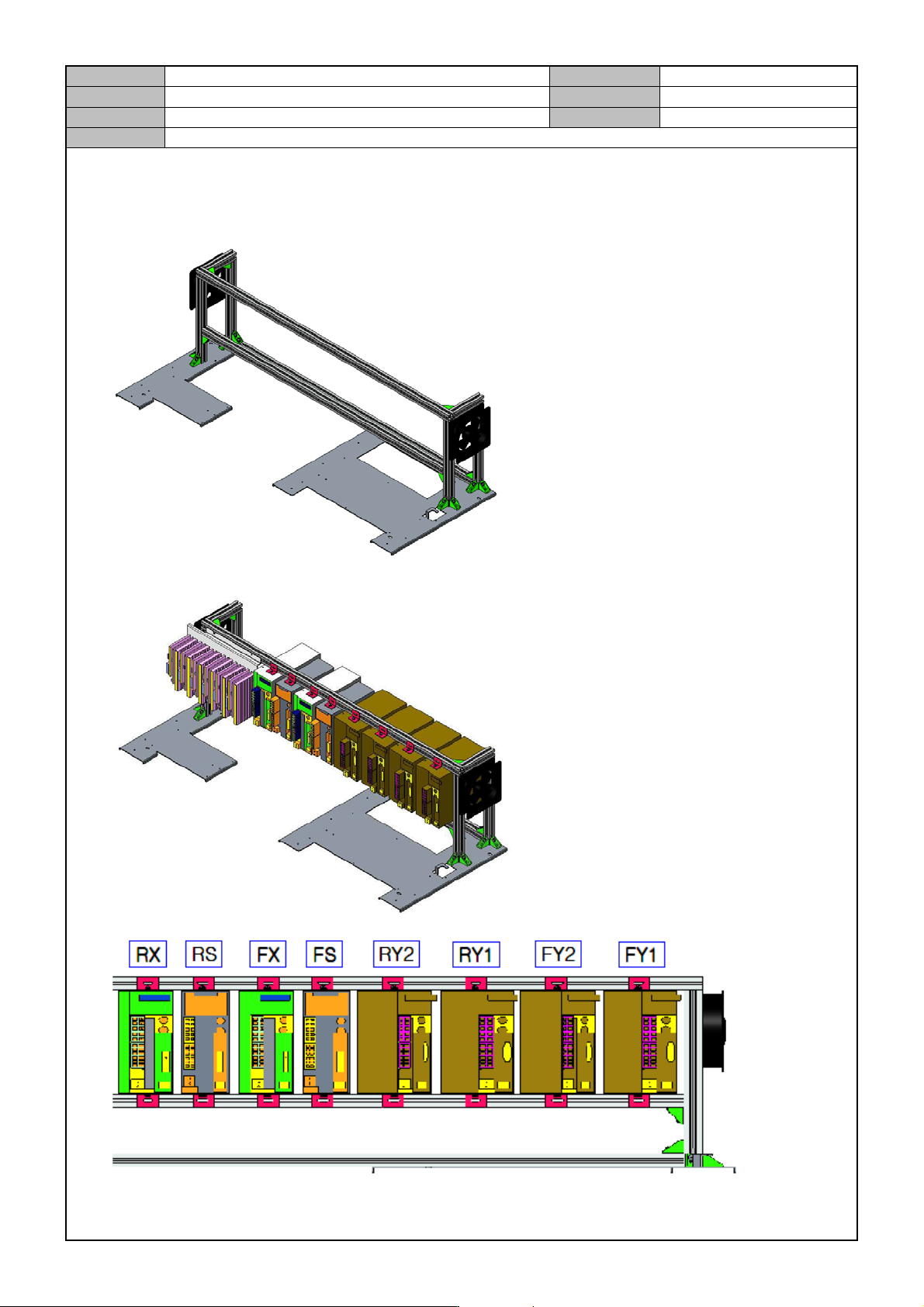

[MOTOR DRIVER ASSEMBLY]
1. Prepare a bracket.
2. Assemble the Motor Driver.
