Model DECAN Series Company SAMSUNG TECHWIN Module 3.5 CONVEYOR V ersion 01 Tit le FIDUCIAL MARK CHE CK Page 3-5-31 Note [FIDUCIAL MARK CHECK] Make sure that the Fiducial Disk Mark is faced downward when you assemble it…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
STOPPER CYLINDER REPLACEMENT
Page
3-5-30
Note

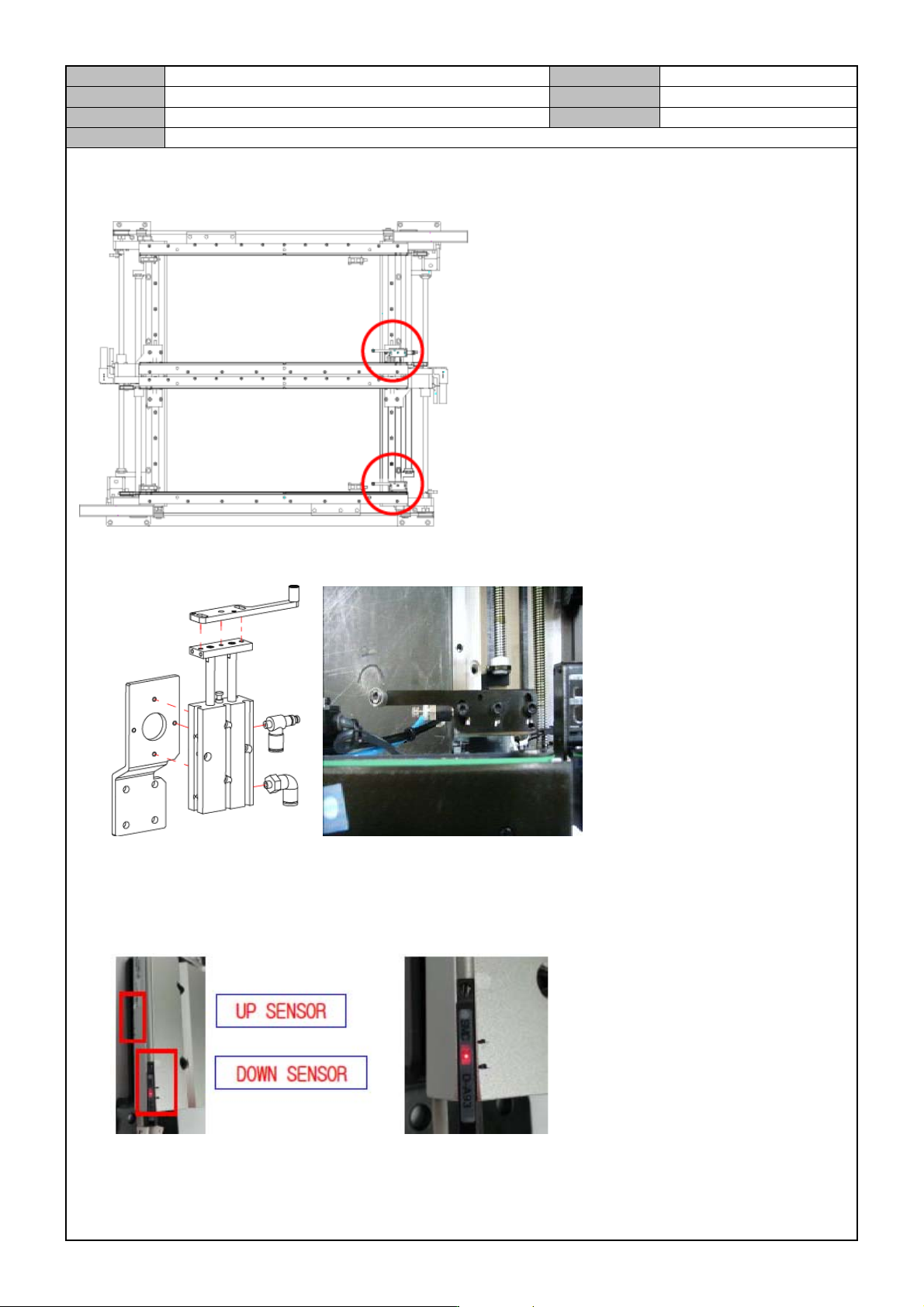

[STOPPER CYLINDER REPLACEMENT]
Assemble the Stopper Cylinder.
Pay attention to the direction of the Stopper Top Plate when you assemble it.
Assemble the Stopper Sensor.
Make sure that the Up Sensor is on the Entry side.
The Up Sensor Down Sensor's LED On region is displayed.
Give one I marking on the top of the sensor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.5 CONVEYOR
Version
01
Title
FIDUCIAL MARK CHE CK
Page
3-5-31
Note

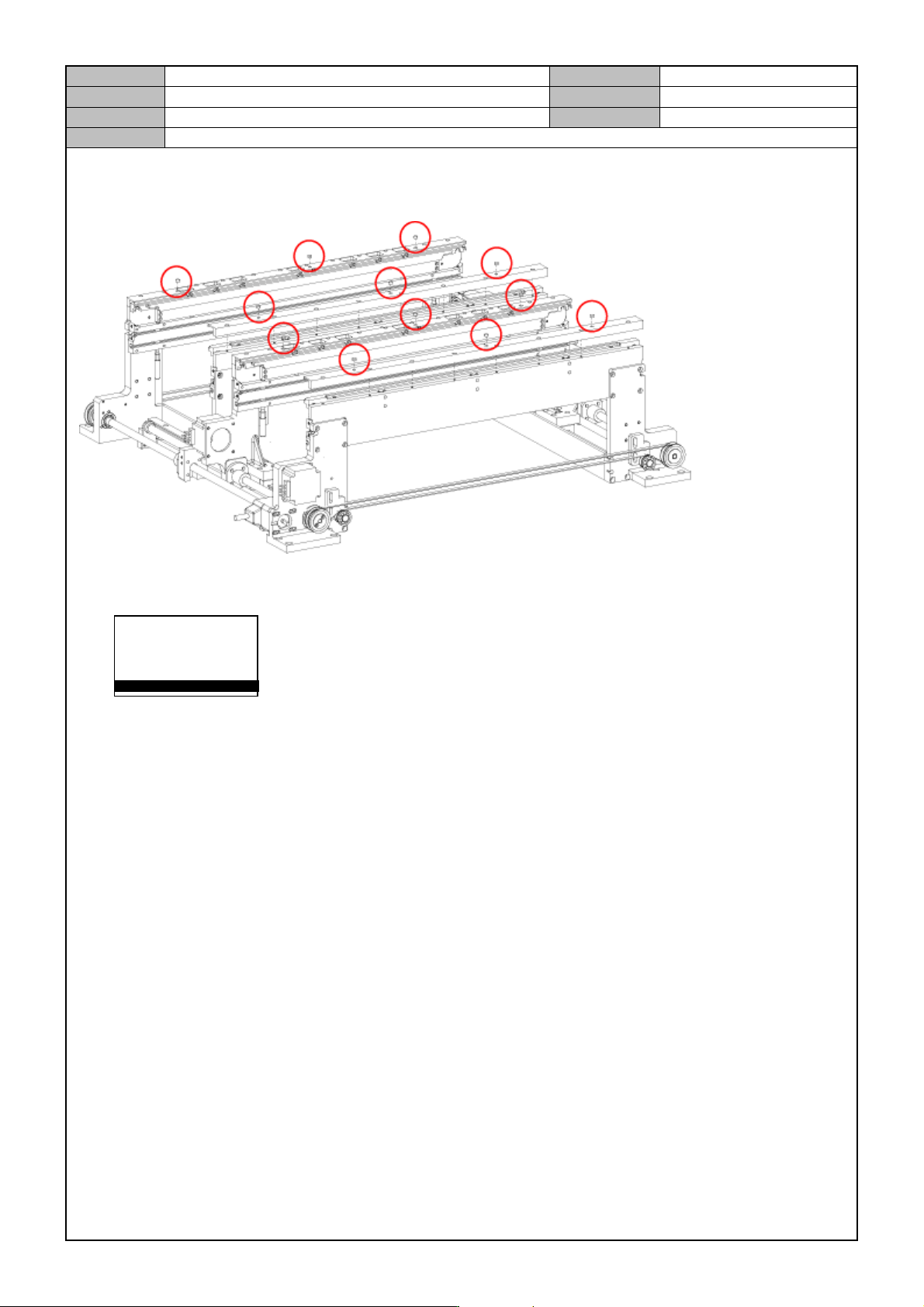

[FIDUCIAL MARK CHECK]
Make sure that the Fiducial Disk Mark is faced downward when you assemble it.
Spray Loctite 401.
Using a height gauge, check if the degree of flatness of the Fiducial Disk is less than 0.05.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.6 COVER
Total Pages
4
Table of Contents
[SAFETY SENSOR OPERATION CHECK(MMI)] ................................................ 2
[MONITOR INSTALLATION] ............................................................................... 4
