Model DECAN Series Company SAMSUNG TECHWIN Module 3.1 1 HEAD V ersion 01 Tit le HEAD ASSE MBL Y (L2) Page 3-1 1-16 Note 5. Remove the sub jig to be delivered to the customer . 6. Completely fix the screws in the Harness …

100%1 / 355
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD ASSEMBLY (L2)
Page
3-11-15
Note
[HEAD ASSEMBLY (L2)]
1. Clean the Head Base.
2. Mount the Head in the Head Base.
*Z Motor should not collide with the Head Base, causing damages.
3. Insert two pins in the front and two pins in the rear and then assemble it.
4. Temporarily fix screw 1/2 of the Harness Support unit.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD ASSEMBLY (L2)
Page
3-11-16
Note
5. Remove the sub jig to be delivered to the customer.
6. Completely fix the screws in the Harness Support.
*Torque : 80
7. Connect the left/right grease tube on the head.
8. While moving the head to the left/right on the X axis, check for interference.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.11 HEAD
Version
01
Title
HEAD AMP ASSEMBLY (F2)
Page
3-11-17
Note

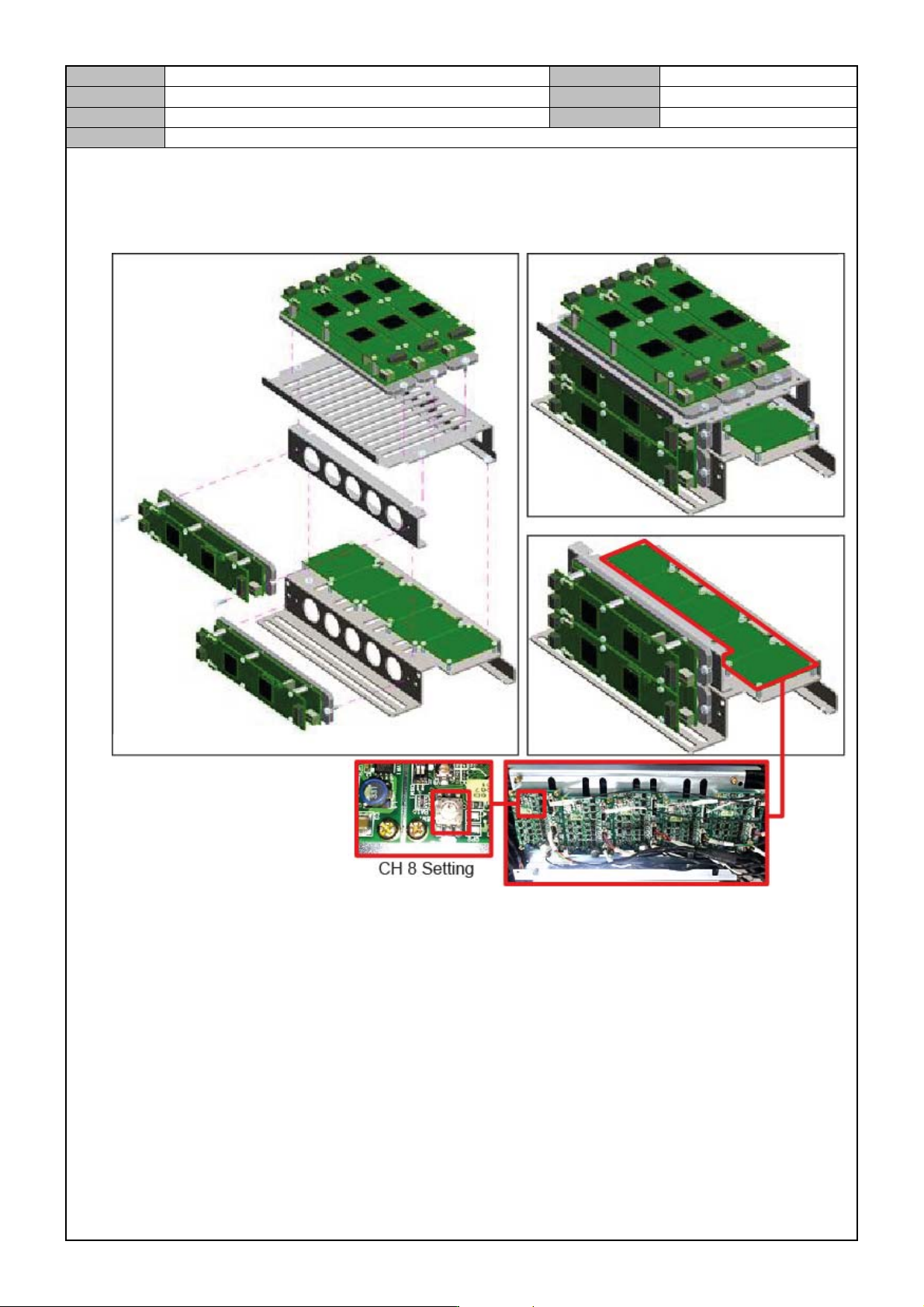

[HEAD AMP ASSEMBLY (F2)]
Head AMP Assembly
