Model DECAN Series Company SAMSUNG TECHWIN Module 3.12 MMI V ersion 01 Tit le MOTOR IO CHECK Page 3-12-19 Note Check the Conveyor Sensor . Check detection by the Shuttle Conveyor (Shuttle - Dual - Shuttle) Sensor . …
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-18
Note

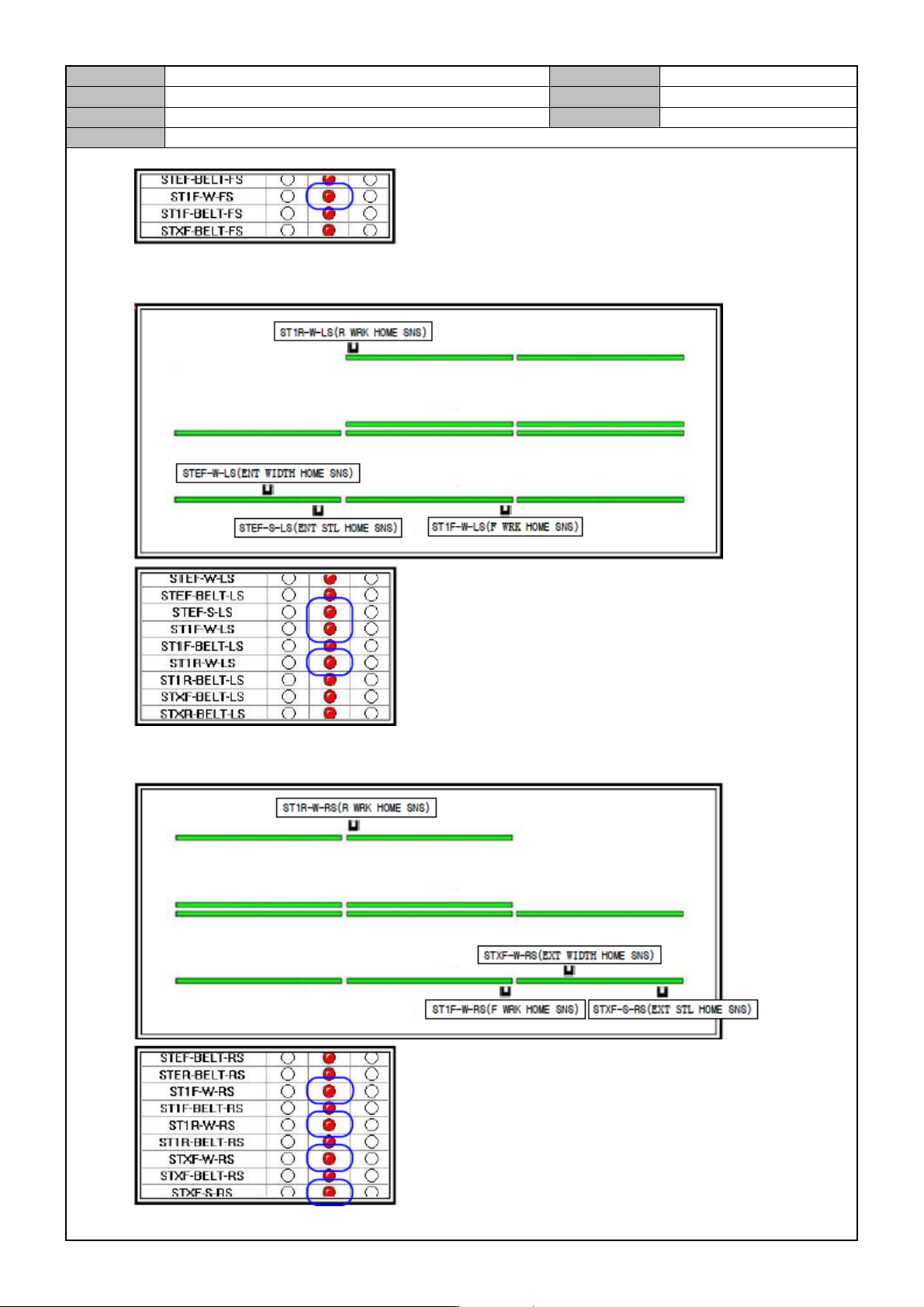

② Move the X axis and check if the following is detected: G1F-X(Home, -), G1R-X(Home, -) .
③ Check the H1F-Z1~10, H1R-Z1~10 Z axis Home Sensor detection.
④ Check the H1F-R1,3,5,7,9, H1R-R1,3,5,7,9 R axis Home Sensor detection.
Check the Conveyor Sensor.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-19
Note
Check the Conveyor Sensor.
Check detection by the Shuttle Conveyor (Shuttle - Dual - Shuttle) Sensor.
Full Dual Conveyor (Dual - Dual - Dual)
Full Dual Conveyor (Dual - Dual - Dual)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.12 MMI
Version
01
Title
MOTOR IO CHECK
Page
3-12-20
Note
Left Only Shuttle Conveyor (Shuttle - Dual - Dual)
Right Only Shuttle (Dual - Dual - Shuttle)
