Model DECAN Series Company SAMSUNG TECHWIN Module 3.10 FEEDER V ersion 01 Tit le T APE GUIDE REPLACEMENT Page 3-10-2 Note [T APE GUIDE REPLACEMENT] 1. Using a hexagonal wrench, replace the shaft that fixes the tape guide…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Total Pages
16
Table of Contents
[TAPE GUIDE REPLACEMENT] ......................................................................... 2
[INDEX / LOADING SPROCKET CLEANING and REPLACEMENT] .................. 3
[SPLICING SPROCKET CLEANING and REPLACEMENT] ............................... 4
[INDEX MOTOR REPLACEMENT] ...................................................................... 6
[LOADING MOTOR REPLACEMENT] ................................................................ 9
[SPLICING MOTOR REPLACEMENT] .............................................................. 12
[CONTROL BOARD REPLACEMENT] .............................................................. 15
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
TAPE GUIDE REPLACEMENT
Page
3-10-2
Note

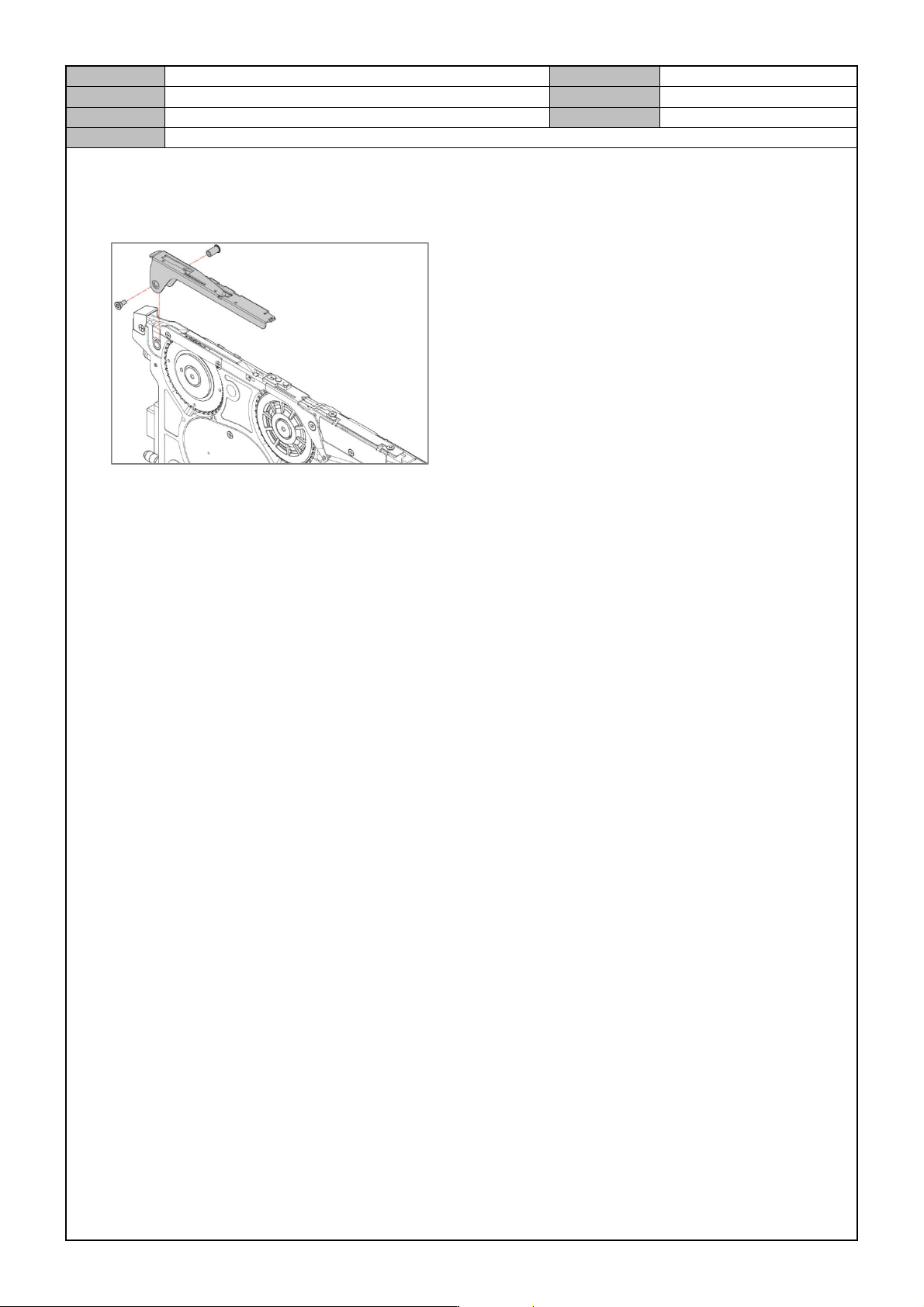

[TAPE GUIDE REPLACEMENT]
1. Using a hexagonal wrench, replace the shaft that fixes the tape guide.
2. Replace the tape guide by separating it from the feeder.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.10 FEEDER
Version
01
Title
INDEX / LOADING SPROCKET CLEANING and
REPLACEMENT
Page
3-10-3
Note

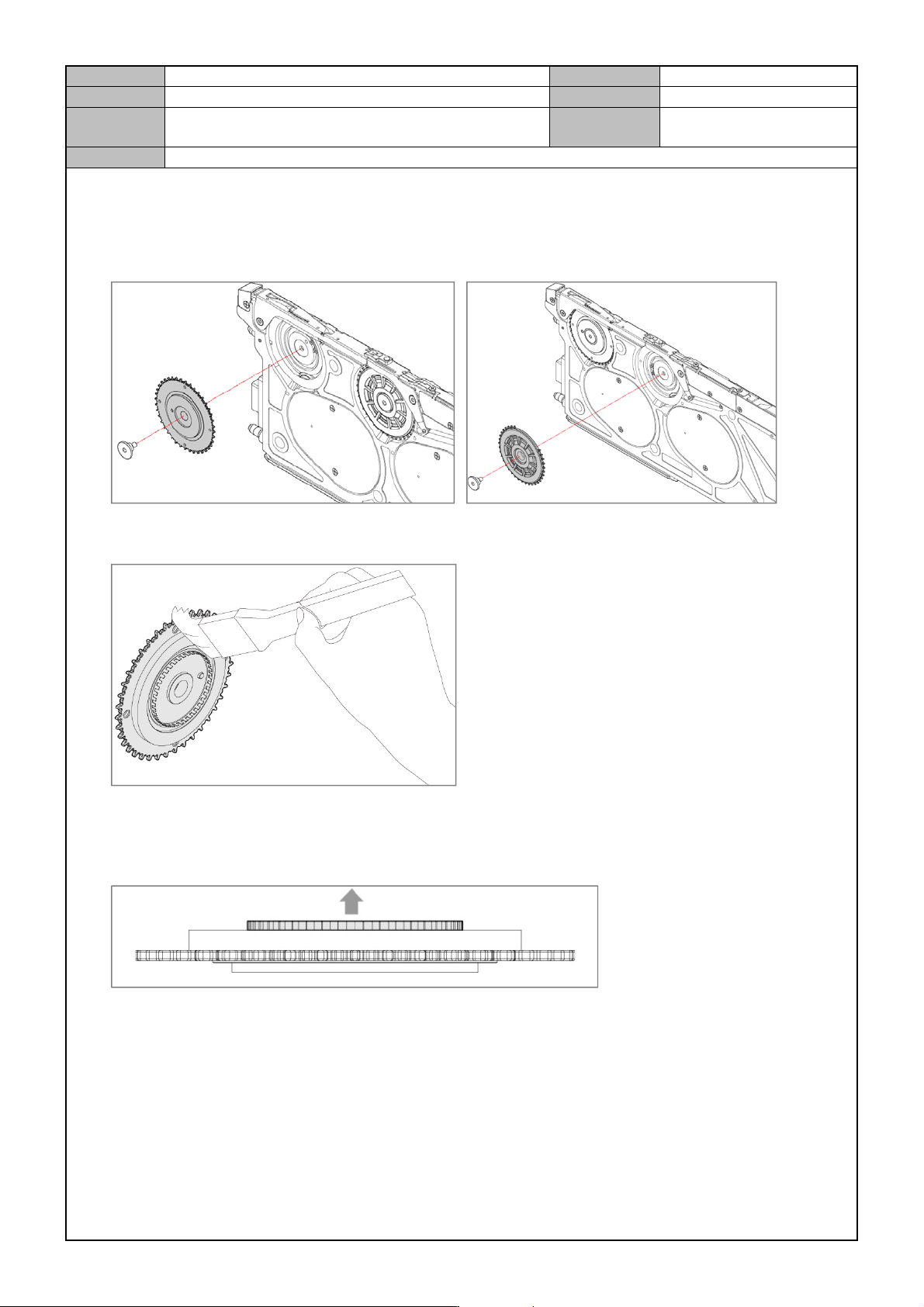

[INDEX / LOADING SPROCKET CLEANING and REPLACEMENT]
1. When replacing the index sprocket or loading sprocket, use a hexagonal wrench to remove the shaft that
fixes the sprocket and then separate the Index sprocket from the Feeder.
Index Sprocket Loading Sprocket
2. After wiping off the Sprocket Gear with a clean cloth, spray grease.
3. Spray LOCTITE 641 on the shaft.
* Make sure that the Sensor Dog is always faced upward and there is no alien substance left on it.
4. Set the home after assembling the Sprocket into the Feeder's main body.
- Home setting, Sensor initialization, Mapping
