Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title
FLY CAMERA IO BOARD REPLACEMENT
Page
3-2-29
Note
[FLY CAMERA IO BOARD REPLACEMENT]
Fly Camera IO Board supplies power to the Fly Camera and sends video recorded by the Fly Camera to the
Vision Board.
1. Separate the cable connected to the board.
2. Separate the Flying IO Board Assy by releasing the fixing bolts.
3. Remove the fixing bolts for the board and replace it with a new board.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title

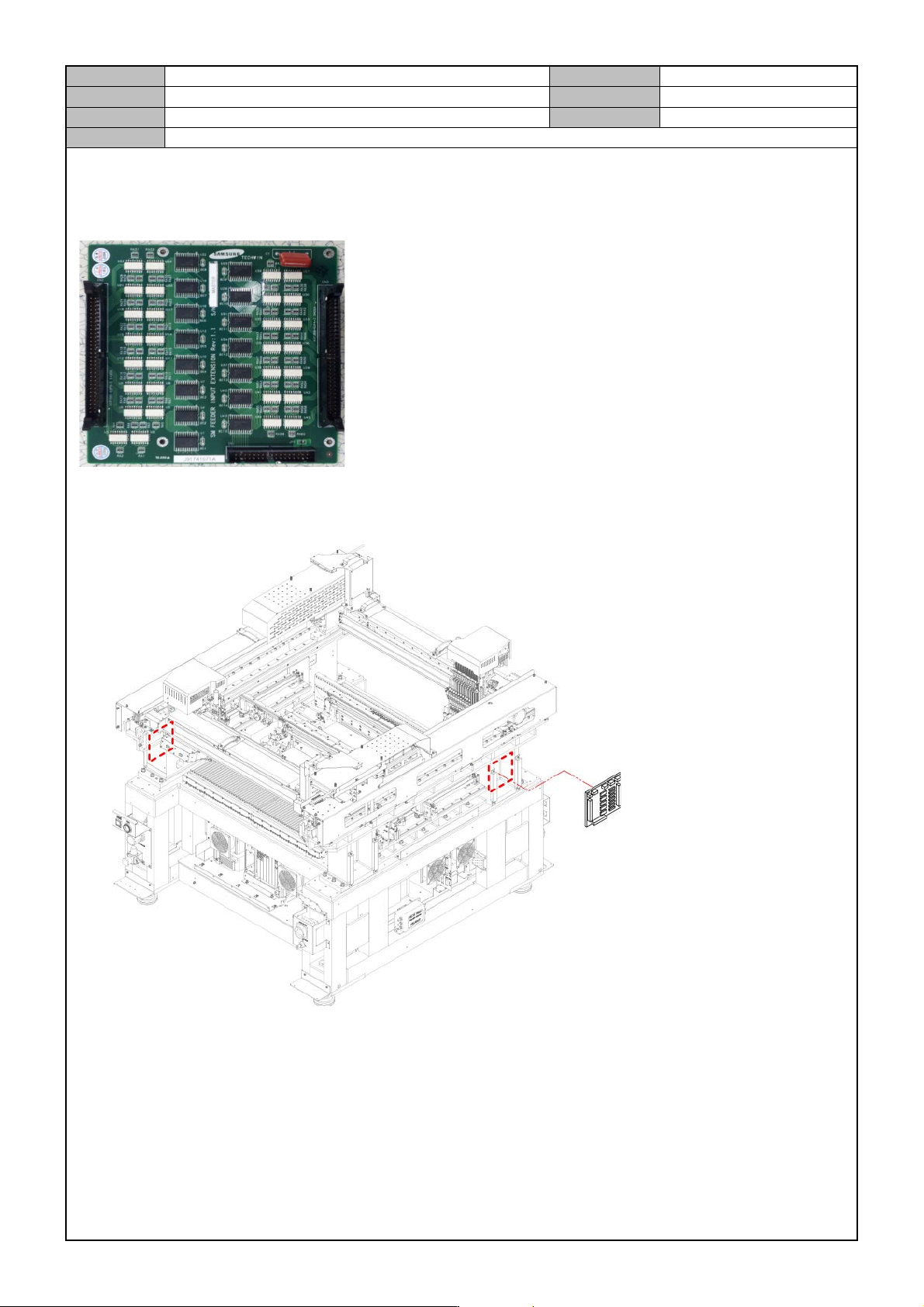

FEEDER IO BOARD REPLACEMENT
Page
3-2-30
Note
[FEEDER IO BOARD REPLACEMENT]
Feeder IO Board controls operation of the Feeder and processes the signals sent from the Feeder Input EXT
Board.
1. Separate the cable connected to the board.
2. Remove the fixing bolts for the board and replace it with a new board.
3. Set the Rotary switch as follows before assembling the board.
On the left board of the equipment, set SW4 : 1.
On the right board of the equipment, set SW4 : 2.
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.2 BOARD
Version
01
Title
FEEDER INPUT EXT BOARD REPLACEMENT
Page
3-2-31
Note
[FEEDER INPUT EXT BOARD REPLACEMENT]
Feeder Input EXT Board notifies the Feeder IO Board of mounting/dismounting and feeding of the Feeder.
1. Separate the cable connected to the board.
2. Remove the fixing bolts for the board and replace it with a new board.
