1OM-1610
2-3
1. Starting : Chap.2
0911-001
1.2 Select Login User
When the [Maintenance] button is pressed in the "TOP" window, the following
window appears.
Note
When the [Product] button or [Set-up] button is pressed, the operator can be
logged as qualied as "OPERATOR 2".
[1]
[2]
F1B3
[1] Select Login User Button
In this machine, the password and the available function range for each
log-in user can be set to avoid trouble where any third person operates this
machine without permission, and to eliminate the possibility that any of the
various data is deleted in error.
[Operator #1] Button
Access can be gained by only the person identi ed as "Operator #1". For
example, the operator is given a permission to edit the data and operate the
machine.
[Operator #2] Button
Access can be gained by only the person identi ed as "Operator #2". For
example, the operator is limited to the operations related to the automatic
operation of the machine.
[Supervisor] Button
This button is for the person in charge of the management of the machine.
Using this button, all the functions are available.
Reference
Refer to "5. Password Setting" in "Chapter 2 (Vol. 3)" for how to set a
password and the range of available functions.
[2] [CANCEL] Button
When this button is pressed, the log-in user selection is cancelled and the
"TOP" window is returned
1OM-1610
2-4
1. Starting : Chap.2
0911-001
1.2.1 Login Procedure
Procedure
(1) Press one of the [Operator #1], [Operator #2] and [Supervisor] log-in user
selection buttons, appropriate for the access given to you.

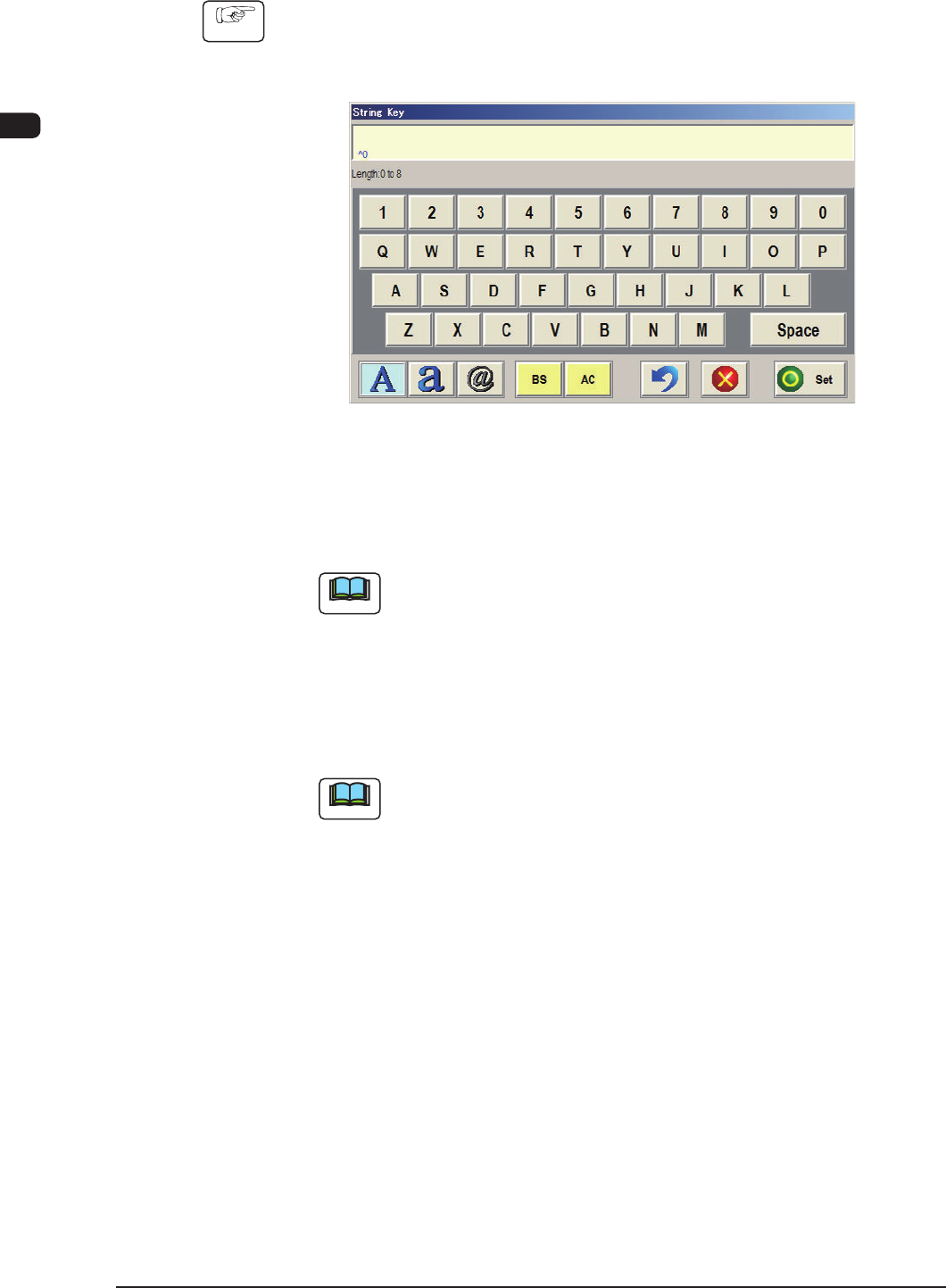

When a password is set, the "String Key" window opens.
F1B4
(2) Entry the specied password.
The entered password is signied by asterisk "*" and will not be disclosed to
anyone.
Note
(a) If no password is entered for 10 seconds after the "String Key"
window is opened, the window closes automatically.
(b) While the "String Key" window is active, no window appears on the
touch screen on the other side (not under operation).
(3) After entering the password, press the [Set] button.
The "MAINT." window appears on the touch screen.
Note
(a) When no password is set, press the [Supervisor], the [Operator #1],
or the [Operator #2] button according to the given authority. The
"Maintenance" window appears on the touch screen.
(b) The available function range in the "Maintenance" window varies
depending on the type of the log-in user.
1OM-1610
2-5
2. Operation Screen : Chap.2
0911-001

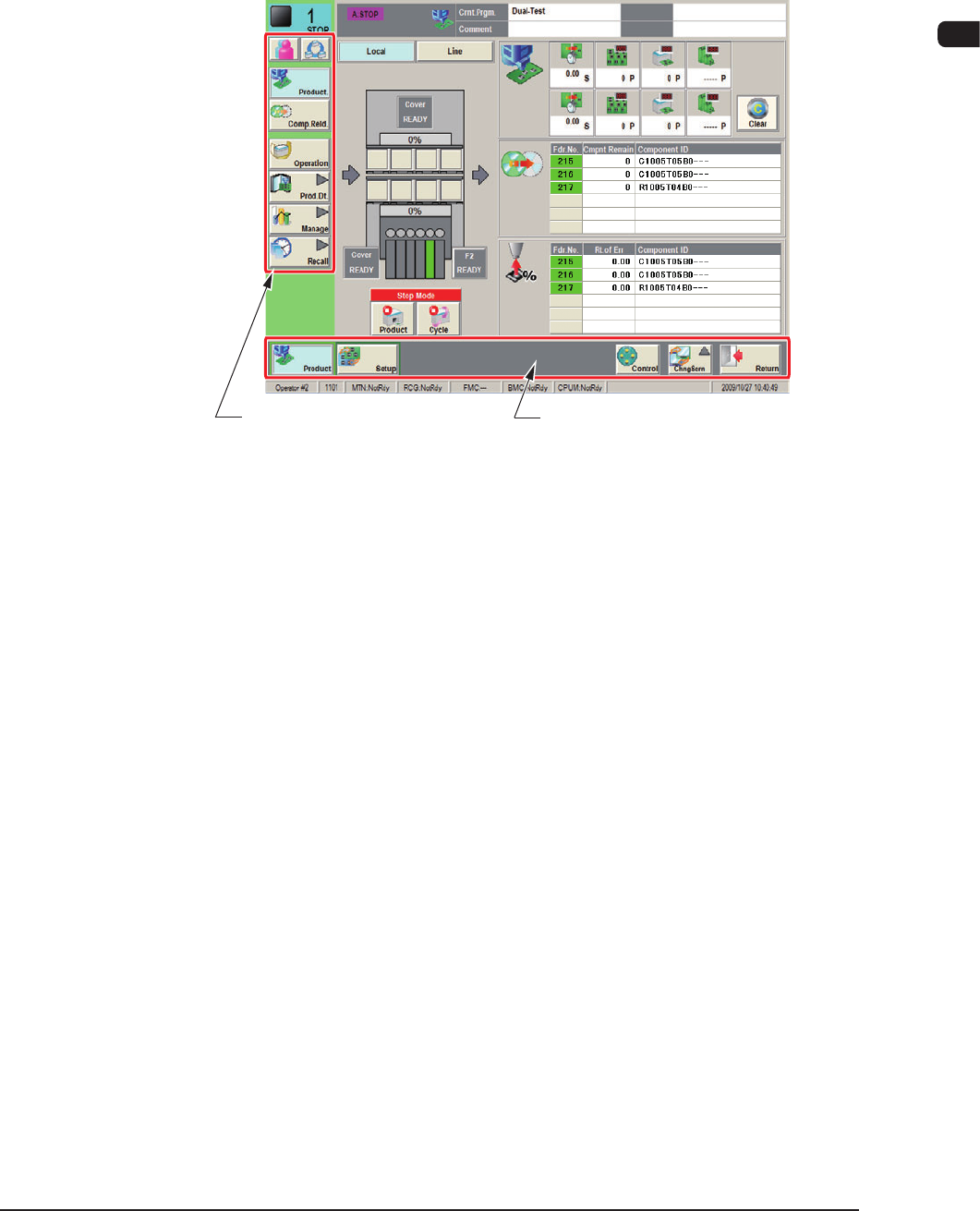

2. Operation Screen
2.1 Main Menu Bar
The buttons selected in the common menu bar are displayed in this window.
Main Menu Bar Common Menu Bar
F1B5
