1OM-1610
4-14
3. Program Change Operation : Chap.4
(3) While holding the nozzle stocker by hand, push down the lever of the nozzle
stocker section and detach the nozzle stocker from the nozzle stocker section.

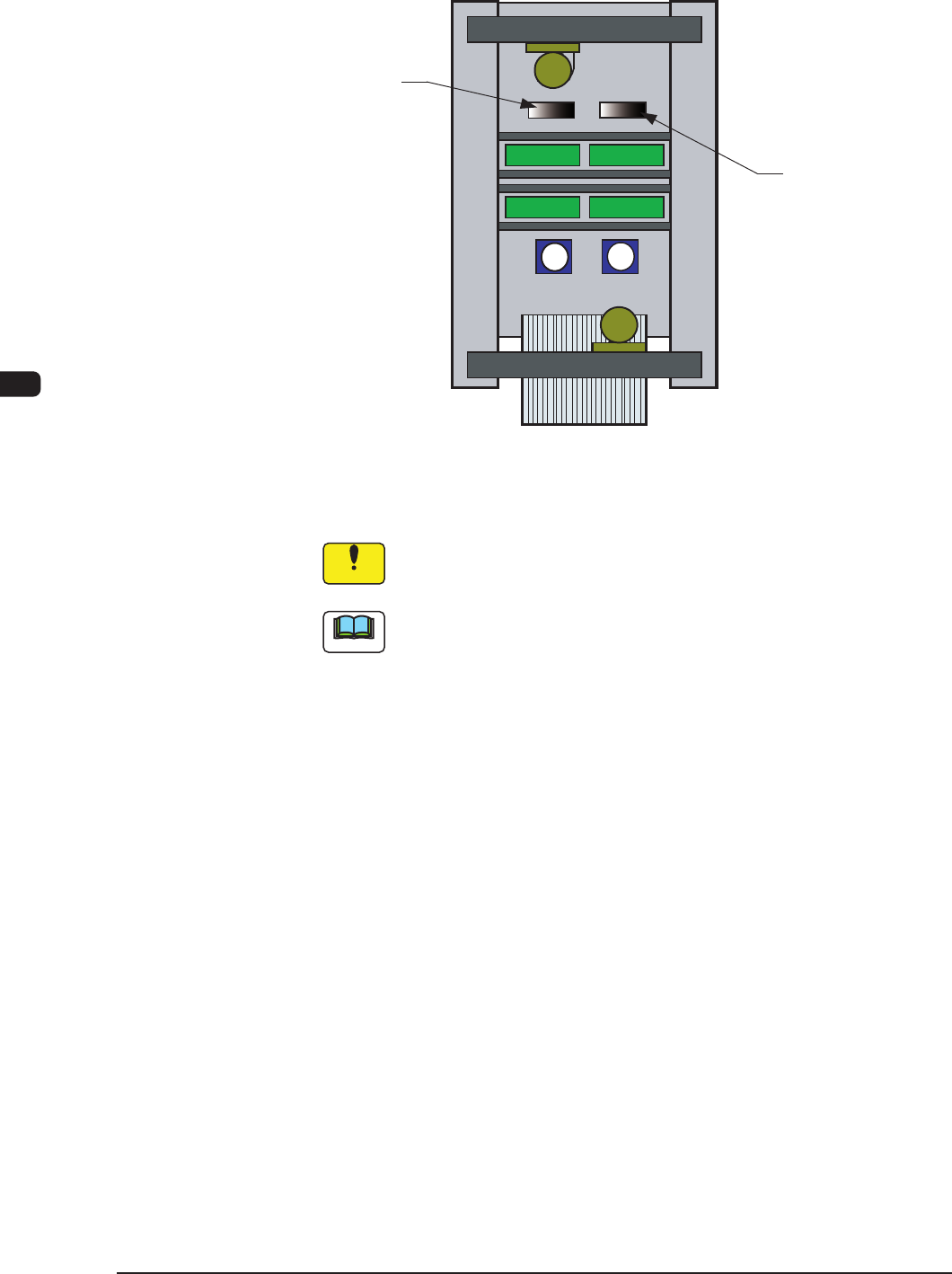

Stocker Section
Stocker Section
F1D16
(4) Slide the nozzle stocker shutter and detach all vacuum nozzles.
Notice
Whenever the vacuum nozzles are stored in or picked up from the
nozzle stocker, be sure to slide the nozzle stocker shutter.
Note
It is advisable that the vacuum nozzles required after a program change
operation be prepared beforehand in the nozzle stocker change unit
(accessory part) because the time for vacuum nozzle change operation can
be shortened.
0911-001
1OM-1610
4-15
3. Program Change Operation : Chap.4
(5) Slide the nozzle stocker shutter and set all vacuum nozzles to be used in the
nozzle stocker.
Notice
(a) Attach the vacuum nozzles correctly in the nozzle stockers.
Do not operate the machine with a vacuum nozzle being left on the
nozzle stocker shutter. Otherwise, the machine will break down.
(b) When a middle-size odd-shaped nozzle must be set in a nozzle
stocker, the mark on the nozzle must face the right side (viewed
from the feeder side).
If the nozzle is set in a wrong direction, an "ERROR" window will
openduringthenozzleidentication,causingthe
machinetostop
running.
(6) Attach the nozzle stocker to the machine.
(7) Press the [Change] button in the "NOZ.CHG." window.
In 10 seconds, press the [START] button on the operation panel to attach the
vacuum nozzle to the placement head.
Note
When the machine is provided with an extended nozzle stocker (option)
and vacuum nozzles (to be used after a program change operation) are
prepared in the extended stocker, the nozzles are stored and attached in
succession.
(8) Select the [Conrm] button in the "NOZ.CHG." window and press the
[START] button on the operation panel to check if the correct nozzles are
attached or not.
0911-001
1OM-1610
4-16
3. Program Change Operation : Chap.4
3.5 ConrmationofPCBTransferandPositioning
The following describes how to check the status of the PCB transfer and
positioning in the "PCB XFER" window (a menu of "AUTO OPN").
Procedure
(1) Display the "PCB XFER" window using the following icon procedure.

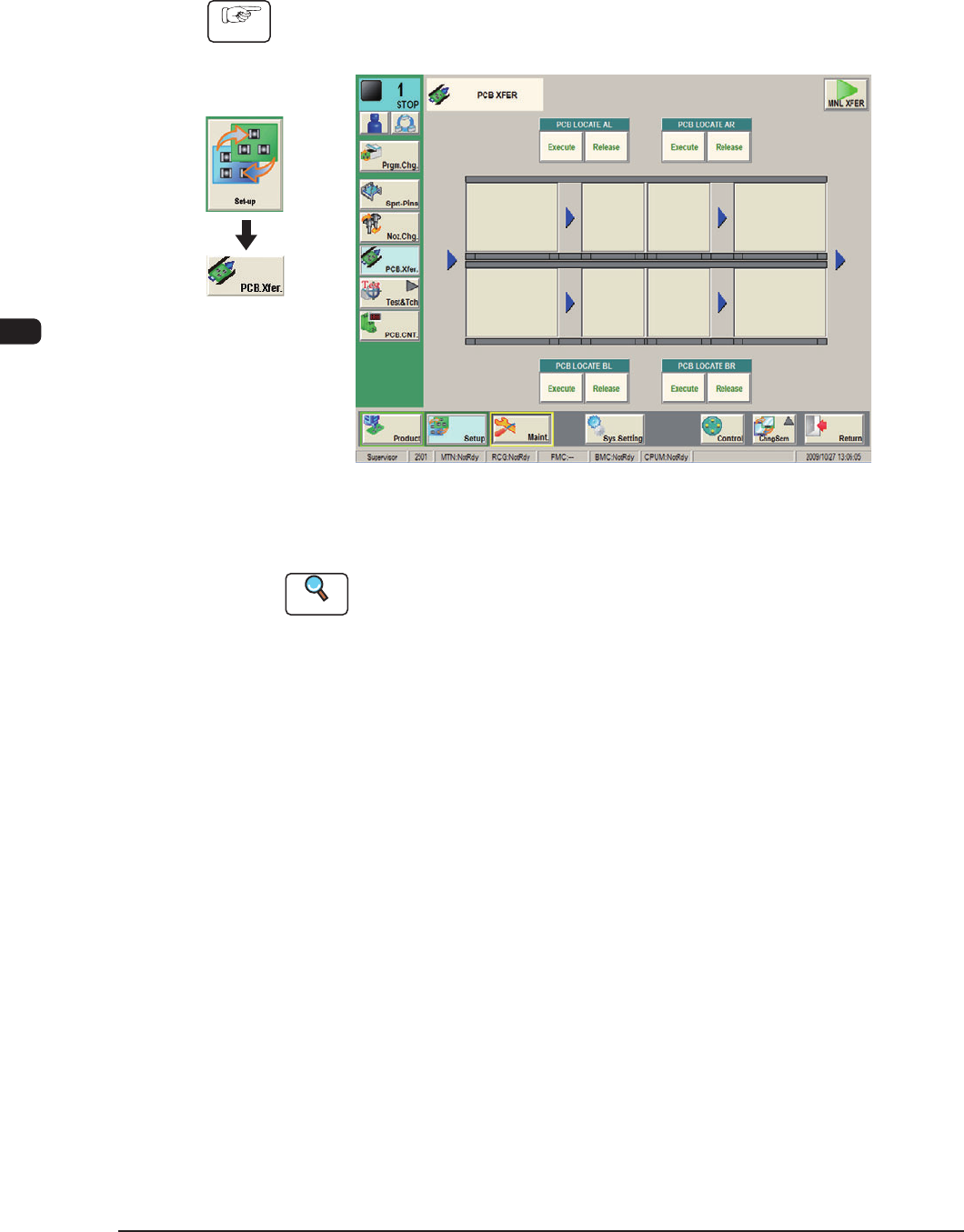

F1D17
(2) Input the PCB from the input machine.
Reference
When the PCB is to be input manually, refer to "3.1.1 PCB Manual Input
Procedure", in Chapter 3.
(3) Select a desired block button (expressed graphically) for "PCB LOCATE L".
In 10 seconds, press the [START] button on the operation panel to transfer
the PCB.
(4) Conrm that the PCB can be transferred normally and move smoothly
without falling down during the transfer.
(5) Press the [Execute] button (entitled "PCB LOCATE L").
In 10 seconds, press the [START] button on the operation panel.
The backup base moves up.
(6) Press the cover lock switch to turn off the lamp.
The transparent cover (door type) is unlocked.
Graphic
Development
