1OM-1610
3-12
1. Automatic Operation : Chap.3
0911-001
1.4 End of Automatic Operation
1.4.1 Stop of Automatic Operation
•
Stop of Automatic Operation by PCB Counter Stop Mode
When the "PCB Counter Stop Mode" function is used, the machine stops
automatically as soon as the counter reaches the specied number of PCBs to
be produced.
•
Stop of Automatic Operation with [Product STOP] Button
Press the [Product STOP] button in the status indication area (the upper area of
the operation window). The [Product STOP] button turns yellow.
After the machine has placed components on the PCB inside the machine, it
discharges the produced PCB and each device returns to its stationary position.
At this time, the [STAR
T] button on the operation panel extinguishes, the green
lamp of the light tower also goes out, and the automatic operation stops.

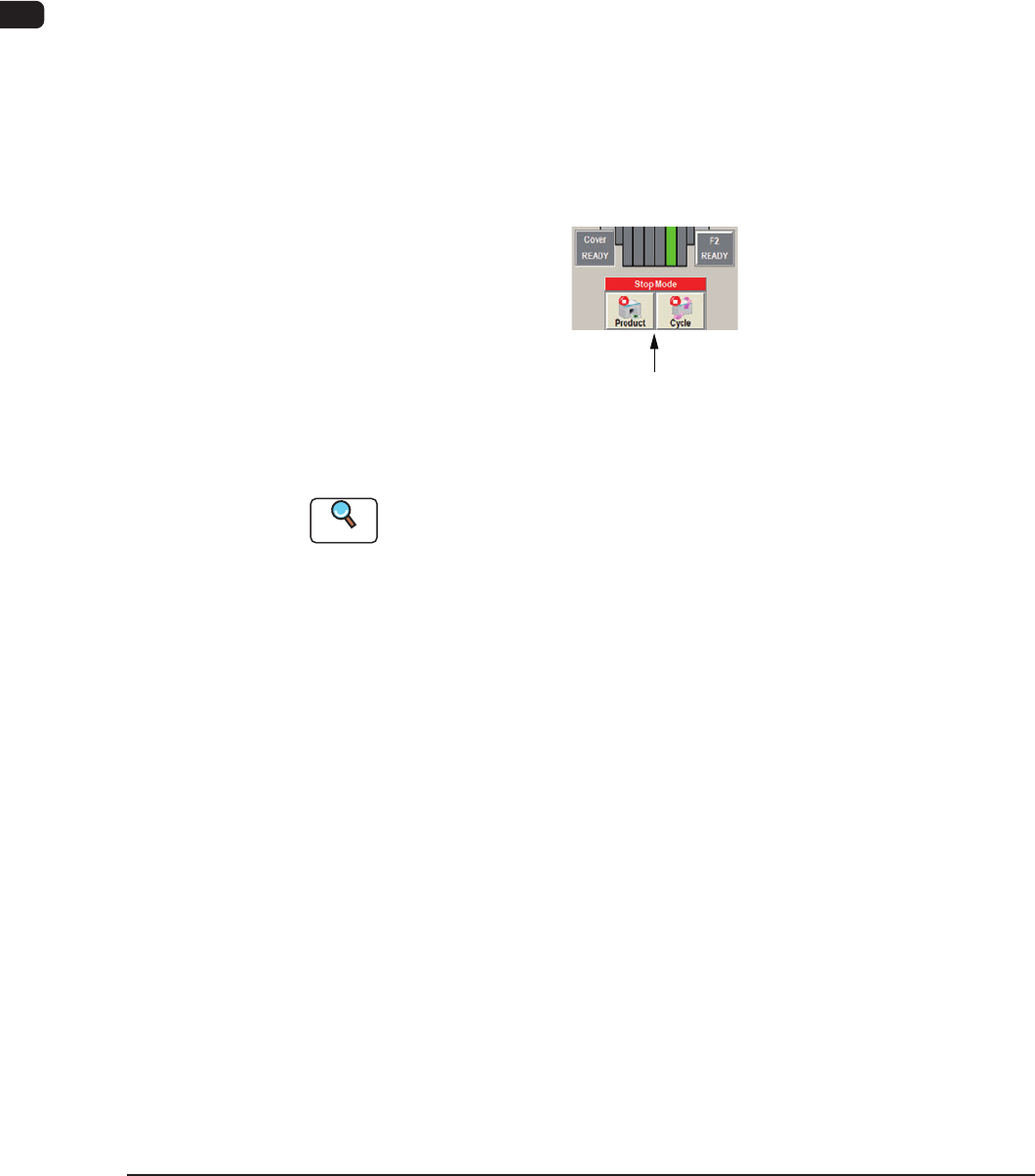

[Product STOP] Button
Status Indication Area (Upper Area of Operation Window)
F1C12
Reference
Refer to "4. Stop, Interruption, and Restart of Operation" for the other
ways to
stop the machine.
1OM-1610
3-13
1. Automatic Operation : Chap.3
1.4.2 Logout
When the operation window is closed, press the [Return] button in the common
menu. When the [Return] button is pressed, the operation window is closed and
the "TOP" window is returned.

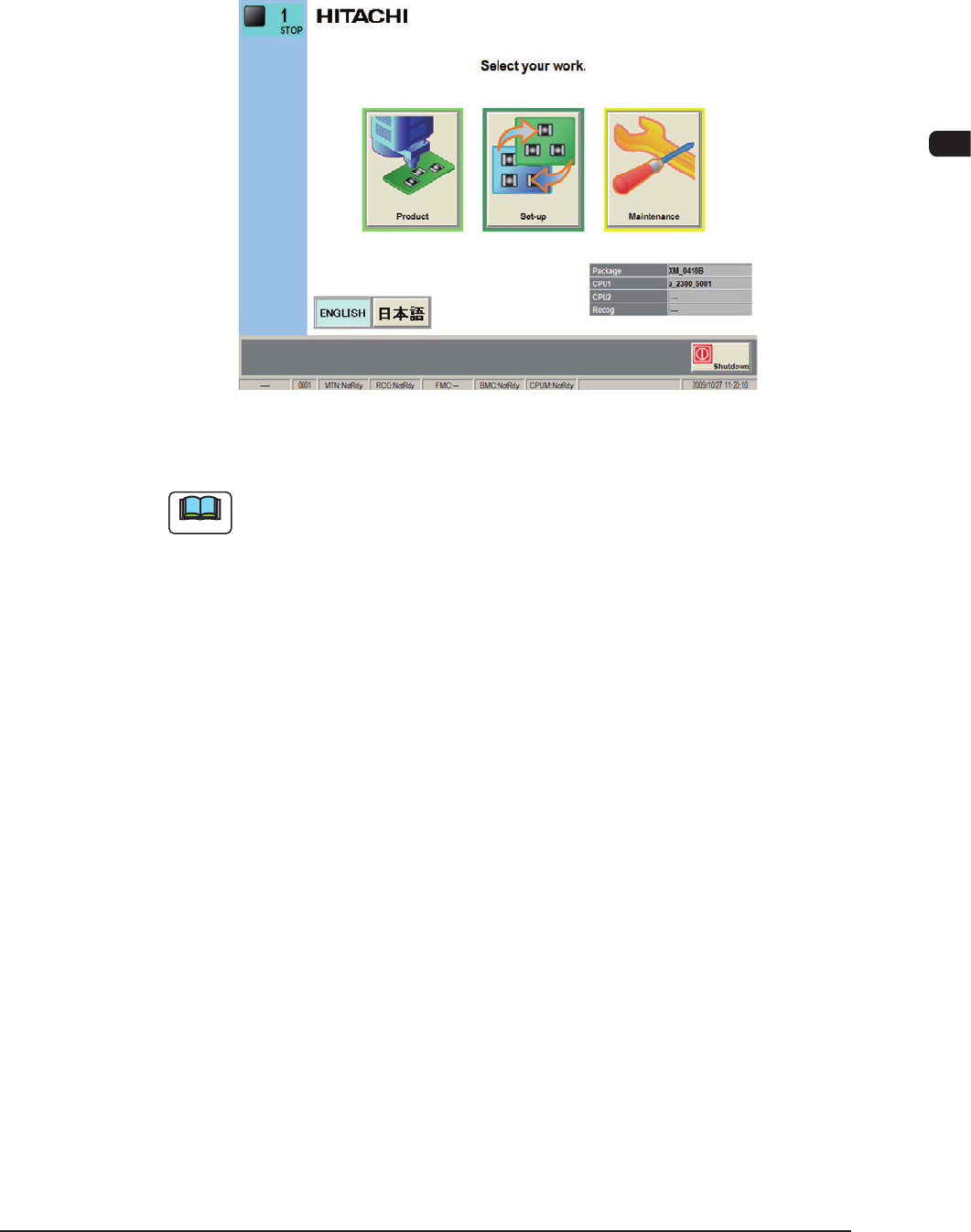

The "TOP" window opens.
F1C13
Note
(a) Whenever an edit window such as the "Pattern Program Data" window is
active, follow the speci ed steps to close the window before the [Return]
button is pressed.
(b) When the power to the machine is to be turned OFF after the logout, press
the [Shutdown] button.
Refer to "4.2 Interruption of Automatic Operation" in "Chapter 3" for
details.
0911-001
1OM-1610
3-14
2. Component Replenishment : Chap.3
2. Component Replenishment
There will be two cases of component supply replenishment during automatic
operation - Component Replenishment with Machine in Short of Components and
Intentional Component Replenishment.
2.1 Countermeasures against Component Shortage
When component shortage occurs during the automatic operation, the machine
issues an alarm as follows.
Light Tower
: The red lamp illuminates.
Auxiliary Lamps
: When a lamp ickers, it indicates that component shortage
has occurred in the block where the lamp belongs.
(Indication of Component Shortage)
Buzzer
: The buzzer sounds intermittently.
[START] Button on Operation Panel
: The button ickers.
In this case, follow the steps below to replenish the component supply and restart
the automatic operation.
When component shortage occurs, the "Comp.Reload" window opens.
As for the feeder base in short of components, the button representing the feeder
base turns red.
F1C14
