1OM-1610
4-12
3. Program Change Operation : Chap.4
0911-001
3.4 Preparation for Vacuum Nozzles
Set the vacuum nozzles registered in the placement head / nozzle data of the
pattern program (for the production model).
Note
(a) When the total number of vacuum nozzles exceeds "15" before or after a
program change operation, perform the "Nozzle Reset" operation and then
the "Nozzle Change (Attachment)" operation.
(b) The original nozzle stocker addresses (from which the vacuum nozzles are
attached) are stored in memory of the machine. Therefore, each vacuum
nozzle is stored back in the original stocker address.
Notice
•
Be sure to attach the vacuum nozzles correctly in place.
When a vacuum nozzle is attached incorrectly (not to the place
speciedintheplacementhead/nozzledata),itmaycause
undesirable interference.
•
Do not put any foreign object in the nozzle stocker section.
Otherwise, the machine will break down.
NOTICE
Do not bring any magnetized object such as a
magnet close to the vacuum nozzles.
Otherwise, an error may occur during component picks
and placement.
1OM-1610
4-13
3. Program Change Operation : Chap.4
3.4.1 Procedure of Vacuum Nozzles Replacement
Procedure

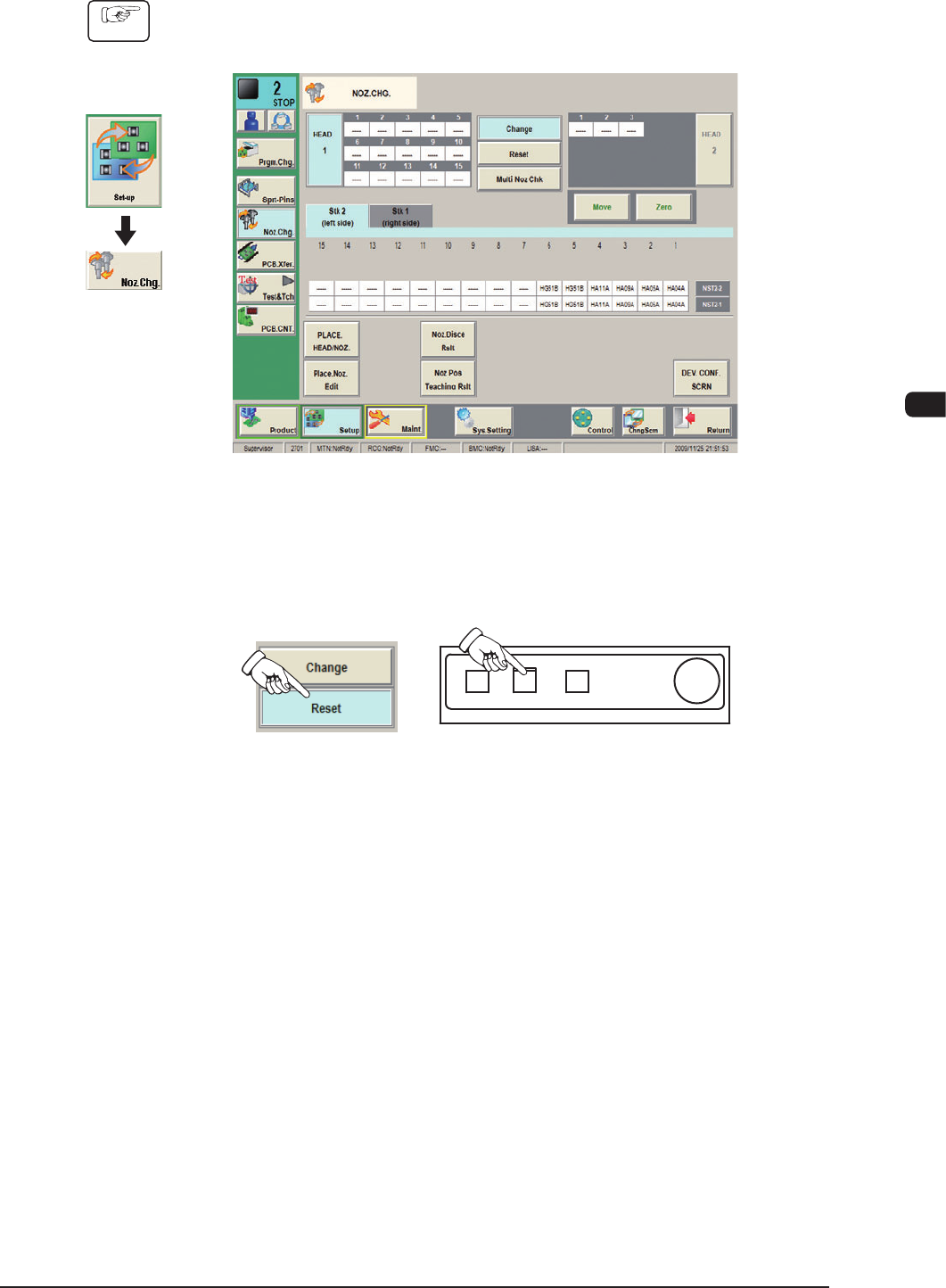

(1) Display the "NOZ.CHG" window using the following icon procedure.
F1D14
(2) Press the [Reset] button in the "NOZ.CHG." window.
In 10 seconds, press the [START] button to store the vacuum nozzles on the
placement heads in the nozzle stocker.
F1D15
Graphic
Development
0911-001
1OM-1610
4-14
3. Program Change Operation : Chap.4
(3) While holding the nozzle stocker by hand, push down the lever of the nozzle
stocker section and detach the nozzle stocker from the nozzle stocker section.
Stocker Section
Stocker Section
F1D16
(4) Slide the nozzle stocker shutter and detach all vacuum nozzles.
Notice
Whenever the vacuum nozzles are stored in or picked up from the
nozzle stocker, be sure to slide the nozzle stocker shutter.
Note
It is advisable that the vacuum nozzles required after a program change
operation be prepared beforehand in the nozzle stocker change unit
(accessory part) because the time for vacuum nozzle change operation can
be shortened.
